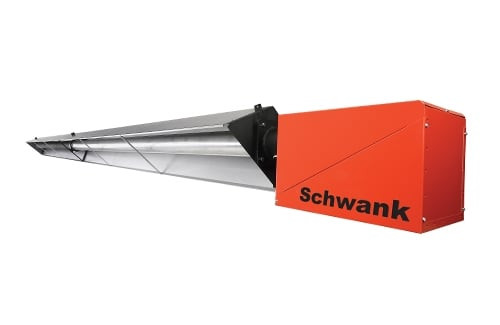

Schwank 60,000 BTU premierSchwank STS Burner Kit | Natural Gas | JS-S060-AN
The Schwank JS-S060-AN is the burner section of a premierSchwank STS infrared tube heater, rated at 60,000 BTU/h on natural gas. Schwank sells many of its tube heaters as separate burner and tube kits, which lets you build the exact tube length and layout the building needs, or replace the burner on an existing system. The burner assembly houses the gas valve, ignition, combustion blower and controls; it bolts to the first section of the radiant tube from a matching tube kit.
Single-stage firing runs at full rated input whenever the thermostat calls for heat. Pair the burner with a tube kit of the same series and an approved tube length for this input; the Schwank manual lists the allowed combinations.
Specifications
- Brand: Schwank
- Series: premierSchwank STS
- Model: JS-S060-AN
- Heating Input: 60,000 BTU/h
- Fuel Type: Natural Gas
- Stages: Single-Stage
- Electrical: 120V / 60Hz / 1Ph
- Warranty: 3 Years Components, 10 Years Burner Cup (Registration Required within 60 Days of Purchase)
Matching Tube Kits
Tube kits in the same series: TS-0020-JZ, TS-0030-JZ, TS-0040-JZ, TS-1010-JZ, TS-1020-JZ, TS-1030-JZ, TS-1040-JZ, TS-1420-JZ, TS-1430-JZ, TS-F030-JZ. Confirm the approved tube length for this input in the Schwank manual.
Installation Notes
- Installation by a qualified, licensed gas technician following the Schwank installation manual and local codes.
- Maintain the clearances to combustibles listed on the heater label.
- Vent and supply combustion air exactly as the manual specifies.
