Description

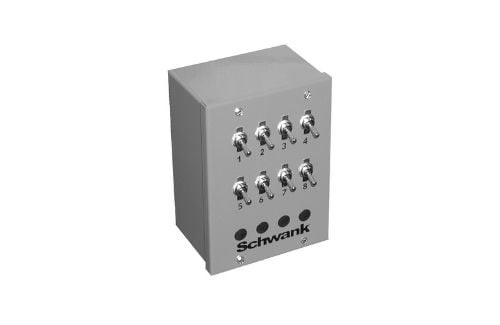

Schwank JM-0208-NT patioPANEL 8-Zone Patio Heater Control Panel
The Schwank JM-0208-NT patioPANEL PCP-8 is a centralized patio heater control panel designed to manage up to eight single-stage infrared patio heaters or heating zones. Ideal for restaurants, hotels, outdoor dining areas, commercial patios, and hospitality spaces, this Schwank control system provides convenient, individual ON/OFF operation of multiple gas-fired infrared heaters from one location.
Designed for ease of use and dependable operation, the JM-0208-NT allows staff and property managers to activate or deactivate individual heating zones as needed. This provides greater flexibility when managing outdoor comfort across different seating areas, helping businesses operate their patio heating systems more efficiently.
The Schwank PCP-8 operates using 24-volt controls and is designed for compatible Schwank patio heating systems, including applicable supremeSchwank and bistroSchwank infrared heater configurations.
Key Features and Benefits
-
8-Zone Heating Control: Manage up to eight individual single-stage patio heaters or heating zones from one central panel.
-
Individual ON/OFF Switches: Convenient manual control over separate patio heating areas.
-
Centralized Operation: Simplifies management of multiple infrared heaters in commercial and residential patio installations.
-
24V Control System: Designed for compatible low-voltage Schwank infrared patio heating equipment.
-
Flexible Zone Management: Operate heaters in occupied areas without unnecessarily activating every heating zone.
-
Commercial Applications: Ideal for restaurants, bars, resorts, hotels, outdoor dining spaces, and covered patio installations where compatible heaters are approved.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schwank |
| Model Number | JM-0208-NT |
| Product Series | patioPANEL |
| Control Panel Model | PCP-8 |
| Product Type | Patio Heater Control Panel |
| Maximum Control Capacity | 8 single-stage heaters or zones |
| Control Type | Individual ON/OFF switches |
| Control Voltage | 24 VAC |
| Application | Compatible infrared patio heating systems |
| Transformer | Required, sold separately |
Frequently Asked Questions
What does the Schwank JM-0208-NT control panel do?
The Schwank JM-0208-NT provides centralized ON/OFF control for up to eight compatible single-stage infrared patio heaters or heating zones, allowing convenient management of multiple outdoor heating areas.
Can the JM-0208-NT control eight heaters independently?
Yes. The PCP-8 features eight control positions. For optimal individual control, Schwank recommends assigning one heater to each switch.
Does the Schwank PCP-8 include a transformer?
No. The required 24V transformer is sold separately and must be appropriately sized for the number of connected heaters.
Is the JM-0208-NT suitable for restaurants and commercial patios?
Yes. This control panel is well suited for restaurants, hospitality properties, outdoor dining areas, and other installations using compatible Schwank infrared patio heating systems.
