Description
Product Summary

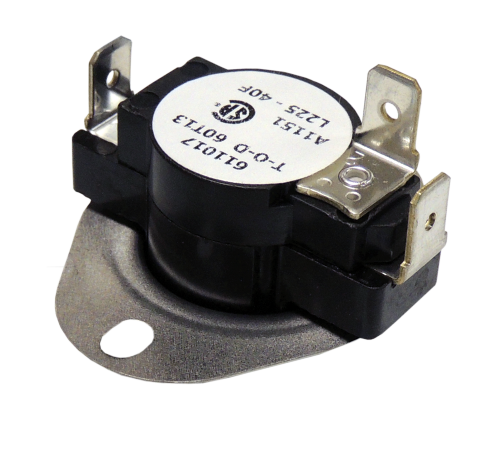

The Supco LD225 Thermostat 60T13 Style 611017 is a professional-grade replacement part from Supco (Sealed Unit Parts Co.), a trusted name in HVAC/R and appliance parts since 1945. The LD Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.
Limit switches and temperature controls (snap-disc thermostats) protect furnaces, air handlers, and appliances from overheating and control fans and heaters by temperature. This group includes automatic and manual-reset limits, rollout switches, thermal cutoffs, fan controls, plenum limits, and defrost terminators. Always replace with the same open/close temperature ratings and mounting style.
Key Features
- 1/4" quick disconnect terminals
- Close when temperature differential is reached
- Open on rise
- SPDT thermostats
- Welded construction for integrity of current-carrying components
- WARNING: Prop 65 info
Specifications
| Brand | Supco |
|---|---|
| Part Number | LD225 |
| Part Type | Limit Switch / Temperature Control |
| °Differential | 40° |
| Open ( °F) | 225 ° |
| Close ( °F) | 185 ° |
| FLA @ 120VAC | 10A |
| FLA @ 240VAC | 5A |
| LRA @ 120VAC | 60A |
| LRA @ 240VAC | 30A |
| Pilot Duty @ 120VAC / 240VAC | 125 VA |
| RLA @ 120VAC / 240VAC | 25A |
| Agency | UL®, CSA® |
White Paper
- Supco LD225 Product Specification Sheet (PDF)
- Supco LD225 Installation & Operation Manual (PDF)
- Supco LD225 Application Sheet (PDF)
What's Included
- (1) Supco LD225 Thermostat 60T13 Style 611017
Safety: Always disconnect power and follow lockout/tagout procedures before servicing electrical components. Installation should be performed by a qualified technician.
