Description
Product Summary

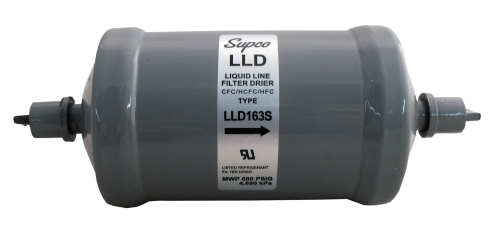

The Supco LLD163S Liquid Line Drier is a professional-grade replacement part from Supco (Sealed Unit Parts Co.), a trusted name in HVAC/R and appliance parts since 1945. Solid core liquid line filter drier, ideal for use with CFC, HCFC and HFC refrigerants. This 16 cubic inch unit has a 3/8 inch ODF type connection.
Filter driers and sight glasses keep refrigerant circuits clean and dry. Driers capture moisture, acid, and debris that damage compressors and TXVs, and should be replaced any time the system is opened. Sight glasses with moisture indicators let you confirm charge and system dryness at a glance. Match the refrigerant, flow capacity, and line size.
Key Features
- Compatible with all refrigerants (including R290)
- Copeland® approved for POE oils
- Corrosions resistant epoxy powder paint finish
- High acid and moisture removal
- Shock resistant steel construction
- Solid copper fittings
Specifications
| Brand | Supco |
|---|---|
| Part Number | LLD163S |
| Part Type | Filter Drier / Sight Glass |
| Desiccant Blend | Activated alumina with molecular sieve |
| Filtration | 40 microns |
| Maximum working pressure | 600 psig |
| Connection Size | ⅜" |
| Connection Type | ODF |
| Dimensions (End to End) | 6 7/32" |
| Dimensions (Top to Bottom) | 2½" |
| Tonnage | 1 to 5 Tons |
Cross Reference
The Supco LLD163S is a direct replacement for the following OEM and competitor part numbers. Always verify ratings and fit against the original part before installing.
| Replaces Part # | Manufacturer | Description |
|---|---|---|
| 523631 | Wilmar® | |
| WAHA163S | Virginia Chemical® | |
| 20119 | Mars® | |
| 068163 | Century® | |
| AH-163S | Virginia Chemical® | |
| C-163S | Sporlan® | |
| SD-163 | Mueller® | |
| EK-163S | Carrier® | |
| H163-S | Henry® |
White Paper
What's Included
- (1) Supco LLD163S Liquid Line Drier
Safety: Always disconnect power and follow lockout/tagout procedures before servicing electrical components. Installation should be performed by a qualified technician.
