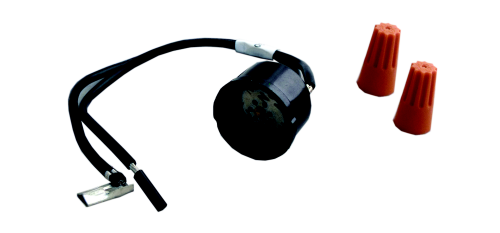

Name: Supco OV36 Overload Universal Motor Protector
Brand: Supco
SKU: OV36
Price: 14.71 USD
Availability: InStock

Supco OV36 Overload Universal Motor Protector

Description

Product Summary

The Supco OV36 Overload Universal Motor Protector is a professional-grade replacement part from Supco (Sealed Unit Parts Co.), a trusted name in HVAC/R and appliance parts since 1945. OV Series 3 / 4" Universal Replacement Motor Protectors.

Overloads and motor protectors shut a compressor or motor down before excessive current or heat can damage the windings, then reset once the motor cools. Replacing a failed overload with the correct amp and temperature rating restores protection and prevents repeat failures.

Key Features

Built in temperature activated disc opens and closes the motor overload protector's contacts
Protects compressor or motor from excessive high heat situations
UL® & CSA Approved
Universal replacement overload
WARNING: Prop 65 info

Specifications

Brand	Supco
Part Number	OV36
Part Type	Overload / Motor Protector
Locked rotor amps	16.0-18.0
hp @ 120 VAC	1/10 thru 1/4
hp @ 240 VAC	1/5 thru 1/3

Cross Reference

The Supco OV36 is a direct replacement for the following OEM and competitor part numbers. Always verify ratings and fit against the original part before installing.

Replaces Part #	Manufacturer	Description
MP357	Gemline®	Overload
35009	Mars®	Overload

What's Included

(1) Supco OV36 Overload Universal Motor Protector

Safety: Always disconnect power and follow lockout/tagout procedures before servicing electrical components. Installation should be performed by a qualified technician.
