Description
Product Summary

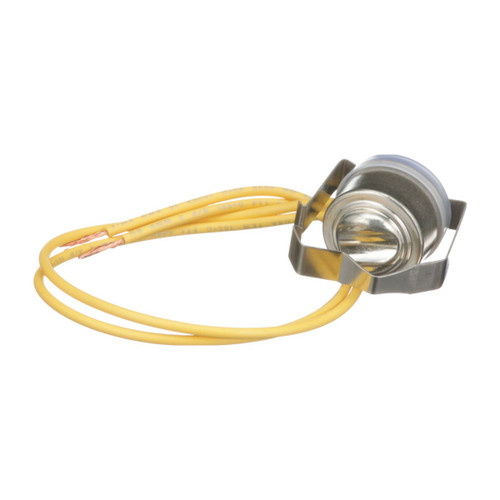

The Supco SFPC Freeze Protection Control is a professional-grade replacement part from Supco (Sealed Unit Parts Co.), a trusted name in HVAC/R and appliance parts since 1945. Protects air conditioning evaporator coils from freezing.
Limit switches and temperature controls (snap-disc thermostats) protect furnaces, air handlers, and appliances from overheating and control fans and heaters by temperature. This group includes automatic and manual-reset limits, rollout switches, thermal cutoffs, fan controls, plenum limits, and defrost terminators. Always replace with the same open/close temperature ratings and mounting style.
Key Features
- 12" leads
- Fits up to ⅞" O.D. tubing
- Open 35°, Close 50°
- Rated 10A@120V, 5A @ 240V
- Replaces: Trol-A-Temp® FPC
- See Cross Reference tab for additional numbers
- WARNING: Prop 65 info
Specifications
| Brand | Supco |
|---|---|
| Part Number | SFPC |
| Part Type | Limit Switch / Temperature Control |
| Opening Temperature | 35°F |
| Closing Temperature | 50°F |
| Differential | 15°F |
| Switching | SPST |
| Amps @ 120V | 10A |
| Amps @ 250V | 5A |
| Full Load Amps | 5.8A |
| Locked Rotor Amps | 34.8A |
Cross Reference
The Supco SFPC is a direct replacement for the following OEM and competitor part numbers. Always verify ratings and fit against the original part before installing.
| Replaces Part # | Manufacturer | Description |
|---|---|---|
| 5303279149 | Electrolux® |
White Paper
What's Included
- (1) Supco SFPC Freeze Protection Control
Safety: Always disconnect power and follow lockout/tagout procedures before servicing electrical components. Installation should be performed by a qualified technician.
