Description
Product Summary
The Supco SHF110DC Mobile Home Furnace Thermostat is a professional-grade replacement part from Supco (Sealed Unit Parts Co.), a trusted name in HVAC/R and appliance parts since 1945. The SHF series of bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.
Limit switches and temperature controls (snap-disc thermostats) protect furnaces, air handlers, and appliances from overheating and control fans and heaters by temperature. This group includes automatic and manual-reset limits, rollout switches, thermal cutoffs, fan controls, plenum limits, and defrost terminators. Always replace with the same open/close temperature ratings and mounting style.
Key Features
- CSA approved
- Economical
- Fan control
- Includes adapter flange plate
- UL® recognized
- WARNING: Prop 65 info
Specifications
| Brand | Supco |
|---|---|
| Part Number | SHF110DC |
| Part Type | Limit Switch / Temperature Control |
| Cut out (°F) | 90°F |
| Cut in (°F) | 110°F |
| Agency | UL®, CSA® |
| FLA @ 120VAC | 10A |
| FLA @ 240VAC | 5A |
| LRA @ 120VAC | 60A |
| LRA @ 240VAC | 30A |
| Pilot Duty @ 120VAC / 240VAC | 125 VA |
| RLA @ 120VAC / 240VAC | 25A |
| Agency | UL®, CSA® |
White Paper
What's Included

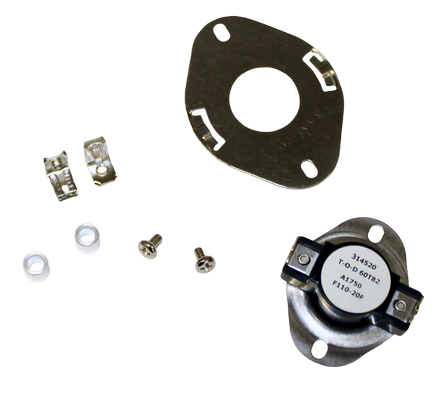

- (1) Supco SHF110DC Mobile Home Furnace Thermostat
Safety: Always disconnect power and follow lockout/tagout procedures before servicing electrical components. Installation should be performed by a qualified technician.
