Description
Product Summary

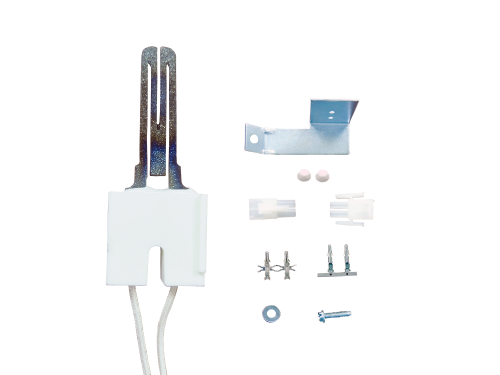

The Supco SSN4000 Furnace Igniter - Universal is a professional-grade replacement part from Supco (Sealed Unit Parts Co.), a trusted name in HVAC/R and appliance parts since 1945. Universal mini flat silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters.
Hot surface igniters and flame sensors are the heart of modern gas furnace ignition. A cracked or weak igniter causes no-heat calls and lockouts, while a dirty or failing flame sensor causes the burners to shut down seconds after lighting. Match the igniter material (silicon carbide or silicon nitride), voltage, and mounting style to the original.
Key Features
- 18 gauge copper high temperature fiberglass insulated lead wires
- Exact replacement hot surface igniter
- Faster time to temperature response
- Higher resistance to oxidation
- Longer usable life
- Lower power consumption
- More robust in transit
- Stronger more durable design
- Supco® mini igniters offer an efficient , stronger, reliable hot surface Silicon nitride design
- Superior gas lighting ability
Specifications
| Brand | Supco |
|---|---|
| Part Number | SSN4000 |
| Part Type | Igniter / Flame Sensor |
| Time to Temperature | <17 seconds @ 120 +/- 1.0 VAC |
| Resistance | 34 - 64 Ohms |
| Minimum Temperature | 2192°F / 1200°C @ 98 Volts |
| Maximum Temperature | 2732°F / 1500°C @ 132 Volts |
| Steady State Current | 0.8 to 2.0 Amps Maximum @ 120 Volts |
| Igniter Material | Silicon Nitride |
Cross Reference
The Supco SSN4000 is a direct replacement for the following OEM and competitor part numbers. Always verify ratings and fit against the original part before installing.
| Replaces Part # | Manufacturer | Description |
|---|---|---|
| 17035002 | Amana® | Igniter |
| 383322B001 | Armstrong Air® | Igniter |
| 661926 | Barnett Brass® | Igniter |
| 626000025 | Giant PV® | Igniter |
| FC067 | Giant PV® | Igniter |
| B11725-06 | Goodman® | Igniter |
| Q3200U1004 | Honeywell® | Igniter |
| 632245-0 | Nordyne®/ Tappan®/ Frigidaire®/ Philco®/ Intertherm®/ Miller® | Igniter |
| 50015 | Raypack® | Igniter |
| 62-212868-82 | Rheem® | Igniter |
| 10755002 | Amana® | Igniter |
| B138196P01 | Amana® | Igniter |
| B144676P01 | Amana® | Igniter |
| B144676P02 | Amana® | Igniter |
| B340039P01 | Amana® | Igniter |
| 201W | American Road Equipment® | Igniter |
| IGN0030 | American Standard® | Igniter |
| 1096048 | Arcoaire® | Igniter |
| 1380680 | Arcoaire® | Igniter |
| 661924 | Barnett Brass® | Igniter |
| 661927 | Barnett Brass® | Igniter |
| 661928 | Barnett Brass® | Igniter |
| LH33ZS001A | Carrier® | Igniter |
| LH33ZS002 | Carrier® | Igniter |
| LH33ZS003 | Carrier® | Igniter |
| LH33ZS004 | Carrier® | Igniter |
| C238 | Clare Bros® | Igniter |
| C238-1 | Clare Bros® | Igniter |
| C242 | Clare Bros® | Igniter |
| 1474-051 | Coleman® | Igniter |
| 1474-052 | Coleman® | Igniter |
| 201D | Detroit® /Brant Radiant® | Igniter |
| 20834 | DMO® | Igniter |
| 41-802N | Robertshaw®/ Uniline® | Igniter |
| 26789 | DMO® | Igniter |
| 271W | Dornback Furnace® | Igniter |
| 1009980 | Snyder General® | Igniter |
| 20015201 | Ducane® | Igniter |
| 10399 | Enerco Tech® | Igniter |
| 1148145 | Snyder General® | Igniter |
| 1474-051 | Evcon® | Igniter |
| 1474-052 | Evcon® | Igniter |
| 62374 | EZ-Flow® | Igniter |
| WG37X11 | GE® /Hot Point® | Igniter |
| WG37X34 | GE® /Hot Point® | Igniter |
| 526000125 | Giant PV® | Igniter |
| 10401009 | Goodman® | Igniter |
| B1193939 | Goodman® | Igniter |
| B1401009 | Goodman® | Igniter |
| ZCO-350 | Grimsby Stove® | Igniter |
| 50018 | HB Smith® | Igniter |
| 1096048 | Heil Quaker® /ICP® | Igniter |
| 9050 | Hupp Ind.® | Igniter |
| HSIURK120V | Igniters Direct® | Igniter |
| 3260618 | Integra® | Igniter |
| 6905032 | Integra® | Igniter |
| 71082 | John Woods® /GSW PV® | Igniter |
| FC055 | Surface Igniter® | Igniter |
| 86483 | John Woods® /GSW PV® | Igniter |
| L37-698 | Johnstone® | Igniter |
Ideal Applications
- Gas furnaces
- Boilers and gas appliances with hot surface ignition
White Paper
What's Included
- (1) Supco SSN4000 Furnace Igniter - Universal
Safety: Always disconnect power and follow lockout/tagout procedures before servicing electrical components. Installation should be performed by a qualified technician.
