TradePro 1/5-1/2 HP Condenser Fan Motor - 208-230V, 1075 RPM, 1-Speed, Reversible | TP-C50-MHP2

TradePro

5 Star RatingLeave a review

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
TP-C50-MHP2
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
TradePro 1/5-1/2 HP Condenser Fan Motor - 208-230V, 1075 RPM, 1-Speed, Reversible – TP-C50-MHP2
UPC:
816075029743
Condition:
New
Width:
6.00 (in)
Height:
6.00 (in)
Depth:
6.00 (in)

Questions about TradePro 1/5-1/2 HP Condenser Fan Motor - 208-230V, 1075 RPM, 1-Speed, Reversible | TP-C50-MHP2?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$268.89
34 in stock • Ships in 1-2 Business Days
Overview

TradePro 1/5-1/2 HP Condenser Fan Motor - 208-230V, 1075 RPM, 1-Speed, Reversible | TP-C50-MHP2

TradePro 1/5-1/2 HP Condenser Fan Motor - 208-230V, 1075 RPM, 1-Speed, Reversible – TP-C50-MHP2
Product details

Description

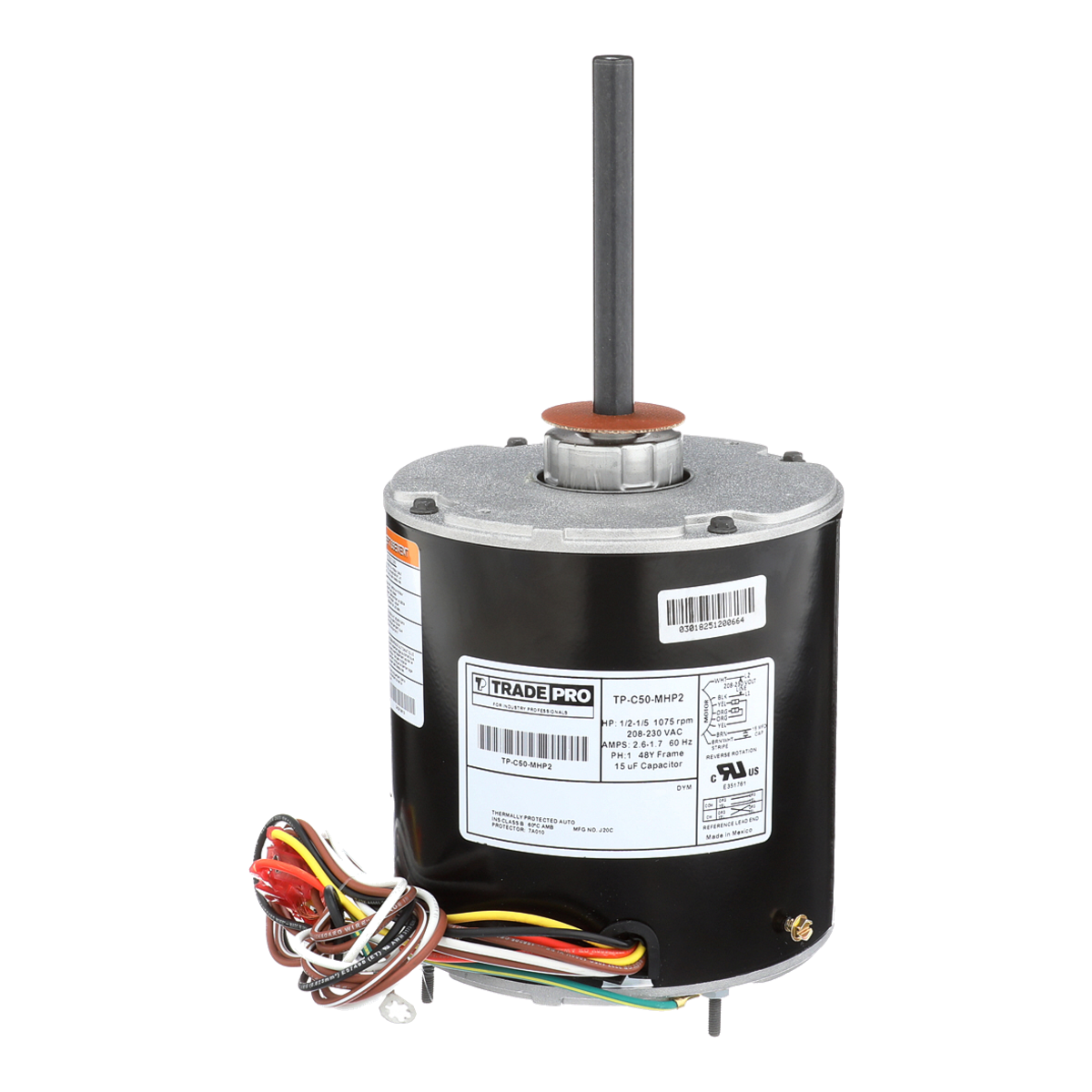

TradePro 1/5-1/2 HP Condenser Fan Motor - 208-230V, 1075 RPM, 1-Speed, Reversible

The TradePro TP-C50-MHP2 is a 1/5-1/2 HP condenser fan motor for 208-230 volt single-phase power, rated at 1075 RPM with 1 speed.

TradePro motors are built as universal aftermarket replacements, so one motor covers many brands of condensers, furnaces and air handlers.

It uses a 48Y frame, self aligning (sab) bearings, a totally enclosed air over (teao) enclosure and a 0.5" (1/2") shaft that is 5" long. Rotation is reversible as viewed from the lead end. Full load current is 2.6 amps. It runs with a 15 MFD run capacitor.

Before you order, match the horsepower, voltage, RPM, rotation and shaft size to the motor you are replacing, and replace the run capacitor at the same time if the old one is weak.

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
TradePro
Width:
6.00 (in)
Height:
6.00 (in)
Depth:
6.00 (in)
Weight:
17.50 LBS
Product Category:
HVAC Parts & Supplies
Product Type:
Condenser Fan Motor
Motor Type:
PSC
Horsepower:
1/5-1/2 HP
Voltage:
208/230V
Electrical Phase:
1 Phase
Hertz:
60Hz
RPM:
1075
Speeds:
1
Rotation:
Reversible
Frame Size:
48Y
Shaft Diameter:
1/2"
Shaft Length:
5"
Bearing Type:
Self Aligning (SAB)
Enclosure:
Totally Enclosed Air Over (TEAO)
Full Load Amps:
2.6
Capacitor (MFD):
15
Service Factor:
1
Insulation Class:
B
Duty:
(S1) Continuous Running Duty
Country of Origin:
MEX
Manufacturer Part Number:
TP-C50-MHP2
Part Type:
Condenser Fan Motor
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
Covered by the Part Manufacturer Warranty
Frequently asked questions
What warranty comes with the TP-C50-MHP2?
Covered by the Part Manufacturer Warranty
Who makes the TP-C50-MHP2?
The TP-C50-MHP2 is made by TradePro.
