Description

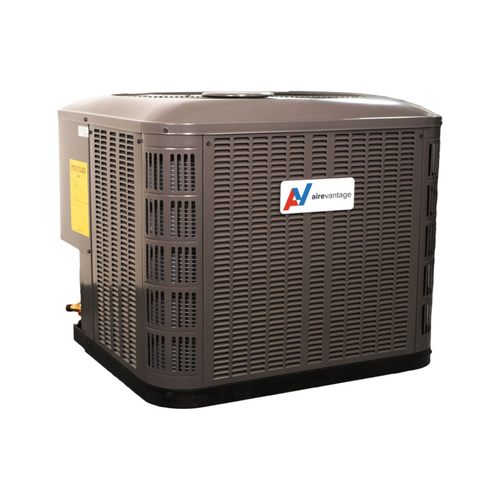

AireVantage USH4BE5M1SP30K is a high-efficiency split-system heat pump condenser built for dependable comfort in both seasons. It’s designed with a Copeland Scroll compressor, single-stage operation, and service-access panels that keep maintenance straightforward. This is the type of outdoor unit chosen when you want real heat pump heating capability and efficient cooling without stepping into complicated staging or inverter controls.
Matched with the B65BMMX30K-B air handler, the system is listed at 14.3 SEER2 and 7.5 HSPF2 with 29,000 BTUH cooling capacity and 29,000 BTUH heating capacity at 47°F (17,500 BTUH at 17°F). That combination matters because it supports comfort when temperatures drop, not just mild-weather heat.
The durability details are built in: a powder-coated galvanized steel cabinet tested to 950 hours salt spray per ASTM B117, and all-aluminum coils for corrosion resistance. Protective switches (high and low pressure) with auto-reset, a five-minute restart time delay, and a composite base pan designed to absorb sound help the unit stay stable through demanding run seasons.
Key Features
-
Heat pump condenser, single-stage: Simple, consistent heating and cooling operation
-
Efficiency (matched system listing): 14.3 SEER2 and 7.5 HSPF2 with B65BMMX30K-B (AHRI combinations vary)
-
Capacity (matched system listing): 29,000 BTUH cooling; 29,000 BTUH heating at 47°F; 17,500 BTUH heating at 17°F
-
Refrigerant: R-454B (model code “5”)
-
Compressor: Copeland Scroll compressor (standard equipment)
-
Cabinet durability: Powder-coated galvanized steel, 950-hour salt spray per ASTM B117
-
Coil: All-aluminum coil construction for corrosion resistance
-
System protection: High-pressure and low-pressure switches with auto-reset; five-minute restart delay
-
Sound and structure: Composite base pan designed to absorb sound and resist corrosion
-
Serviceability: Easy side access to compressor and controls; removable top grille
-
Electrical: 208/230 V, 1-phase, 60 Hz (model voltage code “K”)
