Description

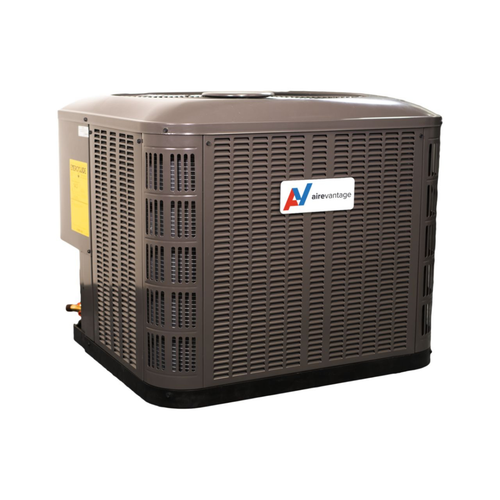

AireVantage USH4BE5M1SP24K is a high-efficiency split-system heat pump condenser built to deliver both cooling and true heat pump heating without overcomplicating the system. It uses a Copeland Scroll compressor and a single-stage design that favors stable comfort and contractor-friendly service access. If you’re replacing an older outdoor unit that’s noisy, inconsistent, or worn down, this model is positioned as a clean reset: efficient, protected, and built for everyday use.
When matched with the B65BMMX24K-A air handler, the system is listed at 14.3 SEER2 and 7.5 HSPF2, with 23,400 BTUH cooling capacity and 23,000 BTUH heating capacity at 47°F (13,800 BTUH at 17°F). That gives you solid heating capability for colder mornings while still keeping cooling efficiency where it needs to be for long summers.
The construction and safeguards are not afterthoughts. The cabinet is powder-coated galvanized steel tested to 950 hours salt spray per ASTM B117, and the unit uses all-aluminum coils for corrosion resistance. High- and low-pressure switches with auto-reset, a five-minute restart delay, and a composite base pan designed to absorb sound all support longer compressor life and fewer nuisance service calls.
Key Features
-
Heat pump condenser, single-stage: Reliable heating and cooling with a simple operating profile
-
Efficiency (matched system listing): 14.3 SEER2 and 7.5 HSPF2 with B65BMMX24K-A (AHRI combinations vary)
-
Capacity (matched system listing): 23,400 BTUH cooling; 23,000 BTUH heating at 47°F; 13,800 BTUH heating at 17°F
-
Refrigerant: R-454B (model code “5”)
-
Compressor: Copeland Scroll compressor (standard equipment)
-
Cabinet durability: Powder-coated galvanized steel, 950-hour salt spray per ASTM B117
-
Coil: All-aluminum coil construction for corrosion resistance
-
Built-in protection: High-pressure and low-pressure switches with auto-reset; five-minute restart delay
-
Sound and durability: Composite base pan designed to absorb sound and resist corrosion
-
Serviceability: Removable top grille; easy side access to compressor and controls
-
Electrical: 208/230 V, 1-phase, 60 Hz (model voltage code “K”)
