Description

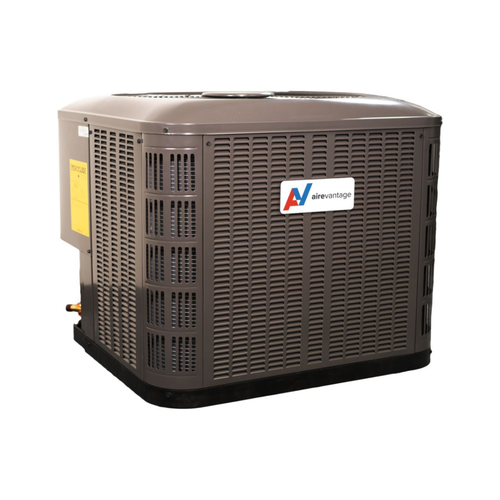

The AireVantage 2 Ton 14.3 SEER2 Heat Pump Air Conditioner Split System with R-454B Refrigerant (USH4BE5M1SP24K-B65BMMX24K-A) is a matched residential heating and cooling system combining the USH4BE5M1SP24K outdoor heat pump condenser with the B65BMMX24K-A multi-position air handler. The certified combination provides 23,400 BTU cooling capacity, 14.3 SEER2, 11.0 EER2, and 7.5 HSPF2.
The system uses R-454B refrigerant and features a Copeland Scroll compressor, PSC blower motor, microchannel coil, and factory-installed TXV/TEV metering device. The air handler supports multiple installation orientations, providing flexibility for compatible residential applications.
Key Features
- 2 Ton Capacity – Designed for compatible residential heating and cooling applications
- 14.3 SEER2 Efficiency – Provides efficient seasonal cooling performance
- R-454B Refrigerant – Uses lower-GWP A2L refrigerant technology
- Heat Pump Operation – Provides both heating and cooling
- Copeland Scroll Compressor – Designed for dependable outdoor-unit operation
- Multi-Position Air Handler – Supports horizontal, upflow, downflow, and vertical applications
- PSC Blower Motor & TXV/TEV – Provides flexible airflow and controlled refrigerant metering
Product Specifications
- Brand: AireVantage
- Outdoor Model: USH4BE5M1SP24K
- Indoor Model: B65BMMX24K-A
- System Type: Heat Pump Split System
- Nominal Capacity: 2 Ton / 24,000 BTU
- Cooling Capacity: 23,400 BTU
- Efficiency: 14.3 SEER2 / 11.0 EER2
- Heating Efficiency: 7.5 HSPF2
- Refrigerant: R-454B
Benefits
- Provides heating and cooling in one split-system configuration
- Delivers 14.3 SEER2 seasonal cooling efficiency
- Uses R-454B refrigerant technology
- Offers flexible multi-position air-handler installation
- Provides 23,400 BTU of listed cooling capacity
- Uses a Copeland Scroll compressor
- Designed as a matched AireVantage system
Compatibility & Installation
The USH4BE5M1SP24K-B65BMMX24K-A is a published matched AireVantage heat pump system. The available matchup data lists 23,400 BTU cooling capacity, 11.0 EER2, 14.3 SEER2, and 7.5 HSPF2.
The B65BMMX24K-A is a 2-ton multi-position air handler with a PSC blower motor, 700–1,010 CFM airflow range, R-454B refrigerant compatibility, and TXV/TEV metering. It supports compatible electric heat kits from 5–8kW.
Installation considerations:
- Verify proper system sizing for the application
- Confirm the outdoor unit and air handler are the intended matched combination
- Verify electrical and refrigerant-line requirements
- Follow applicable R-454B/A2L installation and safety requirements
- Follow manufacturer installation instructions and local codes
- Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What size is this AireVantage system?
It is a 2-ton heat pump split system with a nominal 24,000 BTU capacity and a listed cooling capacity of 23,400 BTU.
What is the SEER2 rating?
The matched system is rated at 14.3 SEER2.
What refrigerant does it use?
The system uses R-454B refrigerant.
Does this system provide heating?
Yes. It is a heat pump system designed for both heating and cooling and has a published 7.5 HSPF2 rating.
What indoor air handler is included?
The matched indoor unit is the B65BMMX24K-A 2-ton multi-position air handler with a PSC blower motor.
