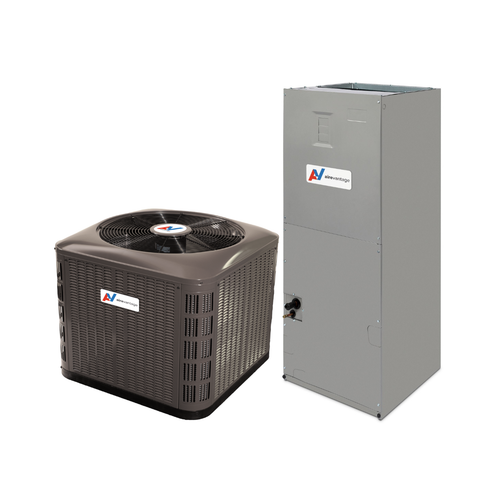

The AireVantage 3.5 Ton 14.3 SEER2 Air Conditioner Split System with R-454B Refrigerant (USA4BE5M1SN42K-B65BMMX42K-C) is a matched residential split-system air conditioner designed for reliable cooling performance. The system combines the USA4BE5M1SN42K outdoor condenser with the B65BMMX42K-C multi-position air handler. The published matched-system data rates this combination at 41,000 BTU cooling capacity at 95°F, 11.7 EER2, and 14.3 SEER2.

The outdoor condenser uses a Copeland Scroll compressor, PSC condenser fan motor, all-aluminum coil, high-pressure switch, and included liquid-line filter drier. The indoor air handler features a multi-position design, three-speed PSC blower motor, microchannel coil, and R-454B TXV/TEV metering device.

Key Features

• 3.5 Ton Capacity – Designed for residential cooling applications
• 14.3 SEER2 Efficiency – Provides efficient seasonal cooling performance
• R-454B Refrigerant – Uses lower-GWP A2L refrigerant technology
• 41,000 BTU Cooling Capacity at 95°F – Published matched-system cooling capacity
• Copeland Scroll Compressor – Designed for reliable compressor operation
• Multi-Position Air Handler – Supports flexible installation configurations
• Three-Speed PSC Blower Motor – Provides airflow flexibility
• Microchannel Indoor Coil – Provides an efficient, compact coil design

Product Specifications

• Brand: AireVantage
• Outdoor Model: USA4BE5M1SN42K
• Indoor Model: B65BMMX42K-C
• Product Type: Air Conditioner Split System
• Nominal Capacity: 3.5 Ton
• SEER2: 14.3
• EER2: 11.7
• Voltage: 208–230V
• Phase: Single Phase
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Maximum Piping Length: 150 ft
• Indoor Air Handler Weight: 145.5 lb

Benefits

• Provides reliable cooling for residential applications
• Offers 3.5-ton nominal cooling capacity
• Delivers 14.3 SEER2 efficiency in the listed matched configuration
• Uses R-454B refrigerant technology
• Combines a scroll-compressor condenser with a compatible multi-position air handler
• Provides flexible indoor installation options
• Offers three blower-speed settings for airflow flexibility
• Includes system components designed for serviceability and protection

Compatibility & Installation

The USA4BE5M1SN42K-B65BMMX42K-C is a published AireVantage matched system. Gemaire lists the combination at 41,000 BTU cooling capacity at 95°F, 11.7 EER2, and 14.3 SEER2.

The B65BMMX42K-C air handler is designed for multi-position applications and supports upflow, downflow, horizontal, and vertical configurations.

Installation considerations:

• Verify the 3.5-ton system size is appropriate for the application
• Confirm the outdoor condenser and indoor air handler are the intended matched combination
• Verify electrical and refrigerant-line requirements
• Follow applicable R-454B/A2L installation and safety requirements
• Confirm proper airflow and ductwork configuration
• Follow manufacturer installation instructions and local codes
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What size is the AireVantage USA4BE5M1SN42K-B65BMMX42K-C?
It is a 3.5-ton split-system air conditioner with a nominal 42,000 BTU capacity. The published matched-system capacity is 41,000 BTU at 95°F.

What is the SEER2 rating?
The matched system is rated at 14.3 SEER2.

What refrigerant does this system use?
The system uses R-454B refrigerant.

Does this system provide heating?
No. The USA4BE5M1SN42K is a straight-cool air conditioner condenser, so this matched system is designed for cooling.

What indoor air handler is included?
The matched indoor unit is the B65BMMX42K-C 3.5-ton multi-position air handler.
