Comfortstar BAR10 3.5 Ton 14.3 SEER2 Air Conditioner Split System with Multi-Position Air Handler with ECM Motor R32 | BAR10-42-15 LUC17-42-15

Comfortstar BAR10 3.5 Ton 14.3 SEER2 Air Conditioner Split System with Multi-Position Air Handler with ECM Motor R32
Product details

Description

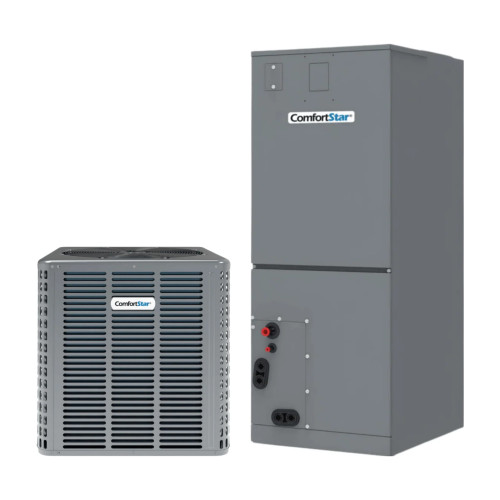

Comfortstar BAR10 3.5 Ton Air Conditioner Split System (BAR10-42-15 + LUC17-42-15)

This is a complete, AHRI matched air conditioning system from Comfortstar: the BAR10-42-15 top-discharge condenser and the LUC17-42-15 multi-position air handler, running on R-32. Together they are rated at 42,000 BTU/h cooling, 14.3 SEER2 and 12 EER2 under AHRI certificate 218073029.

The outdoor unit is a straightforward single-stage scroll condenser: fewer parts, simple 24V controls and easy service. It is a dependable choice for replacements and new construction where you want solid efficiency without the cost of variable-speed equipment.

Indoors, the LUC17-42-15 installs upflow, downflow or horizontal, so it works in closets, attics and crawl spaces. Its ECM blower moves up to 1,450 CFM and the system runs on a standard 24V cooling thermostat, so no proprietary controls are required.

Condenser: BAR10-42-15 Specifications

  • Nominal Capacity (Tons): 3.5
  • Rated Cooling Capacity (BTU/h): 42,000
  • Compressor: Single-Stage Scroll
  • Discharge: Top
  • Refrigerant: R-32
  • Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
  • MCA / MOP: 25 A / 35 A
  • Liquid / Suction Line: 3/8" / 3/4"
  • Max Line Length: 164 ft (pre-charged for 25 ft)
  • Sound Level: 60 dBA
  • Dimensions (W x D x H): 29 9/64" x 29 9/64" x 32 7/8"
  • Net / Shipping Weight: 157 lb / 168 lb

Air Handler: LUC17-42-15 Specifications

  • Configuration: Multi-Position
  • Blower Motor: ECM
  • Airflow (CFM, high to low): 1,450 / 1,100
  • Refrigerant: R-32
  • Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
  • MCA / MOP (without heat): 7 A / 10 A
  • Electric Heat: Field-installed heat strip, sold separately
  • Dimensions (W x D x H): 24 31/64" x 21 1/32" x 52 63/64"
  • Net Weight: 154.3 lb

System Ratings

  • AHRI Reference Number: 218073029
  • SEER2: 14.3
  • EER2: 12

Both units ship separately. Line set, thermostat, disconnect, condenser pad, filter are sold separately. Installation and service require a licensed HVAC technician.

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Comfortstar
Width:
29.10 (in)
Height:
32.90 (in)
Depth:
29.10 (in)
Weight:
338.60 LBS
AHRI Certified:
Yes
AHRI Reference Number:
218073029
Refrigerant Type:
R-32
Capacity (Tons):
3.5
Cooling Capacity (BTU):
42,000
SEER2:
14 SEER2
EER2:
12 EER2
Product Category:
Air Conditioner Split System
Product Line:
BAR10
Condenser Model:
BAR10-42-15
Air Handler Model:
LUC17-42-15
Compressor Stages:
Single Stage
Discharge:
Top
Electrical Phase:
1-Phase
Voltage / Phase:
208/230V 1-Phase
Matched Indoor Type:
Air Handler
Configuration:
Multi-Position
Blower Motor Type:
ECM
DOE Regional Compliance:
Nationwide
Electric Heat Options:
Field-installed heat strip, sold separately
System Type:
Air Conditioner
Operating Mode:
Cooling Only
Max Line Length:
164 ft
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Condenser BAR10-42-15 - Compressor:
Single-Stage Scroll
Condenser BAR10-42-15 - Discharge:
Top
Condenser BAR10-42-15 - MCA / MOP:
25 A / 35 A
Condenser BAR10-42-15 - Liquid / Suction Line:
3/8" / 3/4"
Condenser BAR10-42-15 - Sound Level (dBA):
60
Condenser BAR10-42-15 - Dimensions (W x D x H):
29 9/64" x 29 9/64" x 32 7/8"
Condenser BAR10-42-15 - Net / Shipping Weight:
157 lb / 168 lb
Air Handler LUC17-42-15 - Configuration:
Multi-Position
Air Handler LUC17-42-15 - Blower Motor:
ECM
Air Handler LUC17-42-15 - Airflow (CFM, high to low):
1,450 / 1,100
Air Handler LUC17-42-15 - Sound Level (dBA):
53/46
Air Handler LUC17-42-15 - MCA / MOP (without heat):
7 A / 10 A
Air Handler LUC17-42-15 - Dimensions (W x D x H):
24 31/64" x 21 1/32" x 52 63/64"
Air Handler LUC17-42-15 - Net Weight:
154.3 lb / 170.6 lb shipping
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts & 3 Years Unit Replacement | Registration Required within 60 Days of Installation
Frequently asked questions
Is the AHRI certified?
Yes. The AHRI reference number is 218073029.
What refrigerant does the use?
It uses R-32 refrigerant.
What size is the ?
The is a 3.5 ton unit.
How much cooling does the provide?
It is rated for 42,000 BTU of cooling.
What is the SEER2 rating of the ?
The is rated at 14 SEER2 SEER2.
What power supply does the need?
It requires 208/230V 1-Phase power.
What warranty comes with the BAR10-42-15-LUC17-42-15?
10 Years Compressor & 10 Years Parts & 3 Years Unit Replacement | Registration Required within 60 Days of Installation
Who makes the BAR10-42-15-LUC17-42-15?
The BAR10-42-15-LUC17-42-15 is made by Comfortstar.
