Name: Comfortstar MRH32 5 Ton 17.7 SEER2 Inverter Heat Pump Split System with High Efficiency Air Handler with Constant Torque ECM Motor R32 | MRH32-60 AHH32-60
Brand: Comfortstar
SKU: MRH32-60-AHH32-60
Price: 6097.78 USD
Availability: InStock

Overview

Comfortstar MRH32 5 Ton 17.7 SEER2 Inverter Heat Pump Split System with High Efficiency Air Handler with Constant Torque ECM Motor R32 | MRH32-60 AHH32-60

Product details

Description

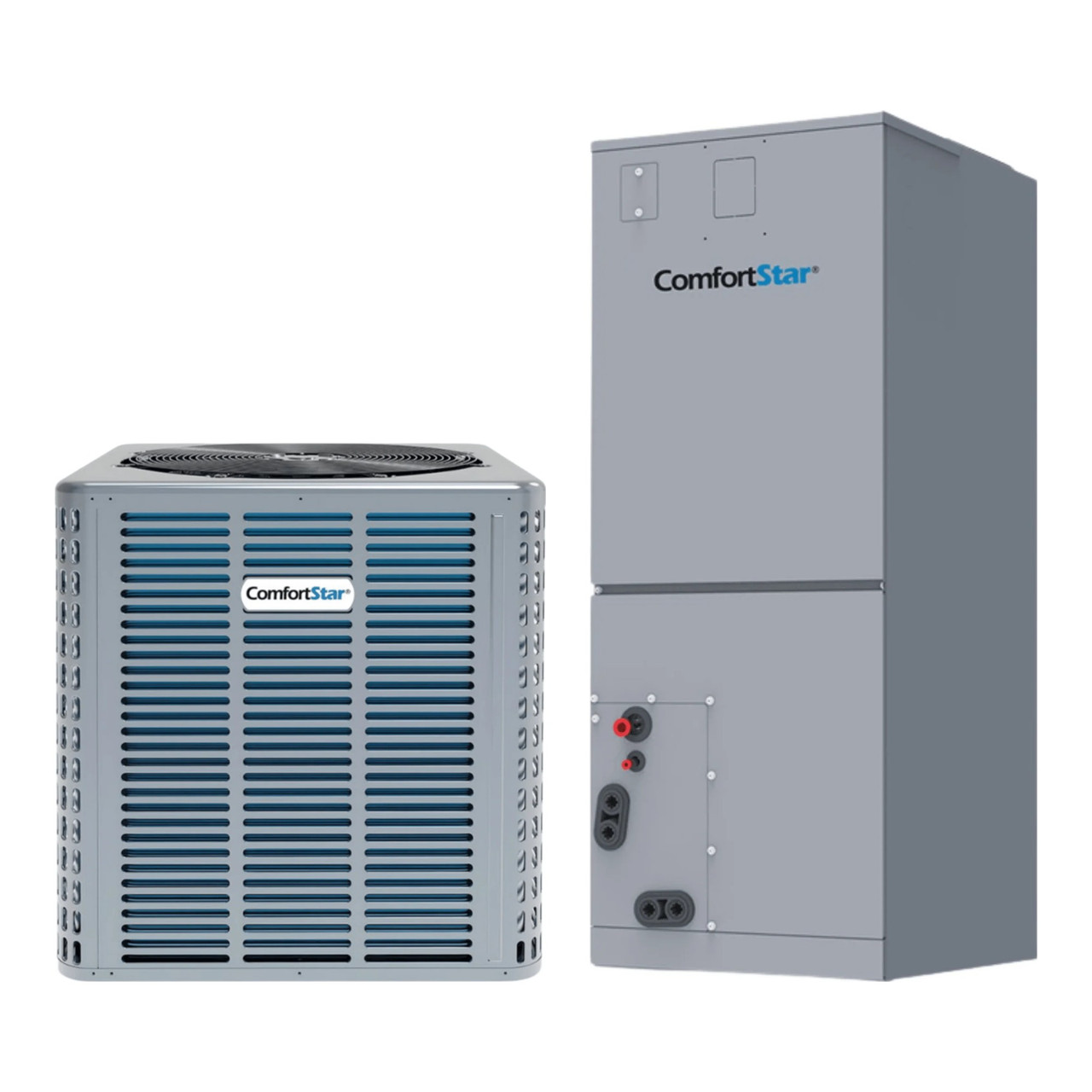

Comfortstar MRH32 5 Ton Inverter Heat Pump Split System (MRH32-60 + AHH32-60)

This is a complete, AHRI matched heat pump system from Comfortstar: the MRH32-60 top-discharge heat pump and the AHH32-60 high efficiency air handler, running on R-32. Together they are rated at 54,000 BTU/h cooling, 54,000 BTU/h heating, 17.7 SEER2 and 8.6 EER2 with 8 HSPF2 under AHRI certificate 217902856.

The outdoor unit uses an inverter twin rotary compressor that speeds up and slows down with the load instead of cycling on and off at full power. You get steadier temperatures, better humidity control and lower operating cost, and it still puts out about 40,000 BTU/h of heat at 5°F. Comfortstar rates it for heating down to -4°F and cooling from 5°F up to 131°F.

Indoors, the AHH32-60 is a high efficiency air handler for closet, attic or utility room installations. Its Constant Torque ECM blower moves up to 1,740 CFM and the system runs on a standard 24V heat pump thermostat, so no proprietary controls are required.

Heat Pump: MRH32-60 Specifications

Nominal Capacity (Tons): 5
Rated Cooling Capacity (BTU/h): 54,000
Rated Heating Capacity @ 47°F (BTU/h): 54,000
Heating Capacity @ 5°F (BTU/h): 40,000
Compressor: Inverter Twin Rotary
Discharge: Top
Refrigerant: R-32
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
MCA / MOP: 39 A / 40 A
Liquid / Suction Line: 3/8" / 3/4"
Max Line Length: 246 ft (pre-charged for 25 ft)
Operating Range: Cooling 5°F to 131°F / Heating -4°F to 75°F
Sound Level: 60 dBA
Dimensions (W x D x H): 29 9/64" x 29 9/64" x 32 7/8"
Net / Shipping Weight: 187 lb / 196 lb

Air Handler: AHH32-60 Specifications

Blower Motor: Constant Torque ECM
Airflow (CFM, high to low): 1,740 / 750
Refrigerant: R-32
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
MCA / MOP (without heat): 7 A / 15 A
Electric Heat: Field-installed heat strip, sold separately
Dimensions (W x D x H): 24 31/64" x 21 1/32" x 53 3/16"
Net Weight: 164 lb

System Ratings

AHRI Reference Number: 217902856
SEER2: 17.7
EER2: 8.6
HSPF2: 8

Both units ship separately. Line set, thermostat, disconnect, condenser pad, filter and electric heat strip are sold separately. Installation and service require a licensed HVAC technician.

What's in this bundle

Complete your install

Sizing helpNeed a product but don't know the size? We've got you covered.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Comfortstar

Width:

29.10 (in)

Height:

32.90 (in)

Depth:

29.10 (in)

Weight:

377.00 LBS

AHRI Certified:

Yes

AHRI Reference Number:

217902856

Refrigerant Type:

R-32

Capacity (Tons):

5

Cooling Capacity (BTU):

54,000

Heating Output (BTU):

40,000 - 69,000 BTU

SEER2:

17 SEER2

EER2:

8 EER2

HSPF2:

8 HSPF2

Product Category:

Heat Pump Split System

Product Line:

MRH32

Outdoor Unit Model:

MRH32-60

Air Handler Model:

AHH32-60

Compressor Stages:

Variable Speed

Discharge:

Top

Electrical Phase:

1-Phase

Voltage / Phase:

208/230V 1-Phase

Matched Indoor Type:

Air Handler

Blower Motor Type:

Constant Torque ECM

DOE Regional Compliance:

Nationwide

Electric Heat Options:

Field-installed heat strip, sold separately

System Type:

Heat Pump

Operating Mode:

Cooling & Heating

Max Line Length:

246 ft

Prop 65 Warning:

Yes

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Heat Pump MRH32-60 - Compressor:

Inverter Twin Rotary

Heat Pump MRH32-60 - Discharge:

Top

Heat Pump MRH32-60 - MCA / MOP:

39 A / 40 A

Heat Pump MRH32-60 - Liquid / Suction Line:

3/8" / 3/4"

Heat Pump MRH32-60 - Sound Level (dBA):

60

Heat Pump MRH32-60 - Dimensions (W x D x H):

29 9/64" x 29 9/64" x 32 7/8"

Heat Pump MRH32-60 - Net / Shipping Weight:

187 lb / 196 lb

Air Handler AHH32-60 - Blower Motor:

Constant Torque ECM

Air Handler AHH32-60 - Airflow (CFM, high to low):

1,740 / 750

Air Handler AHH32-60 - Sound Level (dBA):

52.5/44

Air Handler AHH32-60 - MCA / MOP (without heat):

7 A / 15 A

Air Handler AHH32-60 - Dimensions (W x D x H):

24 31/64" x 21 1/32" x 53 3/16"

Air Handler AHH32-60 - Net Weight:

164 lb / 181 lb shipping

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Energy standards

Documents & warranty

Warranty

10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Installation

Frequently asked questions

Is the AHRI certified?

Yes. The AHRI reference number is 217902856.

What refrigerant does the use?

It uses R-32 refrigerant.

What size is the ?

The is a 5 ton unit.

How much cooling does the provide?

It is rated for 54,000 BTU of cooling.

What is the SEER2 rating of the ?

The is rated at 17 SEER2 SEER2.

What is the HSPF2 heating efficiency of the ?

It is rated at 8 HSPF2 HSPF2.

What power supply does the need?

It requires 208/230V 1-Phase power.

What warranty comes with the MRH32-60-AHH32-60?

10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Installation

Who makes the MRH32-60-AHH32-60?

The MRH32-60-AHH32-60 is made by Comfortstar.
