Description

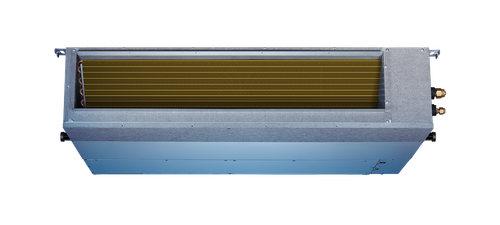

The Cooper & Hunter CH-RS24MDT-HS is the Slim Duct slim ducted indoor unit sold on its own, for replacing an existing head or building a system with a compatible Cooper & Hunter outdoor unit. The Slim Duct is a concealed, low-profile ducted air handler that hides above a ceiling or in a soffit and serves one or more rooms through short duct runs. Medium-static models (6-18K) handle up to 0.4 in. W.C.; high-static models (24K and up) handle up to 0.8 in. W.C. The 6-12K model is set to 6K, 9K or 12K by dip switch.
Specifications
- Model: CH-RS24MDT-HS
- Cooling Capacity (BTU/h): 24,000
- Refrigerant Piping (Liquid/Gas): 3/8"/5/8"
- Airflow (CFM, high to low): 853.5 / 706.3 / 618 / 500.3
- Sound Level (dB(A), high/med/low): 40/37/35
- External Static Pressure (in. W.C.): 0-0.8
- Filter Size (in): 17.28 x 7.95
- Condensate Drain: 1"
- Unit Dimensions (W x D x H): 39.37 in x 29.53 in x 9.65 in
- Net / Shipping Weight: 54.45 lb / 66.14 lb
Compatibility
Pair this indoor unit only with a Cooper & Hunter outdoor unit listed as compatible in the manufacturer's match-up and multi-zone combination charts. The outdoor unit, line set, communication cable and installation materials are sold separately. Installation and service require a licensed HVAC technician.
White Paper
- Cooper & Hunter CH-RES24-230VO + CH-RS24MDT-HS Submittal (PDF)
- Cooper & Hunter CH-RS24MDT-HS Spec Sheet (PDF)
- Cooper & Hunter Installation Manual – High Static Duct (PDF)
- Cooper & Hunter Owner's Manual High Static Duct (PDF)
- Cooper & Hunter Accessories Leaflet 2024 (PDF)
- Cooper & Hunter SlimDuct Leaflet R-454B (PDF)
