Product Summary

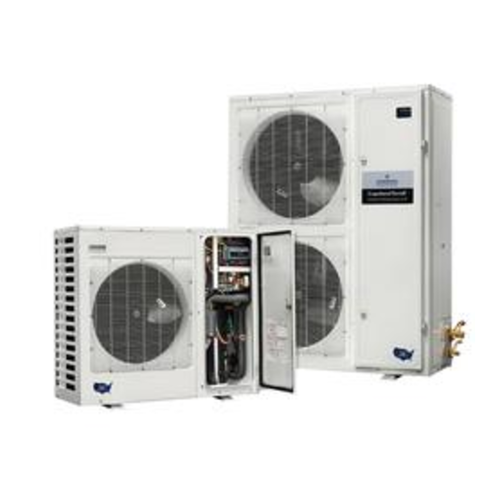

The Copeland XFAP-015Z-CFV-081 is a 1-1/2 HP multiple-temperature air-cooled outdoor scroll condensing unit from the Copeland X-Line XF family. It delivers 11,300 BTU/h (R-404A, +20°F SST, 90°F ambient). It runs on 208/230V 1-phase power.
It is built for refrigeration contractors, facility managers and equipment owners who need a dependable Copeland condensing unit for medium- or low-temperature walk-ins and display refrigeration, with approved refrigerants including R-404A, R-134a, R-407A, R-407C.
Model XFAP-015Z-CFV-081 uses the ZS09KAE compressor, requires a minimum circuit ampacity of 13.55 A with 20 A maximum overcurrent protection. Pair it with a matched evaporator and metering device sized to the box load.
Key Features
- Copeland Scroll Compressor: ZS09KAE compressor for efficient, low-vibration operation
- Outdoor-Rated X-Line Cabinet: slim, lightweight weather-resistant housing designed for outdoor installation
- Multi-Refrigerant Approval: approved for R-404A, R-134a, R-407A, R-407C, R-507A, R-22 (see Copeland OPI for the current list)
- Factory-Installed Components: filter drier and moisture-indicating sight glass reduce field brazing and leak points
- Built-In Diagnostics and Protection: X-Line controls aid troubleshooting and help protect the compressor
- Air-Cooled Condenser: large condenser coil with 1 fan for reliable heat rejection
Ideal Applications
- Walk-in coolers and walk-in freezers (selected per application)
- Restaurants, bars and commercial kitchens
- Convenience stores, grocery and specialty food retail
- Replacement condensing units for existing refrigeration systems
Frequently Asked Questions
What refrigerants can the Copeland XFAP-015Z-CFV-081 use?
Copeland lists R-404A, R-134a, R-407A, R-407C, R-507A, R-22 for this model. Always confirm the current approved list on Copeland Online Product Information (OPI) before charging.
Is the XFAP-015Z-CFV-081 for coolers or freezers?
It is a multiple-temperature model that Copeland rates for both medium- and low-temperature duty, so it can serve a cooler or a freezer when sized correctly.
What power supply does it need?
It requires 208/230V 1-phase power, a minimum circuit ampacity of 13.55 A and maximum overcurrent protection of 20 A.
What else do I need to complete the system?
A condensing unit must be paired with a matched unit cooler or evaporator, an expansion valve, controls and a properly sized line set. Installation should be done by a qualified refrigeration technician.
How is the capacity rated?
Copeland rates the XFAP-015Z-CFV-081 at 11,300 BTU/h (R-404A, +20°F SST, 90°F ambient). Actual capacity depends on evaporator temperature, ambient temperature and refrigerant.
