Description
Product Summary

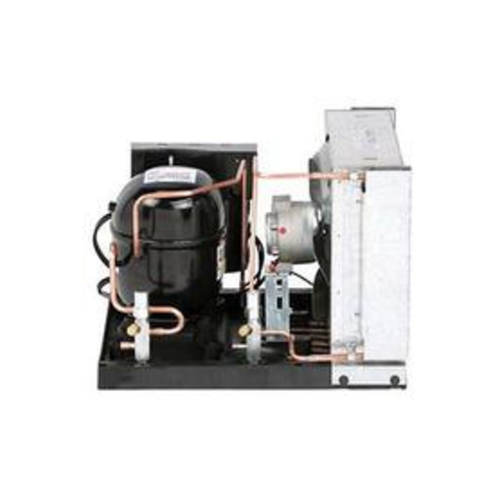

The Copeland M6JM-H023-IAA-177 is a 1/6 HP medium temp air-cooled hermetic condensing unit from the Copeland M-Line family. It runs on 115V 1-phase power.
It is built for refrigeration contractors, facility managers and equipment owners who need a dependable Copeland condensing unit for walk-in coolers and medium-temperature boxes, with approved refrigerants including R-404A, R-448A, R-449A.
Model M6JM-H023-IAA-177 uses the ASE14C4E compressor, requires a minimum circuit ampacity of 6.7 A with 15 A maximum overcurrent protection. Pair it with a matched evaporator and metering device sized to the box load.
Key Features
- Copeland Hermetic Compressor: ASE14C4E hermetic reciprocating compressor sized for small refrigeration loads
- Compact M-Line Chassis: small-footprint air-cooled condensing unit for reach-ins, small walk-ins and OEM equipment
- Refrigerant Platform: model code 6 indicates R-404A / R-448A / R-449A refrigerant application
- Temperature Application: medium-temperature application
- Factory Assembled: factory-built condensing unit with compressor, condenser coil and fan motor
Specifications
| Brand | Copeland |
|---|---|
| Model | M6JM-H023-IAA-177 |
| Series | M-Line |
| Product Type | Air-Cooled Hermetic Condensing Unit |
| Horsepower | 1/6 HP |
| Temperature Application | Medium Temp |
| Compressor | ASE14C4E Hermetic Reciprocating |
| Approved Refrigerants | R-404A, R-448A, R-449A |
| Voltage / Phase | 115V, 1-phase |
| Minimum Circuit Ampacity | 6.7 A |
| Max Fuse / MOP | 15 A |
| Suction / Liquid Connection | 1/4 in / 3/8 in |
| Dimensions (W x H x D) | 11.45 x 11.37 x 14.11 in |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery cooler boxes
- Floral, produce and beverage coolers
- School, hospital and institutional food service
Frequently Asked Questions
What refrigerants can the Copeland M6JM-H023-IAA-177 use?
Copeland lists R-404A, R-448A, R-449A for this model. Always confirm the current approved list on Copeland Online Product Information (OPI) before charging.
Is the M6JM-H023-IAA-177 for coolers or freezers?
It is a medium-temperature unit for coolers and similar boxes, not for freezers.
What power supply does it need?
It requires 115V 1-phase power, a minimum circuit ampacity of 6.7 A and maximum overcurrent protection of 15 A.
What else do I need to complete the system?
A condensing unit must be paired with a matched unit cooler or evaporator, an expansion valve, controls and a properly sized line set. Installation should be done by a qualified refrigeration technician.
