Description
Product Summary

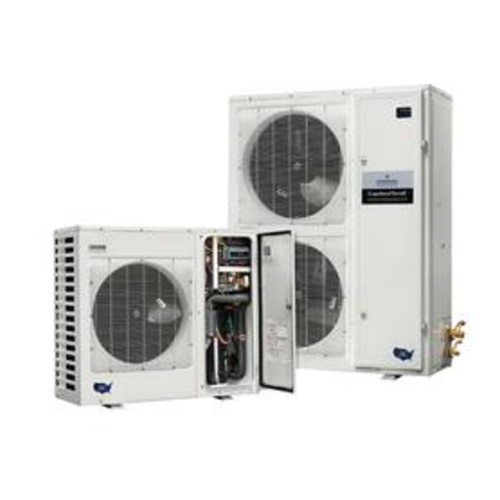

The Copeland XFAM-022Z-CFV-081 is a 2-1/4 HP medium temp air-cooled outdoor scroll condensing unit from the Copeland X-Line XF family. It delivers 18,100 BTU/h (R-404A, +20°F SST, 90°F ambient). It runs on 208/230V 1-phase power.
It is built for refrigeration contractors, facility managers and equipment owners who need a dependable Copeland condensing unit for walk-in coolers and medium-temperature boxes, with approved refrigerants including R-404A, R-134a, R-407A, R-407C.
Model XFAM-022Z-CFV-081 uses the ZS15KAE compressor, requires a minimum circuit ampacity of 20.68 A with 35 A maximum overcurrent protection. Pair it with a matched evaporator and metering device sized to the box load.
Key Features
- Copeland Scroll Compressor: ZS15KAE compressor for efficient, low-vibration operation
- Outdoor-Rated X-Line Cabinet: slim, lightweight weather-resistant housing designed for outdoor installation
- Multi-Refrigerant Approval: approved for R-404A, R-134a, R-407A, R-407C, R-507A, R-22 (see Copeland OPI for the current list)
- Factory-Installed Components: filter drier and moisture-indicating sight glass reduce field brazing and leak points
- Built-In Diagnostics and Protection: X-Line controls aid troubleshooting and help protect the compressor
- Air-Cooled Condenser: large condenser coil with 1 fan for reliable heat rejection
Specifications
| Brand | Copeland |
|---|---|
| Model | XFAM-022Z-CFV-081 |
| Series | X-Line XF |
| Product Type | Air-Cooled Outdoor Scroll Condensing Unit |
| Horsepower | 2-1/4 HP |
| Temperature Application | Medium Temp |
| Compressor | ZS15KAE Scroll |
| Refrigeration Capacity | 18,100 BTU/h (R-404A, +20°F SST, 90°F ambient) |
| Approved Refrigerants | R-404A, R-134a, R-407A, R-407C, R-507A, R-22 |
| Voltage / Phase | 208/230V, 1-phase |
| Minimum Circuit Ampacity | 20.68 A |
| Max Fuse / MOP | 35 A |
| Condenser Fans | 1 |
| Suction / Liquid Connection | 7/8 in / 1/2 in |
| Dimensions (W x H x D) | 40.5 x 33.1 x 16.7 in |
| Shipping Weight | 220 lb |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery cooler boxes
- Floral, produce and beverage coolers
- School, hospital and institutional food service
Frequently Asked Questions
What refrigerants can the Copeland XFAM-022Z-CFV-081 use?
Copeland lists R-404A, R-134a, R-407A, R-407C, R-507A, R-22 for this model. Always confirm the current approved list on Copeland Online Product Information (OPI) before charging.
Is the XFAM-022Z-CFV-081 for coolers or freezers?
It is a medium-temperature unit for coolers and similar boxes, not for freezers.
What power supply does it need?
It requires 208/230V 1-phase power, a minimum circuit ampacity of 20.68 A and maximum overcurrent protection of 35 A.
What else do I need to complete the system?
A condensing unit must be paired with a matched unit cooler or evaporator, an expansion valve, controls and a properly sized line set. Installation should be done by a qualified refrigeration technician.
How is the capacity rated?
Copeland rates the XFAM-022Z-CFV-081 at 18,100 BTU/h (R-404A, +20°F SST, 90°F ambient). Actual capacity depends on evaporator temperature, ambient temperature and refrigerant.
