Description
Product Summary

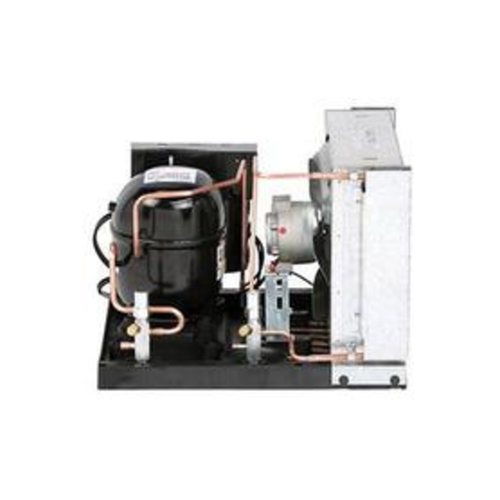

The Copeland M6KP-0075-CAV-177 is a 3/4 HP multiple-temperature air-cooled hermetic condensing unit from the Copeland M-Line family. It runs on 208/230V 1-phase power.
It is built for refrigeration contractors, facility managers and equipment owners who need a dependable Copeland condensing unit for medium- or low-temperature walk-ins and display refrigeration, with approved refrigerants including R-404A, R-448A, R-449A.
Model M6KP-0075-CAV-177 uses the RST55C1E compressor, requires a minimum circuit ampacity of 9.7 A with 15 A maximum overcurrent protection. Pair it with a matched evaporator and metering device sized to the box load.
Key Features
- Copeland Hermetic Compressor: RST55C1E hermetic reciprocating compressor sized for small refrigeration loads
- Compact M-Line Chassis: small-footprint air-cooled condensing unit for reach-ins, small walk-ins and OEM equipment
- Refrigerant Platform: model code 6 indicates R-404A / R-448A / R-449A refrigerant application
- Temperature Application: multiple-temperature (medium and low) application
- Factory Assembled: factory-built condensing unit with compressor, condenser coil and fan motor
Specifications
| Brand | Copeland |
|---|---|
| Model | M6KP-0075-CAV-177 |
| Series | M-Line |
| Product Type | Air-Cooled Hermetic Condensing Unit |
| Horsepower | 3/4 HP |
| Temperature Application | Multiple temperature (medium and low) |
| Compressor | RST55C1E Hermetic Reciprocating |
| Approved Refrigerants | R-404A, R-448A, R-449A |
| Voltage / Phase | 208/230V, 1-phase |
| Minimum Circuit Ampacity | 9.7 A |
| Max Fuse / MOP | 15 A |
| Suction / Liquid Connection | 1/4 in / 3/8 in |
| Dimensions (W x H x D) | 16.39 x 13.08 x 24 in |
Ideal Applications
- Walk-in coolers and walk-in freezers (selected per application)
- Restaurants, bars and commercial kitchens
- Convenience stores, grocery and specialty food retail
- Replacement condensing units for existing refrigeration systems
Frequently Asked Questions
What refrigerants can the Copeland M6KP-0075-CAV-177 use?
Copeland lists R-404A, R-448A, R-449A for this model. Always confirm the current approved list on Copeland Online Product Information (OPI) before charging.
Is the M6KP-0075-CAV-177 for coolers or freezers?
It is a multiple-temperature model that Copeland rates for both medium- and low-temperature duty, so it can serve a cooler or a freezer when sized correctly.
What power supply does it need?
It requires 208/230V 1-phase power, a minimum circuit ampacity of 9.7 A and maximum overcurrent protection of 15 A.
What else do I need to complete the system?
A condensing unit must be paired with a matched unit cooler or evaporator, an expansion valve, controls and a properly sized line set. Installation should be done by a qualified refrigeration technician.
