Product Summary

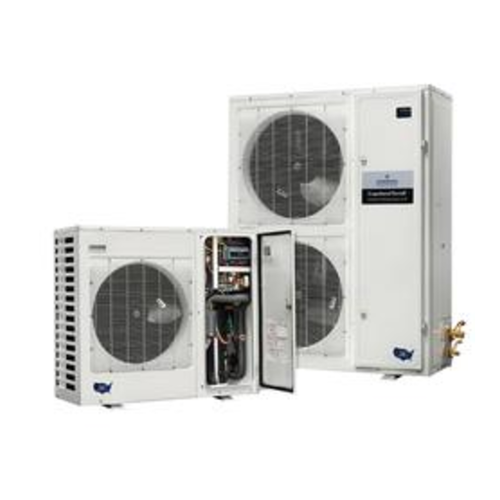

The Copeland XFAL-030Z-TFC-081 is a 3 HP low temp air-cooled outdoor scroll condensing unit from the Copeland X-Line XF family. It delivers 14,060 BTU/h (R-404A, -20°F SST, 90°F ambient). It runs on 208/230V 3-phase power.
It is built for refrigeration contractors, facility managers and equipment owners who need a dependable Copeland condensing unit for walk-in freezers and low-temperature storage, with approved refrigerants including R-404A, R-407A, R-407C, R-507A.
Model XFAL-030Z-TFC-081 uses the ZXI09KCE compressor, requires a minimum circuit ampacity of 17.18 A with 25 A maximum overcurrent protection. Pair it with a matched evaporator and metering device sized to the box load.
Key Features
- Copeland Scroll Compressor: ZXI09KCE compressor for efficient, low-vibration operation
- Outdoor-Rated X-Line Cabinet: slim, lightweight weather-resistant housing designed for outdoor installation
- Multi-Refrigerant Approval: approved for R-404A, R-407A, R-407C, R-507A (see Copeland OPI for the current list)
- Factory-Installed Components: filter drier and moisture-indicating sight glass reduce field brazing and leak points
- Built-In Diagnostics and Protection: X-Line controls aid troubleshooting and help protect the compressor
- Air-Cooled Condenser: large condenser coil with 1 fan for reliable heat rejection
Ideal Applications
- Walk-in freezers for restaurants and commercial kitchens
- Convenience store and grocery freezer boxes
- Ice cream and frozen food storage
- School, hospital and institutional food service
Frequently Asked Questions
What refrigerants can the Copeland XFAL-030Z-TFC-081 use?
Copeland lists R-404A, R-407A, R-407C, R-507A for this model. Always confirm the current approved list on Copeland Online Product Information (OPI) before charging.
Is the XFAL-030Z-TFC-081 for coolers or freezers?
It is a low-temperature unit intended for freezers and low-temperature storage.
What power supply does it need?
It requires 208/230V 3-phase power, a minimum circuit ampacity of 17.18 A and maximum overcurrent protection of 25 A.
What else do I need to complete the system?
A condensing unit must be paired with a matched unit cooler or evaporator, an expansion valve, controls and a properly sized line set. Installation should be done by a qualified refrigeration technician.
How is the capacity rated?
Copeland rates the XFAL-030Z-TFC-081 at 14,060 BTU/h (R-404A, -20°F SST, 90°F ambient). Actual capacity depends on evaporator temperature, ambient temperature and refrigerant.
