Product Summary

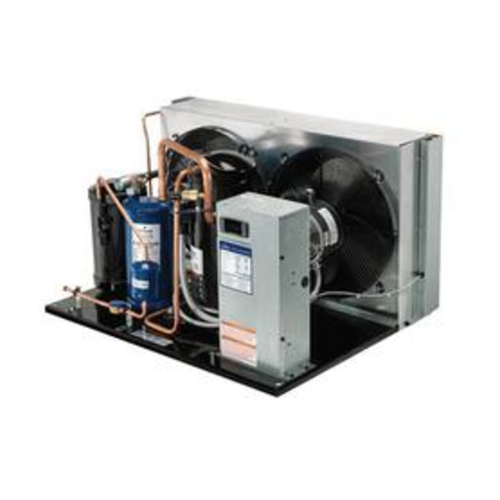

The Copeland FPAK-039Z-TFC-071 is a 4 HP medium temp air-cooled scroll condensing unit from the Copeland F-Line FPAK family. It delivers 22,500 BTU/h (R-134a, +25°F SST, 90°F ambient, 40°F return gas). It runs on 208/230V 3-phase power.
It is built for refrigeration contractors, facility managers and equipment owners who need a dependable Copeland condensing unit for walk-in coolers and medium-temperature boxes, with approved refrigerants including R-134a, R-404A.
Model FPAK-039Z-TFC-071 uses the ZS29KAE compressor, requires a minimum circuit ampacity of 28.4 A with 45 A maximum overcurrent protection. Pair it with a matched evaporator and metering device sized to the box load.
Key Features
- Copeland Scroll Compressor: ZS29KAE scroll compressor
- Medium/High Temperature Duty: FPAK units are built for medium- and high-temperature refrigeration
- Dual Refrigerant: rated for R-134a and R-404A
- Air-Cooled Steel Base: compact air-cooled condensing unit with steel base
- Factory Wired: factory wired and assembled to simplify installation by a qualified technician
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery cooler boxes
- Floral, produce and beverage coolers
- School, hospital and institutional food service
Frequently Asked Questions
What refrigerants can the Copeland FPAK-039Z-TFC-071 use?
Copeland lists R-134a, R-404A for this model. Always confirm the current approved list on Copeland Online Product Information (OPI) before charging.
Is the FPAK-039Z-TFC-071 for coolers or freezers?
It is a medium-temperature unit for coolers and similar boxes, not for freezers.
What power supply does it need?
It requires 208/230V 3-phase power, a minimum circuit ampacity of 28.4 A and maximum overcurrent protection of 45 A.
What else do I need to complete the system?
A condensing unit must be paired with a matched unit cooler or evaporator, an expansion valve, controls and a properly sized line set. Installation should be done by a qualified refrigeration technician.
How is the capacity rated?
Copeland rates the FPAK-039Z-TFC-071 at 22,500 BTU/h (R-134a, +25°F SST, 90°F ambient, 40°F return gas). Actual capacity depends on evaporator temperature, ambient temperature and refrigerant.
