Description
Product Summary

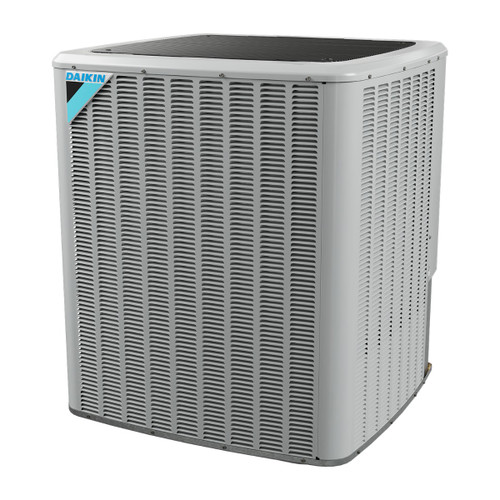

The Daikin DH6TE09030 is a 7.5-ton R-32 commercial split-system heat pump outdoor unit from the Daikin DH6TE0 series, built for 208/230V 3-Phase light commercial power. It delivers a rated 92,000 BTU/h of cooling and 85,000 BTU/h of heating at 47°F.
It is rated at 16.0 IEER and 11.4 EER, with a two-stage compressor and factory-applied R-32 charge.
Contractors use the DH6TE09030 to pair with a matched Daikin R-32 commercial air handler or coil on offices, retail spaces and other light commercial buildings that need three-phase split-system cooling and heating.
Key Features
- R-32 refrigerant: lower global warming potential refrigerant used across the current Daikin commercial split lineup
- Two-stage operation: two-stage compressor system for better part-load efficiency, reflected in the 16+ IEER rating
- Commercial three-phase power: 208/230V 3-Phase supply with 38.7 A MCA and 50 A MOP
- Large line connections: 1-1/8 in suction and 5/8 in liquid connections
- Heavy-duty cabinet: 41.5 x 35.5 x 35.5 in footprint for rooftop or slab mounting
- Heat pump heating: reversing heat pump design with 85,000 BTU/h rated heating
Specifications
| Model Number | DH6TE09030 |
|---|---|
| Series | Daikin DH6TE0 (R-32) |
| Nominal Capacity | 7.5 Tons |
| Rated Cooling Capacity | 92,000 BTU/h |
| EER | 11.4 |
| IEER | 16.0 |
| Rated Heating Capacity (47°F) | 85,000 BTU/h |
| Heating COP | 3.5 |
| Power Supply | 208/230V 3-Phase, 60 Hz |
| Minimum Circuit Ampacity (MCA) | 38.7 A |
| Maximum Overcurrent Protection (MOP) | 50 A |
| Compressor | Two-stage |
| Refrigerant | R-32 |
| Holding Charge | 110 oz |
| Suction Line Connection | 1-1/8 in |
| Liquid Line Connection | 5/8 in |
| Unit Dimensions (H x W x D) | 41.5 x 35.5 x 35.5 in |
| Net Weight | 386 lb |
| Shipping Weight | 415 lb |
Ideal Applications
- Offices and professional buildings
- Retail stores and strip centers
- Restaurants and light commercial kitchens (dining areas)
- Schools, churches and community buildings
- Light commercial retrofits replacing R-410A split systems
Frequently Asked Questions
What refrigerant does the Daikin DH6TE09030 use?
The DH6TE09030 uses R-32 refrigerant and ships with a 110 oz holding charge. Pair it only with R-32 rated indoor equipment.
What power supply does the DH6TE09030 need?
It requires 208/230V 3-Phase, 60 Hz power. The published minimum circuit ampacity is 38.7 A and the maximum overcurrent protection is 50 A.
What size line set does the DH6TE09030 use?
The unit has a 1-1/8 in suction connection and a 5/8 in liquid connection.
What indoor unit should I match with the DH6TE09030?
Use a Daikin R-32 commercial air handler or coil matched to 7.5 tons in the AHRI directory. Contact HVAC365 and we will help confirm the matched system.
