Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS4MA1810 GD9S800403AX CAPTA2422A3

Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS4MA1810 GD9S800403AX CAPTA2422A3

Name: Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS4MA1810 GD9S800403AX CAPTA2422A3
Brand: Goodman
SKU: GLXS4MA1810-GD9S800403AX-CAPTA2422A3
Price: 3995 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS4MA1810-GD9S800403AX-CAPTA2422A3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow R-32, model GLXS4MA1810 GD9S800403AX CAPTA2422A3 - view 5

UPC:
Condition:: New
Width:: 26.00 (in)
Height:: 37.00 (in)
Depth:: 26.00 (in)

Questions about Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS4MA1810 GD9S800403AX CAPTA2422A3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$3,995.00

Overview

Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS4MA1810 GD9S800403AX CAPTA2422A3

Product details

Description

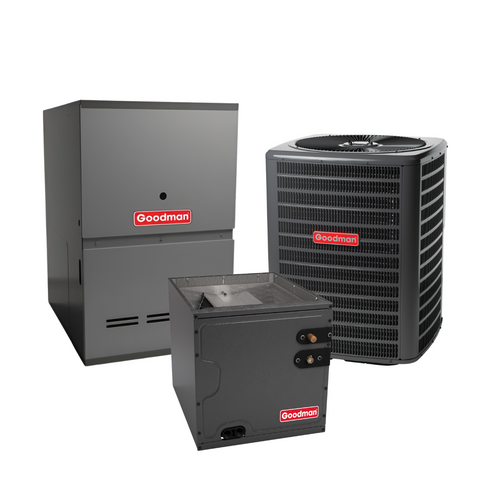

The Goodman 1.5 Ton 15.2 SEER2 80% AFUE 40,000 BTU Gas Electric Air Conditioner Split System Downflow with R-32 refrigerant is a matched residential HVAC solution designed to provide efficient cooling and dependable gas heating. It combines the GLXS4MA1810 air conditioner, GD9S800403AX gas furnace, and CAPTA2422A3 cased evaporator coil.

With approximately 18,000 BTU of nominal cooling capacity, up to 15.2 SEER2 efficiency, and a 40,000 BTU furnace rated at 80% AFUE, this system supports reliable year-round comfort. The furnace features single-stage heating and a nine-speed ECM blower motor, while the downflow configuration is suitable for installations where conditioned air must be directed downward.

Key Features

1.5 Ton Cooling Capacity – Provides approximately 18,000 BTU of nominal cooling
Up to 15.2 SEER2 Efficiency – Supports energy-conscious seasonal cooling
40,000 BTU Gas Furnace – Delivers dependable heating with an 80% AFUE rating
Nine-Speed ECM Blower – Promotes efficient and consistent indoor airflow
Downflow Configuration – Designed to discharge conditioned air through lower ductwork
R-32 Refrigerant System – Uses modern refrigerant with lower global warming potential than R-410A

Benefits

Provides complete residential cooling and gas heating from one matched system
Compact 1.5-ton capacity is suitable for smaller residential applications
Nine-speed ECM blower supports consistent airflow and efficient operation
Downflow configuration accommodates installations with ductwork located below the furnace
Factory-installed TXV helps regulate refrigerant flow through the evaporator coil

Compatibility & Installation

The Goodman GLXS4MA1810-GD9S800403AX-CAPTA2422A3 package combines the primary components required for a downflow gas-electric split-system installation. Proper sizing, airflow adjustment, refrigerant charging, and professional commissioning are necessary for reliable system performance.

Installation considerations:

Verify that the 1.5-ton cooling and 40,000 BTU heating capacities match the building’s calculated requirements
Confirm that the ductwork and available space support a downflow configuration
Follow all applicable R-32 refrigerant handling and safety requirements
Confirm gas supply, electrical, venting, drainage, and condensate requirements
Professional installation by a licensed HVAC technician is recommended

Frequently Asked Questions

What cooling capacity does this Goodman system provide?

The system provides approximately 18,000 BTU of nominal cooling capacity, equivalent to 1.5 tons.

What is the cooling efficiency rating?

The GLXS4MA1810 air conditioner offers cooling efficiency of up to 15.2 SEER2.

What is the furnace capacity and efficiency?

The GD9S800403AX furnace provides 40,000 BTU of heating input and is rated at 80% AFUE.

What type of blower motor is included?

The furnace includes a nine-speed ECM blower motor with a maximum airflow capacity of approximately 1,200 CFM.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

26.00 (in)

Height:

37.00 (in)

Depth:

26.00 (in)

Weight:

271.00 LBS

Product Category:

Gas Heating & Air Conditioner Bundle

Configuration:

Downflow

AHRI Certified:

Yes

Capacity (Tons):

1.5

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Vent Type:

Chimney / Category I

Shipping Weight:

271 lb

AFUE:

80%

Airflow (CFM):

1,200

AHRI Reference Number:

214859163

Color:

Gray

EER2:

12 EER2

Electrical Phase:

1-Phase

Cabinet Width (in):

Electrical Frequency:

60 Hz

Blower Motor Type:

ECM Constant Torque

Heating Input (BTU):

40,000 - 69,000 BTU

Refrigerant Type:

R-32

SEER2:

15 SEER2

Line Set Connection Type:

Braze

Unit Weight:

241 lb

Heating Stages:

Single Stage

Liquid Line Size:

3/8 in

Prop 65 Warning:

Yes

Cooling Capacity (BTU):

18,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS4MA1810 - Nominal Capacity (Tons):

1.5

Condenser GLXS4MA1810 - Cooling Capacity (BTU/h):

18,000

Condenser GLXS4MA1810 - Refrigerant:

R-32

Condenser GLXS4MA1810 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS4MA1810 - Minimum Circuit Ampacity (MCA):

11.1 A

Condenser GLXS4MA1810 - Maximum Overcurrent Protection (MOP):

15 A

Condenser GLXS4MA1810 - Compressor Type:

Scroll

Condenser GLXS4MA1810 - Compressor Stages:

Single Stage

Condenser GLXS4MA1810 - Liquid Line Size:

3/8 in

Condenser GLXS4MA1810 - Suction Line Size:

3/4 in

Condenser GLXS4MA1810 - Sound Level (dB):

Condenser GLXS4MA1810 - Unit Dimensions (W x D x H):

26 in x 26 in x 27 in

Condenser GLXS4MA1810 - Unit Weight:

129 lb

Condenser GLXS4MA1810 - Shipping Weight:

144 lb

Furnace GD9S800403AX - Input (BTU/h):

40,000

Furnace GD9S800403AX - Output (BTU/h):

32,000

Furnace GD9S800403AX - AFUE:

80%

Furnace GD9S800403AX - Heating Stages:

Single Stage

Furnace GD9S800403AX - Blower Motor Type:

ECM Constant Torque

Furnace GD9S800403AX - Maximum Cooling Capacity (Tons):

Furnace GD9S800403AX - Configuration:

Downflow/Horizontal

Furnace GD9S800403AX - Cabinet Width:

14 in

Furnace GD9S800403AX - Vent Type:

Chimney / Category I

Furnace GD9S800403AX - Gas Type:

Propane Convertible

Furnace GD9S800403AX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GD9S800403AX - Unit Dimensions (W x D x H):

14 in x 28 in x 33.375 in

Furnace GD9S800403AX - Shipping Weight:

90 lb

Evaporator Coil CAPTA2422A3 - Nominal Capacity (Tons):

Evaporator Coil CAPTA2422A3 - Cased/Uncased:

Cased

Evaporator Coil CAPTA2422A3 - Configuration:

Upflow/Downflow

Evaporator Coil CAPTA2422A3 - Cabinet Width:

14 in

Evaporator Coil CAPTA2422A3 - Metering Device:

TXV

Evaporator Coil CAPTA2422A3 - Refrigerant:

R-32

Evaporator Coil CAPTA2422A3 - Liquid Line Size:

3/8 in

Evaporator Coil CAPTA2422A3 - Suction Line Size:

3/4 in

Outdoor Condenser Model:

GLXS4MA1810

Gas Furnace Model:

GD9S800403AX

Evaporator Coil Model:

CAPTA2422A3

Cooling Capacity / Efficiency:

1.5 Ton / Up to 15.2 SEER2

Heating Capacity / Efficiency:

40,000 BTU Input / 80% AFUE

System Configuration:

Downflow Gas Electric Split System / R-32 Refrigerant

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
