Goodman 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA1810 GR9T960603BN CHPTA2426B3

Goodman 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA1810 GR9T960603BN CHPTA2426B3

Name: Goodman 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA1810 GR9T960603BN CHPTA2426B3
Brand: Goodman
SKU: GLXS5BA1810-GR9T960603BN-CHPTA2426B3
Price: 5228 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA1810-GR9T960603BN-CHPTA2426B3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

Goodman 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS5BA1810 GR9T960603BN CHPTA2426B3 - view 5

UPC:
Condition:: New
Width:: 26.00 (in)
Height:: 27.00 (in)
Depth:: 26.00 (in)

Questions about Goodman 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA1810 GR9T960603BN CHPTA2426B3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$5,228.00

Overview

Goodman 1.5 Ton 15.2 SEER2 96% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA1810 GR9T960603BN CHPTA2426B3

Product details

Description

The Goodman GLXS5BA1810 split system delivers 1.5 tons of cooling capacity with a 15.2 SEER2 efficiency rating for dependable and energy-efficient residential comfort. Its 60,000 BTU gas furnace provides reliable heating with a high 96% AFUE rating, helping reduce wasted fuel.

Designed for horizontal installation, this matched system includes an R-32 air conditioner, a two-stage high-efficiency gas furnace, and a cased horizontal evaporator coil. The furnace features a multi-speed ECM blower motor for consistent airflow, improved temperature control, and efficient operation.

Key Features

1.5-ton cooling capacity
15.2 SEER2 cooling efficiency
60,000 BTU two-stage gas furnace
High 96% AFUE furnace efficiency
Horizontal configuration with R-32 refrigerant

System Specifications

Cooling Capacity: 18,000 BTU
Heating Input Capacity: 60,000 BTU
Cooling Efficiency: 15.2 SEER2
Furnace Efficiency: 96% AFUE
Refrigerant Type: R-32
Installation Orientation: Horizontal

System Components Included

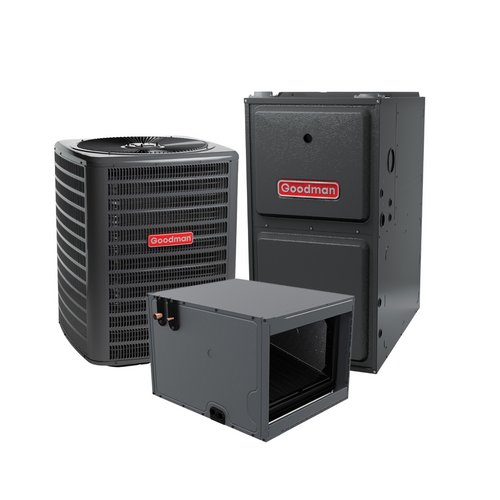

Goodman GLXS5BA1810 1.5 Ton 15.2 SEER2 R-32 Air Conditioner
Goodman GR9T960603BN 60,000 BTU 96% AFUE Two-Stage Gas Furnace
Goodman CHPTA2426B3 Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

This system requires compatible horizontal ductwork, gas and electrical connections, refrigerant lines, condensate drainage, and approved high-efficiency furnace venting. Professional installation and a proper HVAC load calculation are recommended.

Frequently Asked Questions

Does this system provide heating and cooling?

Yes. It includes an air conditioner for cooling and a gas furnace for heating.

Is the furnace single-stage or two-stage?

The Goodman GR9T960603BN is a two-stage gas furnace that adjusts its heating output according to comfort needs.

What does 96% AFUE mean?

It means approximately 96% of the furnace’s fuel is converted into usable heating energy.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

Is the horizontal evaporator coil included?

Yes. The Goodman CHPTA2426B3 cased horizontal evaporator coil is included.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

26.00 (in)

Height:

27.00 (in)

Depth:

26.00 (in)

Weight:

304.00 LBS

AHRI Certified:

Yes

Heating Stages:

Two Stage

Heating Input (BTU):

40,000 - 69,000 BTU

Electrical Phase:

1-Phase

Configuration:

Horizontal

Unit Weight:

181 lb

Liquid Line Size:

3/8 in

EER2:

12 EER2

Line Set Connection Type:

Braze

Electrical Frequency:

60 Hz

Vent Type:

PVC / Category IV

Refrigerant Type:

R-32

Product Category:

Gas Heating & Air Conditioner Bundle

Shipping Weight:

196 lb

Prop 65 Warning:

Yes

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SEER2:

15 SEER2

AHRI Reference Number:

215380152

Airflow (CFM):

1,200

Blower Motor Type:

ECM Constant Torque

AFUE:

96%+

Color:

Gray

Cabinet Width (in):

17.5

Capacity (Tons):

1.5

Cooling Capacity (BTU):

18,000

EER:

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA1810 - Nominal Capacity (Tons):

1.5

Condenser GLXS5BA1810 - Cooling Capacity (BTU/h):

18,000

Condenser GLXS5BA1810 - Refrigerant:

R-32

Condenser GLXS5BA1810 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA1810 - Minimum Circuit Ampacity (MCA):

11.1 A

Condenser GLXS5BA1810 - Maximum Overcurrent Protection (MOP):

15 A

Condenser GLXS5BA1810 - Compressor Type:

Scroll

Condenser GLXS5BA1810 - Compressor Stages:

Single Stage

Condenser GLXS5BA1810 - Liquid Line Size:

3/8 in

Condenser GLXS5BA1810 - Suction Line Size:

3/4 in

Condenser GLXS5BA1810 - Sound Level (dB):

Condenser GLXS5BA1810 - Unit Dimensions (W x D x H):

26 in x 26 in x 27 in

Condenser GLXS5BA1810 - Unit Weight:

116 lb

Condenser GLXS5BA1810 - Shipping Weight:

134 lb

Furnace GR9T960603BN - Input (BTU/h):

60,000

Furnace GR9T960603BN - Output (BTU/h):

58,200

Furnace GR9T960603BN - AFUE:

96%+

Furnace GR9T960603BN - Heating Stages:

Two Stage

Furnace GR9T960603BN - Blower Motor Type:

ECM Constant Torque

Furnace GR9T960603BN - Maximum Cooling Capacity (Tons):

Furnace GR9T960603BN - Configuration:

Upflow/Horizontal

Furnace GR9T960603BN - Cabinet Width:

17.5 in

Furnace GR9T960603BN - Vent Type:

PVC / Category IV

Furnace GR9T960603BN - Gas Type:

Propane Convertible

Furnace GR9T960603BN - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GR9T960603BN - Unit Dimensions (W x D x H):

17.5 in x 16 in x 13.875 in

Furnace GR9T960603BN - Shipping Weight:

115 lb

Evaporator Coil CHPTA2426B3 - Nominal Capacity (Tons):

Evaporator Coil CHPTA2426B3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA2426B3 - Configuration:

Horizontal

Evaporator Coil CHPTA2426B3 - Cabinet Width:

26 in

Evaporator Coil CHPTA2426B3 - Metering Device:

TXV

Evaporator Coil CHPTA2426B3 - Refrigerant:

R-32

Evaporator Coil CHPTA2426B3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA2426B3 - Suction Line Size:

3/4 in

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
