Description

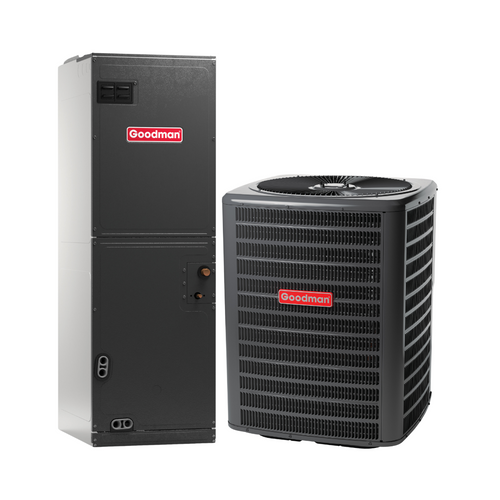

The Goodman GLXS4MA1810-AMST30BU1300 system combines a 1.5-ton GLXS4M R-32 condenser with an AMST30BU1300 multi-positional air handler. This split system offers 18,000 BTU cooling capacity with a 15.2 SEER2 efficiency rating and a 9.5 HSPF2 heating rating. The multi-positional air handler supports upflow, downflow, and horizontal mounting, suitable for residential, multifamily, and light commercial applications.
Performance
The condenser features a single-stage scroll compressor and a copper tube-enhanced aluminum fin coil for optimal heat transfer. The AMST30BU1300 air handler uses a direct-drive ECM blower motor delivering airflow tailored for a 2.5-ton capacity, ensuring consistent and energy-efficient performance.
Smart Features
This system supports compatibility with programmable and smart thermostats for zoning and remote control. The multi-speed ECM blower allows fine comfort adjustments, while thermostat integration enables seamless home automation connectivity.
Comfort & Noise
Airflow is adjustable to match system needs, with the condenser operating quietly around 68 dBA. The indoor unit incorporates foil-faced insulation and a thermoplastic condensate pan to reduce vibration and noise, enhancing indoor comfort.
Use Case Fit
Ideal for single-family homes, multifamily units, and light commercial spaces, the system’s flexible air handler installation options accommodate attics, closets, or basements. Suitable for a variety of climates, it offers efficient cooling in both humid and temperate regions.
Value & Reliability
Both components feature galvanized, powder-coated steel cabinets with corrosion-resistant coatings. The condenser includes a factory-installed filter drier and high-pressure safety switch, while the air handler’s SmartFrame™ cabinet is AHRI/ETL certified with less than 2% air leakage, ensuring durability and ease of service.
Summary Wrap-Up
The Goodman GLXS4MA1810-AMST30BU1300 system delivers energy-efficient, quiet, and flexible cooling ideal for diverse residential and light commercial applications. Its R-32 refrigerant and multi-positional air handler make it a smart, future-ready choice for HVAC professionals and homeowners alike.
- 15.2 SEER2 Efficiency: Reduces energy costs while meeting current efficiency standards.
- R-32 Refrigerant: Lower global warming potential for environmentally responsible cooling.
- Multi-Positional Air Handler: Configurable for upflow, downflow, or horizontal installation.
- Direct-Drive ECM Blower: Provides quiet and efficient airflow with precise control.
- Copper Tube-Aluminum Fin Coil: Enhances heat transfer and corrosion resistance.
- Durable Powder-Coated Steel Cabinets: Protect units from weather and wear.
- Factory-Installed Filter Drier & Safety Switch: Ensures reliable operation and refrigerant control.
About the Condenser (GLXS4MA1810)
The GLXS4MA1810 condenser provides 18,000 BTU cooling with a single-stage scroll compressor and copper tube-enhanced aluminum fin coil. It operates with R-32 refrigerant at a 15.2 SEER2 efficiency and includes factory-installed protection components. The galvanized, powder-coated steel cabinet offers corrosion resistance and quiet operation near 68 dBA.
About the Air Handler (AMST30BU1300)
The AMST30BU1300 air handler supports a 2.5-ton capacity with a direct-drive 9-speed ECM blower designed for precise airflow management. It features a multi-positional cabinet, an all-aluminum evaporator coil with a factory-installed TXV optimized for R-32 refrigerant, and a SmartFrame™ galvanized steel cabinet certified by AHRI/ETL for low air leakage.
