Description

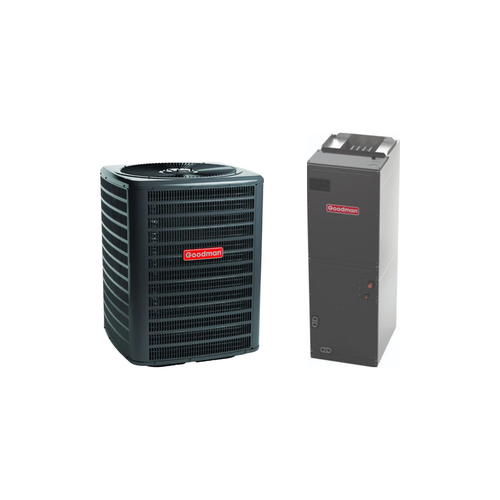

The Goodman GLXS4MA2410-AMST30BU1300 system combines a 2-ton GLXS4M R-32 condenser with a 2.5-ton AMST30BU1300 multi-positional air handler. This split system delivers 24,000 BTU cooling capacity with a 15.2 SEER2 efficiency rating and a 9.5 HSPF2 heating rating. The air handler supports flexible installation options — upflow, downflow, and horizontal — for residential and light commercial applications.
Performance
The condenser utilizes a single-stage scroll compressor and copper tube-enhanced aluminum fin coil to optimize heat transfer. The AMST30BU1300 air handler employs a direct-drive ECM blower motor that supports precise airflow control and energy-efficient operation for higher capacity loads.
Smart Features
Compatible with programmable and smart thermostats, this system enables zoning and remote control. The multi-speed ECM blower motor allows customizable airflow to match user comfort preferences and supports integration with home automation systems.
Comfort & Noise
The condenser operates at approximately 68 dBA, providing quiet cooling. The air handler features foil-faced insulation and a thermoplastic condensate pan, which reduce noise and vibration, contributing to enhanced indoor comfort.
Use Case Fit
Suitable for single-family homes, multifamily units, and light commercial spaces, this split system’s air handler can be installed in attics, closets, or basements. The system is effective across a variety of climates, delivering efficient cooling in both humid and temperate regions.
Value & Reliability
Both condenser and air handler feature galvanized, powder-coated steel cabinets with corrosion-resistant coatings. The condenser is equipped with factory-installed filter drier and high-pressure safety switch, while the air handler’s SmartFrame™ cabinet meets AHRI/ETL certification standards and ensures minimal air leakage.
Summary Wrap-Up
The Goodman GLXS4MA2410-AMST30BU1300 offers a flexible, energy-efficient, and quiet cooling solution ideal for residential and light commercial applications. Its R-32 refrigerant and multi-positional air handler design make it a smart, future-ready HVAC choice.
- 15.2 SEER2 Efficiency: Reduces energy consumption and utility costs.
- R-32 Refrigerant: Environmentally responsible refrigerant with low GWP.
- Multi-Positional Air Handler: Offers installation flexibility — upflow, downflow, or horizontal.
- Direct-Drive ECM Blower: Provides quiet, efficient airflow with precise control.
- Copper Tube-Aluminum Fin Coil: Ensures efficient heat transfer and durability.
- Durable Powder-Coated Steel Cabinets: Protect against corrosion and weather damage.
- Factory-Installed Filter Drier & Safety Switch: Enhances system reliability and refrigerant management.
About the Condenser (GLXS4MA2410)
The GLXS4MA2410 condenser delivers 24,000 BTU cooling with a single-stage scroll compressor and copper tube-enhanced aluminum fin coil. It operates on R-32 refrigerant with a 15.2 SEER2 efficiency rating and includes factory-installed components like a filter drier and high-pressure safety switch. Its galvanized, powder-coated steel cabinet provides durability and quiet operation at approximately 68 dBA.
About the Air Handler (AMST30BU1300)
The AMST30BU1300 air handler supports 2.5-ton capacity with a direct-drive 9-speed ECM blower motor for precise airflow. Its multi-positional cabinet allows flexible installation in upflow, downflow, or horizontal orientations. The unit includes an all-aluminum evaporator coil with a factory-installed TXV optimized for R-32 refrigerant. The SmartFrame™ galvanized steel cabinet meets AHRI/ETL standards for low air leakage and durability.
