Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9S800603BX CHPTA3630B3

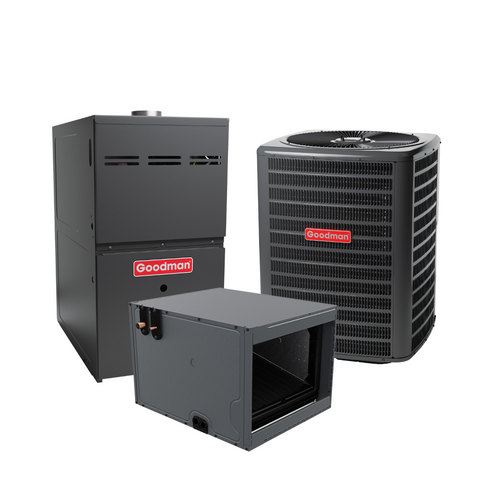

The Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA3010 / GR9S800603BX / CHPTA3630B3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2.5-ton R-32 air conditioner, 80% AFUE single-stage gas furnace, and 3-ton horizontal cased evaporator coil for energy-efficient cooling and reliable heating.

Designed for horizontal installation, the system features a single-stage gas valve and a multi-speed ECM blower motor for consistent airflow and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height installation areas.

Key Features

• 2.5 Ton Cooling Capacity – Delivers 30,000 BTU of residential cooling
• 16 SEER2 Efficiency – Provides energy-efficient cooling performance
• 60,000 BTU Gas Furnace – Delivers dependable single-stage heating
• 80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
• Multi-Speed ECM Blower – Supports consistent and efficient airflow
• Horizontal R-32 System – Suitable for limited-height installation areas

System Components Included

• Goodman GLXS5BA3010 2.5 Ton R-32 Air Conditioner
• Goodman GR9S800603BX 60,000 BTU 80% AFUE Single-Stage Gas Furnace
• Goodman CHPTA3630B3 3 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3010 / GR9S800603BX / CHPTA3630B3 system is designed for residential horizontal applications. The evaporator coil has a larger nominal capacity than the outdoor condenser and may be paired with the 2.5-ton air conditioner to support the rated system efficiency.

Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, condensate drainage, thermostat, and furnace venting must be confirmed before installation. The complete system combination and applicable AHRI-rated performance should also be verified.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2.5 Ton / 30,000 BTU
• Evaporator Coil Capacity: 3 Ton / 36,000 BTU nominal
• Heating Input: 60,000 BTU
• Heating Output: Approximately 48,000 BTU
• Cooling Efficiency: 16 SEER2
• Furnace Efficiency: 80% AFUE
• Heating Stages: Single Stage
• Blower Motor: Multi-Speed ECM
• Refrigerant: R-32
• Installation Orientation: Horizontal

Installation Notes

• Verify compatibility with the existing horizontal ductwork
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install properly sized and approved furnace venting
• Provide proper evaporator-coil condensate drainage
• Confirm the complete system’s AHRI-rated combination
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3010 air conditioner, GR9S800603BX gas furnace, and CHPTA3630B3 horizontal evaporator coil.

What is the cooling capacity of this system?

The system provides 2.5 tons or 30,000 BTU of cooling capacity.

Why does the system use a 3-ton evaporator coil with a 2.5-ton air conditioner?

A larger nominal evaporator coil may be paired with the 2.5-ton condenser to achieve the system’s intended efficiency and performance. The applicable AHRI-rated combination should be confirmed before installation.

Is the furnace single-stage or two-stage?

The Goodman GR9S800603BX is a single-stage gas furnace that provides consistent heating output.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy, providing an estimated heating output of 48,000 BTU.

Is this system designed for horizontal installation?

Yes. This system can be configured for horizontal installation, making it suitable for attics, crawl spaces, and similar limited-height locations.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
