Description

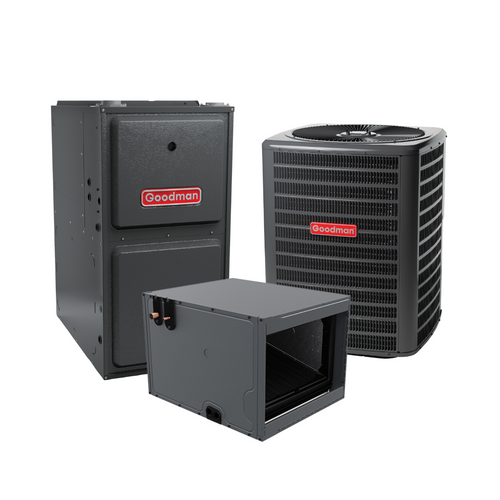

The Goodman 2.5 Ton 16 SEER2 92% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA3010 / GR9S920804CN / CHPTA3630C3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2.5-ton R-32 air conditioner, 92% AFUE high-efficiency gas furnace, and 3-ton horizontal cased evaporator coil for efficient cooling and reliable heating.
Designed for horizontal installation, the system features a single-stage gas furnace and a multi-speed ECM blower motor for consistent airflow and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height areas where approved high-efficiency venting and condensate drainage can be provided.
Key Features
- 2.5 Ton Cooling Capacity – Delivers 30,000 BTU of residential cooling
- 16 SEER2 Efficiency – Supports energy-efficient cooling performance
- 80,000 BTU Gas Furnace – Provides dependable single-stage heating
- 92% AFUE Efficiency – Converts approximately 92% of fuel into usable heat
- Multi-Speed ECM Blower – Promotes consistent airflow and efficient operation
- Horizontal Configuration – Suitable for attics, crawl spaces, and limited-height areas
- 3 Ton Evaporator Coil – Paired with the 2.5-ton condenser to support the matched-system efficiency
- R-32 Refrigerant System – Uses next-generation refrigerant technology
System Components Included
- Goodman GLXS5BA3010 2.5 Ton 16 SEER2 R-32 Air Conditioner
- Goodman GR9S920804CN 80,000 BTU 92% AFUE Single-Stage Gas Furnace
- Goodman CHPTA3630C3 3 Ton Cased Horizontal R-32 Evaporator Coil
Compatibility & Installation Notes
The GLXS5BA3010 / GR9S920804CN / CHPTA3630C3 system is configured for residential horizontal applications. The 3-ton evaporator coil is paired with the 2.5-ton air conditioner as part of the complete matched-system configuration. The equipment combination and stated efficiency should be verified using the applicable AHRI certification.
Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, approved high-efficiency furnace venting, and condensate drainage must be confirmed before installation.
Installation Notes
- Verify compatibility with the existing horizontal ductwork
- Confirm the complete equipment combination and AHRI-rated efficiency
- Confirm electrical service and natural gas connection requirements
- Check the required refrigerant line sizes before installation
- Install approved high-efficiency furnace venting
- Provide proper furnace and evaporator-coil condensate drainage
- Maintain the required equipment clearances and service access
- Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What is included in this Goodman HVAC system?
The package includes the GLXS5BA3010 air conditioner, GR9S920804CN gas furnace, and CHPTA3630C3 horizontal evaporator coil.
What is the cooling capacity of this system?
The air conditioner provides 2.5 tons or 30,000 BTU of cooling capacity.
Why is a 3-ton evaporator coil paired with a 2.5-ton air conditioner?
A larger evaporator coil may be used in an approved matched combination to help achieve the specified 16 SEER2 efficiency. The complete system pairing should be verified through its applicable AHRI certification.
Is the furnace single-stage or two-stage?
The Goodman GR9S920804CN is a single-stage gas furnace that provides consistent heating output.
What does 92% AFUE mean?
It means approximately 92% of the furnace’s fuel is converted into usable heating energy, providing an estimated heating output of 73,600 BTU.
Does this furnace require condensate drainage?
Yes. As a high-efficiency condensing furnace, it requires approved furnace condensate drainage in addition to drainage for the evaporator coil.
Does this system use R-32 refrigerant?
Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
