Goodman 2.5 Ton 16 SEER2 96% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9T960803BN CHPTA3630B3

The Goodman 2.5 Ton 16 SEER2 96% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA3010 / GR9T960803BN / CHPTA3630B3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2.5-ton R-32 air conditioner, 96% AFUE high-efficiency gas furnace, and 3-ton horizontal cased evaporator coil for energy-efficient cooling and heating.

Designed for horizontal installation, the system features a two-stage gas furnace and a multi-speed ECM blower motor for enhanced comfort, consistent airflow, and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height installation areas where approved high-efficiency furnace venting and condensate drainage can be provided.

Key Features

• 2.5 Ton Cooling Capacity – Delivers 30,000 BTU of residential cooling
• 16 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable residential heating
• Two-Stage Heating – Adjusts heating output according to comfort demand
• 96% AFUE Efficiency – Converts approximately 96% of fuel into usable heat
• Multi-Speed ECM Blower – Promotes consistent airflow and efficient operation
• Horizontal Configuration – Suitable for attics, crawl spaces, and limited-height areas
• 3 Ton Evaporator Coil – Paired with the 2.5-ton condenser to support the matched-system efficiency
• R-32 Refrigerant System – Uses next-generation refrigerant technology

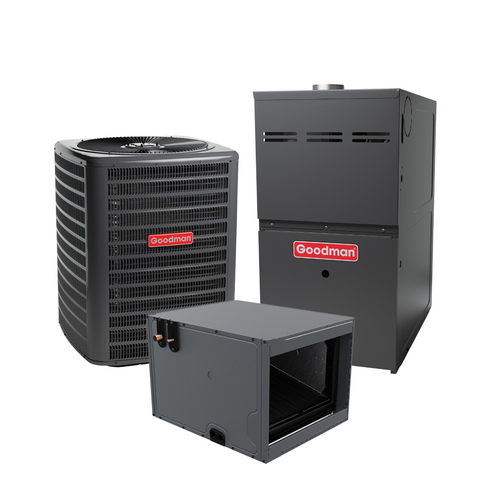

System Components Included

• Goodman GLXS5BA3010 2.5 Ton 16 SEER2 R-32 Air Conditioner
• Goodman GR9T960803BN 80,000 BTU 96% AFUE Two-Stage Gas Furnace
• Goodman CHPTA3630B3 3 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3010 / GR9T960803BN / CHPTA3630B3 system is configured for residential horizontal applications. The 3-ton evaporator coil is paired with the 2.5-ton air conditioner as part of the matched system. The complete combination and claimed efficiency should be verified using the applicable AHRI certification.

Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, approved high-efficiency venting, and condensate drainage must be confirmed before installation. A compatible two-stage thermostat is recommended to access the furnace’s full staged-heating capability.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2.5 Ton / 30,000 BTU
• Evaporator Coil Capacity: 3 Ton
• Heating Input: 80,000 BTU
• Heating Output: Approximately 76,800 BTU
• Cooling Efficiency: 16 SEER2
• Furnace Efficiency: 96% AFUE
• Furnace Stages: Two Stage
• Blower Motor: Multi-Speed ECM
• Refrigerant: R-32
• Installation Orientation: Horizontal

Installation Notes

• Verify compatibility with the existing horizontal ductwork
• Confirm the complete equipment combination and AHRI-rated efficiency
• Install a compatible two-stage thermostat for full staged operation
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved high-efficiency furnace venting
• Provide proper furnace and evaporator-coil condensate drainage
• Maintain the required clearances and service access
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3010 air conditioner, GR9T960803BN gas furnace, and CHPTA3630B3 horizontal evaporator coil.

What is the cooling capacity of this system?

The air conditioner provides 2.5 tons or 30,000 BTU of cooling capacity.

Why is a 3-ton evaporator coil paired with a 2.5-ton air conditioner?

A larger evaporator coil may be used in an approved equipment combination to help achieve the specified 16 SEER2 efficiency. The complete system match should be confirmed through its AHRI certification.

Is the furnace single-stage or two-stage?

The Goodman GR9T960803BN is a two-stage gas furnace that can operate at a lower heating level during moderate demand and increase its output when additional heat is required.

Does this system require a two-stage thermostat?

A compatible two-stage thermostat is recommended to provide proper control and access the furnace’s full two-stage heating capability.

What does 96% AFUE mean?

It means approximately 96% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 76,800 BTU.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
