Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GD9T800603BX CHPTA3026B3

Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GD9T800603BX CHPTA3026B3

Name: Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GD9T800603BX CHPTA3026B3
Brand: Goodman
SKU: GLXS5BA2410-GD9T800603BX-CHPTA3026B3
Price: 4847 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA2410-GD9T800603BX-CHPTA3026B3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

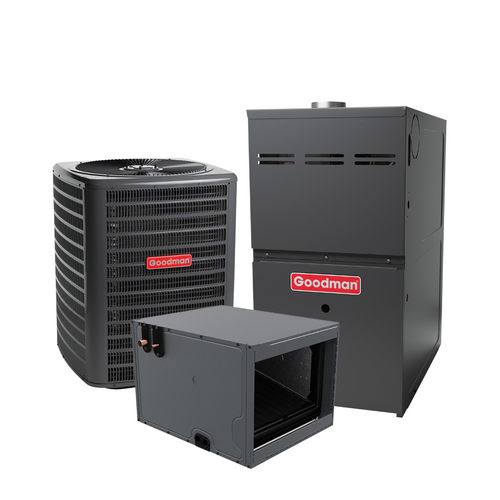

Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS5BA2410 GD9T800603BX CHPTA3026B3 - view 5

UPC:
Condition:: New
Width:: 29.00 (in)
Height:: 32.00 (in)
Depth:: 29.00 (in)

Questions about Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GD9T800603BX CHPTA3026B3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$4,847.00

Overview

Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GD9T800603BX CHPTA3026B3

Product details

Description

The Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA2410 / GD9T800603BX / CHPTA3026B3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 80% AFUE gas furnace, and horizontal cased evaporator coil for efficient cooling and reliable heating.

Designed for horizontal installation, the system features a two-stage gas furnace that adjusts its heating output according to indoor comfort requirements. Its multi-speed ECM blower motor promotes consistent airflow, improved temperature control, and efficient operation.

Key Features

2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
15.2 SEER2 Efficiency – Supports efficient cooling performance
60,000 BTU Two-Stage Furnace – Provides flexible and dependable heating
Multi-Speed ECM Blower – Promotes consistent airflow and indoor comfort
Horizontal R-32 System – Suitable for limited-height installation areas

System Components Included

Goodman GLXS5BA2410 2 Ton 15.2 SEER2 R-32 Air Conditioner
Goodman GD9T800603BX 60,000 BTU 80% AFUE Two-Stage Gas Furnace
Goodman CHPTA3026B3 Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GD9T800603BX / CHPTA3026B3 system is designed for residential horizontal applications. Compatibility with the property’s ductwork, electrical service, gas supply, refrigerant lines, drainage system, and furnace venting must be confirmed before installation.

Installation Notes

Verify compatibility with the existing horizontal ductwork
Confirm electrical service and natural gas connection requirements
Check the required refrigerant line sizes before installation
Install approved metal flue venting and proper condensate drainage
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GD9T800603BX gas furnace, and CHPTA3026B3 horizontal evaporator coil.

What is the cooling capacity of this system?

The system provides 2 tons or 24,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GD9T800603BX is a two-stage gas furnace that adjusts its heating output based on comfort requirements.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

29.00 (in)

Height:

32.00 (in)

Depth:

29.00 (in)

Weight:

333.00 LBS

Product Category:

Gas Heating & Air Conditioner Bundle

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

AHRI Certified:

Yes

Configuration:

Horizontal

Capacity (Tons):

AFUE:

80%

AHRI Reference Number:

215380384

Vent Type:

Chimney / Category I

SEER2:

15 SEER2

Shipping Weight:

195 lb

EER2:

12 EER2

Airflow (CFM):

1,200

Blower Motor Type:

ECM Constant Torque

Cabinet Width (in):

17.5

Color:

Gray

Heating Stages:

Two Stage

Prop 65 Warning:

Yes

Refrigerant Type:

R-32

Electrical Phase:

1-Phase

Liquid Line Size:

3/8 in

Electrical Frequency:

60 Hz

Line Set Connection Type:

Braze

Heating Input (BTU):

40,000 - 69,000 BTU

Unit Weight:

180 lb

Cooling Capacity (BTU):

24,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA2410 - Nominal Capacity (Tons):

Condenser GLXS5BA2410 - Cooling Capacity (BTU/h):

24,000

Condenser GLXS5BA2410 - Refrigerant:

R-32

Condenser GLXS5BA2410 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA2410 - Minimum Circuit Ampacity (MCA):

13.8 A

Condenser GLXS5BA2410 - Maximum Overcurrent Protection (MOP):

20 A

Condenser GLXS5BA2410 - Compressor Type:

Scroll

Condenser GLXS5BA2410 - Compressor Stages:

Single Stage

Condenser GLXS5BA2410 - Liquid Line Size:

3/8 in

Condenser GLXS5BA2410 - Suction Line Size:

3/4 in

Condenser GLXS5BA2410 - Sound Level (dB):

Condenser GLXS5BA2410 - Shipping Weight:

167 lb

Furnace GD9T800603BX - Input (BTU/h):

60,000

Furnace GD9T800603BX - Output (BTU/h):

48,000

Furnace GD9T800603BX - AFUE:

80%

Furnace GD9T800603BX - Heating Stages:

Two Stage

Furnace GD9T800603BX - Blower Motor Type:

ECM Constant Torque

Furnace GD9T800603BX - Maximum Cooling Capacity (Tons):

Furnace GD9T800603BX - Configuration:

Downflow/Horizontal

Furnace GD9T800603BX - Cabinet Width:

17.5 in

Furnace GD9T800603BX - Vent Type:

Chimney / Category I

Furnace GD9T800603BX - Gas Type:

Propane Convertible

Furnace GD9T800603BX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GD9T800603BX - Unit Dimensions (W x D x H):

17.5 in x 28 in x 16 in

Furnace GD9T800603BX - Shipping Weight:

107 lb

Evaporator Coil CHPTA3026B3 - Nominal Capacity (Tons):

2.5

Evaporator Coil CHPTA3026B3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA3026B3 - Configuration:

Horizontal

Evaporator Coil CHPTA3026B3 - Cabinet Width:

26 in

Evaporator Coil CHPTA3026B3 - Metering Device:

TXV

Evaporator Coil CHPTA3026B3 - Refrigerant:

R-32

Evaporator Coil CHPTA3026B3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA3026B3 - Suction Line Size:

3/4 in

System Type:

Gas Electric Split System

Cooling Capacity:

2 Ton / 24,000 BTU

Heating Output:

Approximately 48,000 BTU

Cooling Efficiency:

15.2 SEER2

Furnace Efficiency:

80% AFUE

Refrigerant / Orientation:

R-32 / Horizontal

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
