Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA2410 GR9S800603BX CAPTA3022B3

Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA2410 GR9S800603BX CAPTA3022B3

Name: Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA2410 GR9S800603BX CAPTA3022B3
Brand: Goodman
SKU: GLXS4BA2410-GR9S800603BX-CAPTA3022B3
Price: 4239 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS4BA2410-GR9S800603BX-CAPTA3022B3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

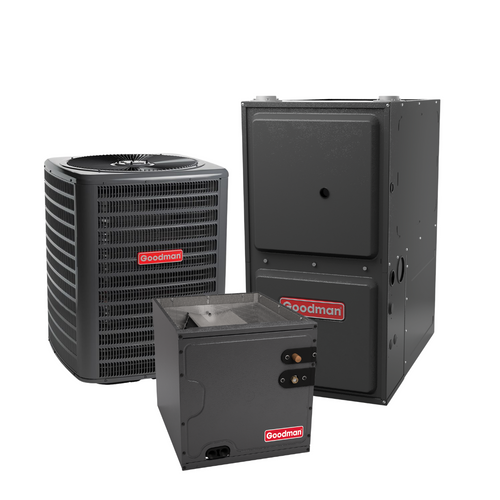

Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32, model GLXS4BA2410 GR9S800603BX CAPTA3022B3 - view 5

UPC:
Condition:: New
Width:: 26.00 (in)
Height:: 32.50 (in)
Depth:: 26.00 (in)

Questions about Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA2410 GR9S800603BX CAPTA3022B3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$4,239.00

Overview

Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA2410 GR9S800603BX CAPTA3022B3

Product details

Description

The Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 (GLXS4BA2410 / GR9S800603BX / CAPTA3022B3) is a complete residential heating and cooling solution designed to deliver dependable year-round comfort with improved efficiency. This matched split system combines a 2-ton R-32 air conditioner condenser, cased evaporator coil, and 80% AFUE gas furnace to provide reliable cooling performance and efficient heating for residential applications.

The system includes the Goodman GLXS4BA2410 air conditioner condenser, providing 24,000 BTU (2-ton) cooling capacity with up to 15.2 SEER2 efficiency and modern R-32 refrigerant technology. The matched GR9S800603BX gas furnace provides 60,000 BTU heating input with 80% AFUE efficiency, delivering dependable heating performance with a multi-speed blower motor for improved airflow control and comfort.

The included CAPTA3022B3 cased evaporator coil is designed for matched system operation and optimized for R-32 refrigerant applications. The coil features factory-installed expansion technology to help provide consistent refrigerant control and efficient heat transfer.

Built with Goodman’s reliable HVAC components, R-32 refrigerant compatibility, multi-speed blower technology, and upflow installation configuration, the GLXS4BA2410 / GR9S800603BX / CAPTA3022B3 system is an excellent choice for residential replacement projects and new HVAC installations requiring dependable heating and cooling performance.

Key Features

Complete Heating & Cooling System – Includes outdoor condenser, indoor evaporator coil, and gas furnace
2 Ton Cooling Capacity – Provides 24,000 BTU cooling performance for residential applications
15.2 SEER2 Efficiency Rating – Helps improve cooling efficiency and energy performance
60,000 BTU Gas Furnace – Provides reliable heating capacity for residential comfort
80% AFUE Furnace Efficiency – Converts fuel energy into effective home heating
R-32 Refrigerant Compatible – Uses modern refrigerant technology for improved system performance
Single-Stage Cooling Operation – Provides simple and dependable cooling control
Multi-Speed Blower Motor – Helps maintain consistent airflow and indoor comfort
Upflow Installation Configuration – Designed for applications where airflow is directed upward
Cased Evaporator Coil Included – Provides matched system performance
Factory-Matched Components – Designed for reliable Goodman system operation
Residential HVAC Application – Suitable for replacement and new installations

System Components Included

Goodman GLXS4BA2410 Air Conditioner Condenser

Capacity: 2 Ton / 24,000 BTU
Efficiency: Up to 15.2 SEER2
Operation: Single Stage
Refrigerant: R-32
Compressor Type: Single Stage
Voltage: 208/230V, 1 Phase
Liquid Line: 3/8"
Suction Line: 3/4"
Application: Split Air Conditioning System

Goodman CAPTA3022B3 Evaporator Coil

Type: Cased Evaporator Coil
Capacity: 2 Ton Application
Configuration: Upflow Compatible
Refrigerant: R-32 Compatible
Expansion Device: Factory Installed TXV
Cabinet Width: 17.5"
Application: Matched Indoor Coil

Goodman GR9S800603BX Gas Furnace

Heating Input: 60,000 BTU
Efficiency: 80% AFUE
Operation: Single Stage
Blower Motor: Multi-Speed
Configuration: Upflow
Heating Output: Approximately 48,000 BTU
Fuel Type: Natural Gas

Compatibility / Installation Notes

The Goodman GLXS4BA2410 GR9S800603BX CAPTA3022B3 System is designed for:

Residential Cooling Applications
Residential Gas Heating Applications
Split HVAC System Installations
Upflow Furnace Configurations
R-32 Refrigerant Systems
New Installations and Replacement Projects

Installation Notes

Verify compatibility with existing ductwork, electrical requirements, and gas connections before installation
Confirm refrigerant line sizing before installation
Ensure proper furnace venting according to local building codes
Check airflow requirements for upflow installation
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?
This package includes the GLXS4BA2410 air conditioner condenser, CAPTA3022B3 evaporator coil, and GR9S800603BX gas furnace.

What is the cooling capacity of this system?
The system provides 2 tons (24,000 BTU) of cooling capacity.

What is the furnace heating capacity?
The furnace provides 60,000 BTU input with 80% AFUE efficiency, producing approximately 48,000 BTU heating output.

What refrigerant does this system use?
The air conditioning system uses R-32 refrigerant.

What is the difference between upflow and downflow installation?
An upflow system pulls return air from the bottom and delivers conditioned air upward through ductwork, making it suitable for applications where supply ducts are located above the furnace.

Is this a complete HVAC system?
Yes. It includes the major indoor and outdoor components required for a complete gas-electric split heating and cooling system.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

26.00 (in)

Height:

32.50 (in)

Depth:

26.00 (in)

Weight:

293.00 LBS

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

AHRI Certified:

Yes

Capacity (Tons):

Product Category:

Gas Heating & Air Conditioner Bundle

Configuration:

Upflow

Vent Type:

Chimney / Category I

Refrigerant Type:

R-32

Prop 65 Warning:

Yes

Shipping Weight:

272 lb

SEER2:

15 SEER2

Blower Motor Type:

ECM Constant Torque

Airflow (CFM):

1,200

AHRI Reference Number:

215214663

Cabinet Width (in):

17.5

AFUE:

80%

Color:

Gray

Electrical Phase:

1-Phase

Line Set Connection Type:

Braze

Unit Weight:

242 lb

Heating Stages:

Single Stage

Electrical Frequency:

60 Hz

Heating Input (BTU):

40,000 - 69,000 BTU

Liquid Line Size:

3/8 in

EER2:

12 EER2

Cooling Capacity (BTU):

24,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS4BA2410 - Nominal Capacity (Tons):

Condenser GLXS4BA2410 - Cooling Capacity (BTU/h):

24,000

Condenser GLXS4BA2410 - Refrigerant:

R-32

Condenser GLXS4BA2410 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS4BA2410 - Minimum Circuit Ampacity (MCA):

10.9 A

Condenser GLXS4BA2410 - Maximum Overcurrent Protection (MOP):

15 A

Condenser GLXS4BA2410 - Compressor Type:

Rotary

Condenser GLXS4BA2410 - Compressor Stages:

Single Stage

Condenser GLXS4BA2410 - Liquid Line Size:

3/8 in

Condenser GLXS4BA2410 - Suction Line Size:

3/4 in

Condenser GLXS4BA2410 - Sound Level (dB):

Condenser GLXS4BA2410 - Unit Dimensions (W x D x H):

26 in x 26 in x 27 in

Condenser GLXS4BA2410 - Unit Weight:

117 lb

Condenser GLXS4BA2410 - Shipping Weight:

132 lb

Furnace GR9S800603BX - Input (BTU/h):

60,000

Furnace GR9S800603BX - Output (BTU/h):

48,000

Furnace GR9S800603BX - AFUE:

80%

Furnace GR9S800603BX - Heating Stages:

Single Stage

Furnace GR9S800603BX - Blower Motor Type:

ECM Constant Torque

Furnace GR9S800603BX - Maximum Cooling Capacity (Tons):

Furnace GR9S800603BX - Configuration:

Upflow/Horizontal

Furnace GR9S800603BX - Cabinet Width:

17.5 in

Furnace GR9S800603BX - Vent Type:

Chimney / Category I

Furnace GR9S800603BX - Gas Type:

Propane Convertible

Furnace GR9S800603BX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GR9S800603BX - Unit Dimensions (W x D x H):

17.5 in x 28 in x 33.375 in

Furnace GR9S800603BX - Shipping Weight:

100 lb

Evaporator Coil CAPTA3022B3 - Nominal Capacity (Tons):

2.5

Evaporator Coil CAPTA3022B3 - Cased/Uncased:

Cased

Evaporator Coil CAPTA3022B3 - Configuration:

Upflow/Downflow

Evaporator Coil CAPTA3022B3 - Cabinet Width:

17.5 in

Evaporator Coil CAPTA3022B3 - Metering Device:

TXV

Evaporator Coil CAPTA3022B3 - Refrigerant:

R-32

Evaporator Coil CAPTA3022B3 - Liquid Line Size:

3/8 in

Evaporator Coil CAPTA3022B3 - Suction Line Size:

3/4 in

Model Combination:

GLXS4BA2410 / GR9S800603BX / CAPTA3022B3

System Type:

Gas Electric Split System

Cooling Capacity:

2 Ton (24,000 BTU)

Heating Output:

Approximately 48,000 BTU

Cooling Efficiency:

15.2 SEER2

Heating Efficiency:

80% AFUE

Blower Motor:

Multi-Speed

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
