Goodman 2 Ton 15.2 SEER2 92% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9S920803BN CHPTA2426B3

The Goodman 2 Ton 15.2 SEER2 92% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA2410 / GR9S920803BN / CHPTA2426B3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 92% AFUE gas furnace, and horizontal cased evaporator coil for energy-efficient cooling and high-efficiency heating.

Designed for horizontal installation, the system features a single-stage gas furnace and a multi-speed ECM blower motor for consistent airflow and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height installation areas.

Key Features

• 2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
• 15.2 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable single-stage heating
• 92% AFUE Efficiency – Converts approximately 92% of fuel into usable heat
• Multi-Speed ECM Blower – Supports consistent and efficient airflow
• Horizontal R-32 System – Suitable for limited-height installation areas

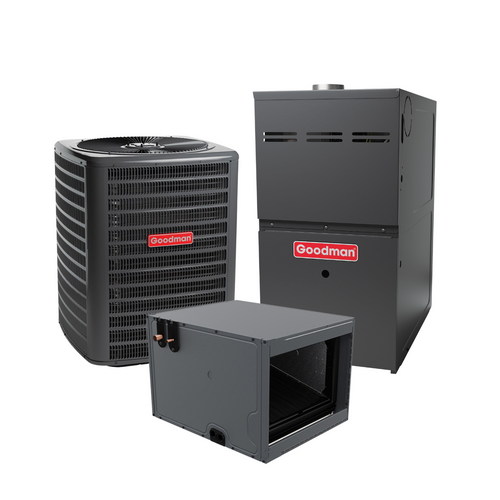

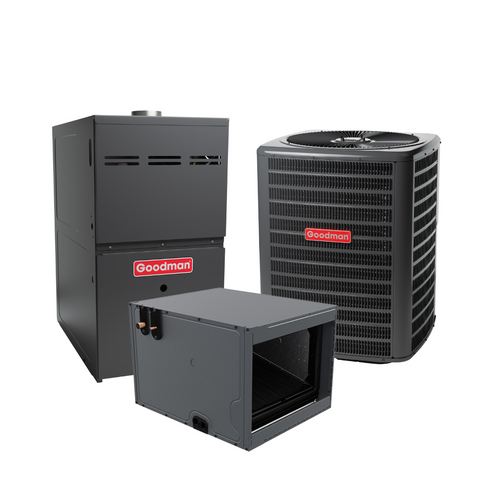

System Components Included

• Goodman GLXS5BA2410 2 Ton 15.2 SEER2 R-32 Air Conditioner
• Goodman GR9S920803BN 80,000 BTU 92% AFUE Single-Stage Gas Furnace
• Goodman CHPTA2426B3 2 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GR9S920803BN / CHPTA2426B3 system is designed for residential horizontal applications. Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, condensate drainage, and high-efficiency furnace venting must be confirmed before installation.

The complete system combination and applicable AHRI-rated performance should also be verified before purchase and installation.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2 Ton / 24,000 BTU
• Heating Input: 80,000 BTU
• Heating Output: Approximately 73,600 BTU
• Cooling Efficiency: 15.2 SEER2
• Furnace Efficiency: 92% AFUE
• Heating Stages: Single Stage
• Blower Motor: Multi-Speed ECM
• Refrigerant: R-32
• Installation Orientation: Horizontal

Installation Notes

• Verify compatibility with the existing horizontal ductwork
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved high-efficiency furnace venting
• Provide proper furnace and evaporator-coil condensate drainage
• Confirm the complete system’s AHRI-rated combination
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GR9S920803BN gas furnace, and CHPTA2426B3 horizontal evaporator coil.

What is the cooling capacity of this system?

The system provides 2 tons or 24,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GR9S920803BN is a single-stage gas furnace that provides consistent heating output.

What does 92% AFUE mean?

It means approximately 92% of the furnace’s fuel is converted into usable heating energy, providing an estimated heating output of 73,600 BTU.

Is this system designed for horizontal installation?

Yes. This system can be configured for horizontal installation, making it suitable for attics, crawl spaces, and similar limited-height areas.

Does a 92% AFUE furnace require condensate drainage?

Yes. As a high-efficiency condensing furnace, it requires an approved condensate drain and appropriate venting installed according to applicable codes and manufacturer instructions.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
