Goodman 2 Ton 15.2 SEER2 96% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9T960804CN CHPTA2426C3

The Goodman 2 Ton 15.2 SEER2 96% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA2410 / GR9T960804CN / CHPTA2426C3) is a complete residential heating and cooling solution designed for efficient year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 96% AFUE two-stage gas furnace, and horizontal cased evaporator coil for energy-efficient cooling and high-efficiency heating.

Designed for horizontal installation, the system features a two-stage gas valve and a multi-speed ECM blower motor for improved temperature control, consistent airflow, and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height installation areas.

Key Features

• 2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
• 15.2 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable residential heating
• Two-Stage Heating – Adjusts heating output according to indoor comfort requirements
• 96% AFUE Efficiency – Converts approximately 96% of fuel into usable heat
• Multi-Speed ECM Blower – Supports consistent and efficient airflow
• Horizontal R-32 System – Suitable for limited-height installation areas

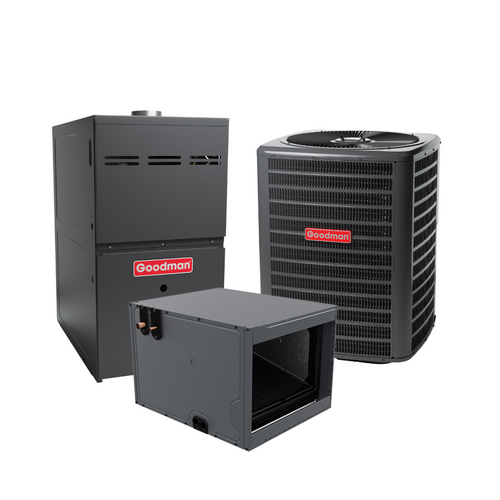

System Components Included

• Goodman GLXS5BA2410 2 Ton 15.2 SEER2 R-32 Air Conditioner
• Goodman GR9T960804CN 80,000 BTU 96% AFUE Two-Stage Gas Furnace
• Goodman CHPTA2426C3 2 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GR9T960804CN / CHPTA2426C3 system is designed for residential horizontal applications. Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, condensate drainage, thermostat, and high-efficiency furnace venting must be confirmed before installation.

A compatible two-stage thermostat is recommended to access the furnace’s full staging capabilities. The complete system combination and applicable AHRI-rated performance should also be verified before purchase and installation.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2 Ton / 24,000 BTU
• Evaporator Coil Capacity: 2 Ton / 24,000 BTU nominal
• Heating Input: 80,000 BTU
• Heating Output: Approximately 76,800 BTU
• Cooling Efficiency: 15.2 SEER2
• Furnace Efficiency: 96% AFUE
• Heating Stages: Two Stage
• Blower Motor: Multi-Speed ECM
• Refrigerant: R-32
• Installation Orientation: Horizontal

Installation Notes

• Verify compatibility with the existing horizontal ductwork
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved high-efficiency furnace venting
• Provide proper furnace and evaporator-coil condensate drainage
• Confirm thermostat compatibility with two-stage heating
• Verify the complete system’s AHRI-rated combination
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GR9T960804CN gas furnace, and CHPTA2426C3 horizontal evaporator coil.

What is the cooling capacity of this system?

The system provides 2 tons or 24,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GR9T960804CN is a two-stage gas furnace. It can operate at a lower heating level during milder conditions and increase its output when additional heat is required.

What does 96% AFUE mean?

It means approximately 96% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 76,800 BTU.

Does this furnace require condensate drainage?

Yes. As a high-efficiency condensing furnace, it requires an approved condensate drain and appropriate venting installed according to applicable codes and manufacturer instructions.

Is this system designed for horizontal installation?

Yes. This system can be configured for horizontal installation, making it suitable for attics, crawl spaces, and similar limited-height locations.

Does this system require a two-stage thermostat?

A compatible two-stage thermostat is recommended to provide direct control over both furnace heating stages. Final thermostat requirements should be confirmed with the installer.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
