Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9T800804CX CHPTA3026C3

Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9T800804CX CHPTA3026C3

Name: Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9T800804CX CHPTA3026C3
Brand: Goodman
SKU: GLXS5BA2410-GR9T800804CX-CHPTA3026C3
Price: 4958 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA2410-GR9T800804CX-CHPTA3026C3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS5BA2410 GR9T800804CX CHPTA3026C3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 40.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9T800804CX CHPTA3026C3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$4,958.00

Overview

Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA2410 GR9T800804CX CHPTA3026C3

Product details

Description

The Goodman 2 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA2410 / GR9T800804CX / CHPTA3026C3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 80% AFUE gas furnace, and 2.5-ton horizontal cased evaporator coil for efficient cooling and reliable heating.

Designed for horizontal installation, the system features a two-stage gas furnace and multi-speed ECM blower motor for improved temperature control, consistent airflow, and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height installation areas.

Key Features

2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
16 SEER2 Efficiency – Provides energy-efficient cooling performance
80,000 BTU Gas Furnace – Delivers dependable residential heating
Two-Stage Heating – Adjusts heating output for improved comfort and efficiency
80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
Multi-Speed ECM Blower – Supports consistent and efficient airflow
Horizontal R-32 System – Suitable for limited-height installation areas

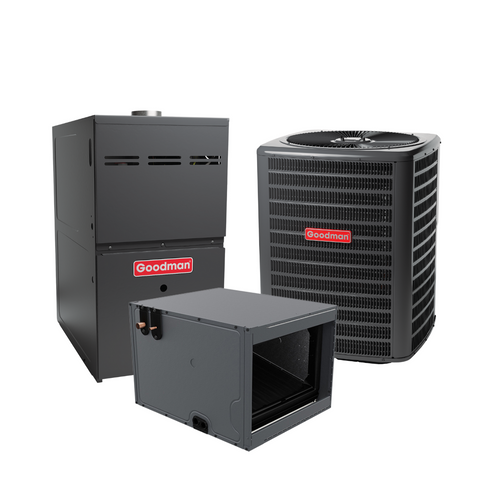

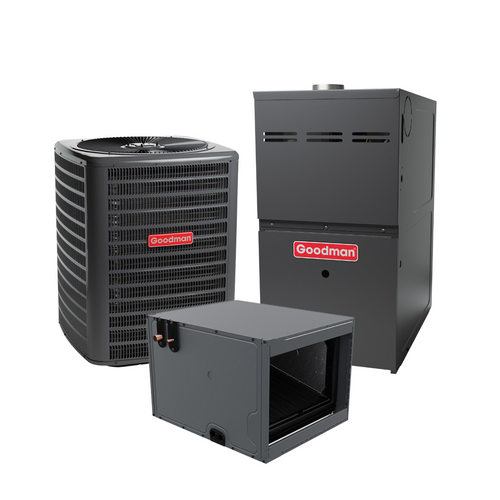

System Components Included

Goodman GLXS5BA2410 2 Ton R-32 Air Conditioner
Goodman GR9T800804CX 80,000 BTU 80% AFUE Two-Stage Gas Furnace
Goodman CHPTA3026C3 2.5 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GR9T800804CX / CHPTA3026C3 system is designed for residential horizontal applications. The evaporator coil has a larger nominal capacity than the outdoor condenser and may be paired with the 2-ton air conditioner to support the rated system efficiency.

Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, condensate drainage, and furnace venting must be confirmed before installation. The applicable AHRI-rated match should also be verified.

The GR9T800804CX furnace specifications include an 80,000 BTU input, two-stage burner, multi-speed blower, and upflow/horizontal installation capability.

Installation Notes

Verify compatibility with the existing horizontal ductwork
Confirm electrical service and natural gas connection requirements
Check the required refrigerant line sizes before installation
Install properly sized and approved furnace venting
Provide proper evaporator-coil condensate drainage
Confirm the complete system’s AHRI-rated combination
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GR9T800804CX gas furnace, and CHPTA3026C3 horizontal evaporator coil.

What is the cooling capacity of this system?

The system provides 2 tons or 24,000 BTU of cooling capacity.

Why does the system use a 2.5-ton evaporator coil with a 2-ton air conditioner?

A larger nominal evaporator coil may be paired with the 2-ton condenser to achieve the system’s intended efficiency and performance. The applicable AHRI-rated combination should be confirmed before installation.

Is the furnace single-stage or two-stage?

The Goodman GR9T800804CX is a two-stage gas furnace, allowing it to operate at a lower heating level during mild conditions and increase output when additional heat is required.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 64,000 BTU.

Is this system designed for horizontal installation?

Yes. This system is configured for horizontal installation, making it suitable for attics, crawl spaces, and similar limited-height locations.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

40.00 (in)

Depth:

40.00 (in)

Weight:

408.00 LBS

Capacity (Tons):

Configuration:

Horizontal

Product Category:

Gas Heating & Air Conditioner Bundle

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

AHRI Certified:

Yes

Blower Motor Type:

ECM Constant Torque

Color:

Gray

AFUE:

80%

Cabinet Width (in):

Airflow (CFM):

1,600

AHRI Reference Number:

215380408

Prop 65 Warning:

Yes

Shipping Weight:

220 lb

Vent Type:

Chimney / Category I

SEER2:

16 SEER2

Refrigerant Type:

R-32

Electrical Phase:

1-Phase

Electrical Frequency:

60 Hz

Heating Stages:

Two Stage

EER2:

12 EER2

Heating Input (BTU):

70,000 - 99,000 BTU

Unit Weight:

205 lb

Liquid Line Size:

3/8 in

Line Set Connection Type:

Braze

Cooling Capacity (BTU):

24,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA2410 - Nominal Capacity (Tons):

Condenser GLXS5BA2410 - Cooling Capacity (BTU/h):

24,000

Condenser GLXS5BA2410 - Refrigerant:

R-32

Condenser GLXS5BA2410 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA2410 - Minimum Circuit Ampacity (MCA):

13.8 A

Condenser GLXS5BA2410 - Maximum Overcurrent Protection (MOP):

20 A

Condenser GLXS5BA2410 - Compressor Type:

Scroll

Condenser GLXS5BA2410 - Compressor Stages:

Single Stage

Condenser GLXS5BA2410 - Liquid Line Size:

3/8 in

Condenser GLXS5BA2410 - Suction Line Size:

3/4 in

Condenser GLXS5BA2410 - Sound Level (dB):

Condenser GLXS5BA2410 - Shipping Weight:

167 lb

Furnace GR9T800804CX - Input (BTU/h):

80,000

Furnace GR9T800804CX - Output (BTU/h):

64,000

Furnace GR9T800804CX - AFUE:

80%

Furnace GR9T800804CX - Heating Stages:

Two Stage

Furnace GR9T800804CX - Blower Motor Type:

ECM Constant Torque

Furnace GR9T800804CX - Maximum Cooling Capacity (Tons):

Furnace GR9T800804CX - Configuration:

Upflow/Horizontal

Furnace GR9T800804CX - Cabinet Width:

21 in

Furnace GR9T800804CX - Vent Type:

Chimney / Category I

Furnace GR9T800804CX - Gas Type:

Propane Convertible

Furnace GR9T800804CX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GR9T800804CX - Unit Dimensions (W x D x H):

21 in x 28 in x 33.375 in

Furnace GR9T800804CX - Shipping Weight:

129 lb

Evaporator Coil CHPTA3026C3 - Nominal Capacity (Tons):

2.5

Evaporator Coil CHPTA3026C3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA3026C3 - Configuration:

Horizontal

Evaporator Coil CHPTA3026C3 - Cabinet Width:

26 in

Evaporator Coil CHPTA3026C3 - Metering Device:

TXV

Evaporator Coil CHPTA3026C3 - Refrigerant:

R-32

Evaporator Coil CHPTA3026C3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA3026C3 - Suction Line Size:

3/4 in

System Type:

Gas Electric Split System

Cooling Capacity:

2 Ton / 24,000 BTU

Evaporator Coil Capacity:

2.5 Ton / 30,000 BTU nominal

Heating Output:

Approximately 64,000 BTU

Furnace Efficiency:

80% AFUE

Blower Motor:

Multi-Speed ECM

Nominal Furnace Airflow:

1,600 CFM

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
