Goodman 3.5 Ton 15 SEER2 80% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA4210 GR9T801205DN CAPTA4230D3

Goodman

5 Star RatingLeave a review

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
GLXS4BA4210-GR9T801205DN-CAPTA4230D3
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

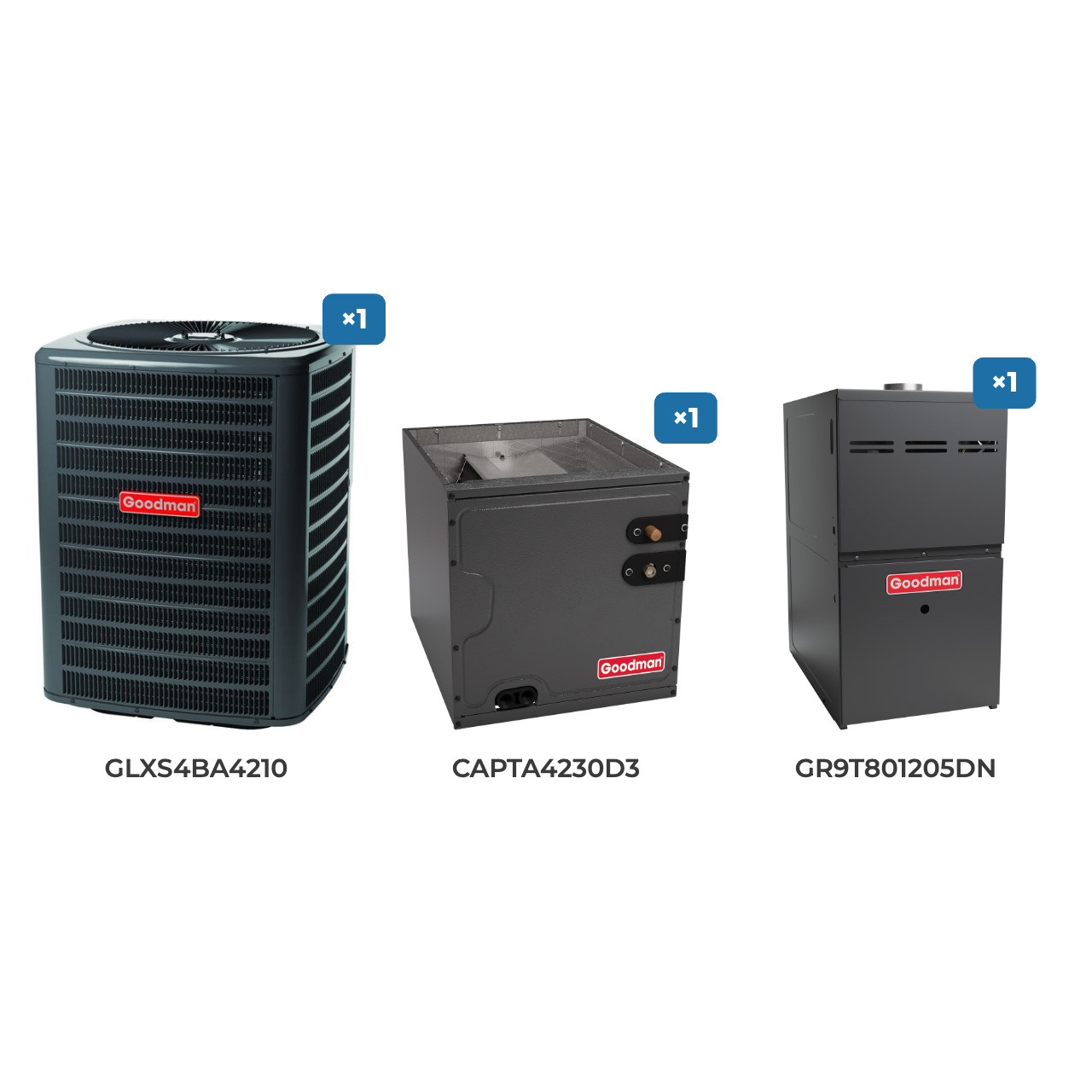

Goodman 3.5 Ton Air Conditioner & Gas Furnace System: GLXS4BA4210 air conditioner, CAPTA4230D3 evaporator coil, GR9T801205DN gas furnace
Condition:
New
Width:
35.50 (in)
Height:
39.50 (in)
Depth:
35.50 (in)

Questions about Goodman 3.5 Ton 15 SEER2 80% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA4210 GR9T801205DN CAPTA4230D3?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$5,634.00
45 in stock • Ships in 2-3 Business Days
Overview

Goodman 3.5 Ton 15 SEER2 80% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA4210 GR9T801205DN CAPTA4230D3

Goodman 3.5 Ton Air Conditioner & Gas Furnace System: GLXS4BA4210 air conditioner, CAPTA4230D3 evaporator coil, GR9T801205DN gas furnace
Product details

Description

The Goodman GLXS4BA4210 system provides 3.5 tons of cooling capacity with a 15 SEER2 efficiency rating for dependable indoor comfort. Its R-32 refrigerant supports efficient cooling, while the 120,000 BTU gas furnace delivers powerful heating with an 80% AFUE rating.

Designed for upflow installation, this matched system combines a single-stage air conditioner, a two-stage gas furnace, and a cased evaporator coil with an internal TXV. The furnace features a nine-speed ECM blower motor that helps maintain consistent airflow and balanced comfort throughout the home.

Key Features

  • 3.5-ton cooling capacity
  • 15 SEER2 cooling efficiency
  • 120,000 BTU two-stage gas furnace
  • Nine-speed ECM blower motor
  • Upflow configuration with R-32 refrigerant

System Specifications

  • Cooling Capacity: 42,000 BTU
  • Heating Input Capacity: 120,000 BTU
  • Cooling Efficiency: 15 SEER2
  • Furnace Efficiency: 80% AFUE
  • Refrigerant Type: R-32
  • Installation Orientation: Upflow

Compatibility & Installation Notes

This system is designed for upflow applications and requires compatible ductwork, electrical service, gas connections, refrigerant lines, drainage, and proper furnace venting. Professional installation and an HVAC load calculation are recommended to confirm correct sizing and compatibility.

Frequently Asked Questions

Does this system provide heating and cooling?
Yes. It includes an air conditioner for cooling and a gas furnace for heating.

Is the furnace single-stage or two-stage?
The GR9T801205DN is a two-stage gas furnace that adjusts its heating output according to comfort needs.

Can this system be installed in an upflow configuration?
Yes. Return air enters from the bottom, while conditioned air is discharged from the top.

Does the evaporator coil include a TXV?
Yes. The CAPTA4230D3 evaporator coil includes an internal thermal expansion valve.

Does this system use R-32 refrigerant?
Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Goodman
Width:
35.50 (in)
Height:
39.50 (in)
Depth:
35.50 (in)
Weight:
442.00 LBS
AHRI Certified:
Yes
Configuration:
Upflow
Capacity (Tons):
3.5
EER:
12
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Category:
Gas Heating & Air Conditioner Bundle
AFUE:
80%
Airflow (CFM):
2,000
AHRI Reference Number:
214859940
Shipping Weight:
419 lb
Vent Type:
Chimney / Category I
Cabinet Width (in):
24.5
EER2:
12 EER2
Electrical Phase:
1-Phase
Electrical Frequency:
60 Hz
Blower Motor Type:
ECM Constant Torque
Color:
Gray
Liquid Line Size:
3/8 in
Unit Weight:
389 lb
Refrigerant Type:
R-32
Prop 65 Warning:
Yes
Heating Stages:
Two Stage
Heating Input (BTU):
100,000 - 149,000 BTU
Line Set Connection Type:
Braze
Cooling Capacity (BTU):
42,000
SEER2:
15 SEER2
DOE Regional Compliance:
Nationwide
Compressor Stages:
Single Stage
Voltage / Phase:
208/230V 1-Phase
Condenser GLXS4BA4210 - Nominal Capacity (Tons):
3.5
Condenser GLXS4BA4210 - Cooling Capacity (BTU/h):
42,000
Condenser GLXS4BA4210 - Refrigerant:
R-32
Condenser GLXS4BA4210 - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Condenser GLXS4BA4210 - Minimum Circuit Ampacity (MCA):
19.0 A
Condenser GLXS4BA4210 - Maximum Overcurrent Protection (MOP):
30 A
Condenser GLXS4BA4210 - Compressor Type:
Scroll
Condenser GLXS4BA4210 - Compressor Stages:
Single Stage
Condenser GLXS4BA4210 - Liquid Line Size:
3/8 in
Condenser GLXS4BA4210 - Suction Line Size:
1-1/8 in
Condenser GLXS4BA4210 - Sound Level (dB):
72
Condenser GLXS4BA4210 - Shipping Weight:
225 lb
Furnace GR9T801205DN - Input (BTU/h):
120,000
Furnace GR9T801205DN - Output (BTU/h):
96,000
Furnace GR9T801205DN - AFUE:
80%
Furnace GR9T801205DN - Heating Stages:
Two Stage
Furnace GR9T801205DN - Blower Motor Type:
ECM Constant Torque
Furnace GR9T801205DN - Maximum Cooling Capacity (Tons):
5
Furnace GR9T801205DN - Configuration:
Upflow/Horizontal
Furnace GR9T801205DN - Cabinet Width:
24.5 in
Furnace GR9T801205DN - Vent Type:
Chimney / Category I
Furnace GR9T801205DN - Gas Type:
Propane Convertible
Furnace GR9T801205DN - Voltage/Phase/Hz:
115 V / 1 Ph / 60 Hz
Furnace GR9T801205DN - Unit Dimensions (W x D x H):
24.5 in x 28 in x 33.375 in
Furnace GR9T801205DN - Shipping Weight:
124 lb
Evaporator Coil CAPTA4230D3 - Nominal Capacity (Tons):
3.5
Evaporator Coil CAPTA4230D3 - Cased/Uncased:
Cased
Evaporator Coil CAPTA4230D3 - Configuration:
Upflow/Downflow
Evaporator Coil CAPTA4230D3 - Cabinet Width:
24.5 in
Evaporator Coil CAPTA4230D3 - Metering Device:
TXV
Evaporator Coil CAPTA4230D3 - Refrigerant:
R-32
Evaporator Coil CAPTA4230D3 - Liquid Line Size:
3/8 in
Evaporator Coil CAPTA4230D3 - Suction Line Size:
7/8 in
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Heat Exchanger & 10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos5 videos
Goodman Air Conditioning and Heating - Built In America | HVAC365
Frequently asked questions
What size is the ?
The is a 3.5 ton unit.
What is the AFUE of the ?
The is rated at 80% AFUE.
Is the AHRI certified?
Yes. The AHRI reference number is 214859940.
What refrigerant does the use?
It uses R-32 refrigerant.
What is the heating input of the ?
The heating input is 100,000 - 149,000 BTU BTU.
How much cooling does the provide?
It is rated for 42,000 BTU of cooling.
What is the SEER2 rating of the ?
The is rated at 15 SEER2 SEER2.
What power supply does the need?
It requires 208/230V 1-Phase power.
What warranty comes with the GLXS4BA4210-GR9T801205DN-CAPTA4230D3?
10 Years Heat Exchanger & 10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the GLXS4BA4210-GR9T801205DN-CAPTA4230D3?
The GLXS4BA4210-GR9T801205DN-CAPTA4230D3 is made by Goodman.
