Description
The Goodman 3 Ton 15.2 SEER2 80% AFUE 60,000 BTU Ultra Low NOx Gas Electric Air Conditioner Split System Upflow R-32 (GLXS4MA3610 / GR9S800604BU / CAPTA3626B3) is a complete residential heating and cooling solution built for areas with strict NOx emission rules. This AHRI-matched system combines a 3-ton R-32 air conditioner, 80% AFUE ultra low NOx single-stage gas furnace, and cased evaporator coil for efficient cooling and dependable, cleaner-burning heat.
The GR9S800604BU furnace is an ultra low NOx model rated at 14 ng/J, the level required in California air districts such as the South Coast AQMD and San Joaquin Valley APCD. Designed for upflow installation, it uses a multi-speed ECM blower motor for steady airflow through your ductwork.
Key Features
-
3 Ton Cooling Capacity – AHRI-rated 34,200 BTU/h of cooling
-
15.2 SEER2 / 12 EER2 – Certified matched-system cooling efficiency
-
60,000 BTU Gas Furnace – Single-stage heating with 80% AFUE efficiency
-
Ultra Low NOx Furnace – 14 ng/J NOx emissions for strict air-quality districts
-
Upflow R-32 System – Uses lower-GWP R-32 refrigerant

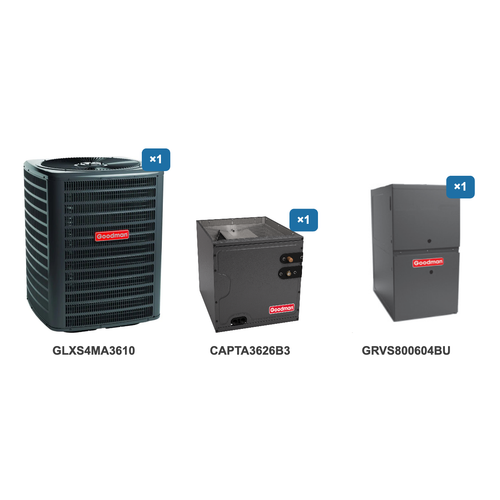

System Components Included
-
Goodman GLXS4MA3610 3 Ton R-32 Air Conditioner
-
Goodman GR9S800604BU 60,000 BTU 80% AFUE Single-Stage Gas Furnace (Ultra Low NOx)
-
Goodman CAPTA3626B3 Cased Upflow/Downflow R-32 Evaporator Coil
Compatibility & Installation Notes
The GLXS4MA3610 / GR9S800604BU / CAPTA3626B3 system is AHRI certified under reference number 214860397 and is designed for residential upflow applications. Compatibility with the property's ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, and furnace venting must be confirmed before installation.
Specifications
-
System Type: Ultra Low NOx Gas Electric Air Conditioner Split System
-
AHRI Reference Number: 214860397
-
Cooling Capacity: 34,200 BTU/h
-
Cooling Efficiency: 15.2 SEER2 / 12 EER2
-
Furnace Input / Output: 60,000 / 48,000 BTU/h
-
Furnace Efficiency: 80% AFUE
-
Refrigerant / Orientation: R-32 / Upflow
Installation Notes
-
Verify compatibility with the existing upflow ductwork
-
Confirm electrical service and natural gas connection requirements
-
Check the required refrigerant line sizes before installation
-
Ensure proper metal flue venting (Category I) for the 80% AFUE furnace
-
Confirm local air district NOx requirements before installation
-
Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What is included in this Goodman HVAC system?
The package includes the GLXS4MA3610 air conditioner, GR9S800604BU gas furnace, and CAPTA3626B3 cased evaporator coil.
What does ultra low NOx mean?
The furnace limits nitrogen oxide emissions to 14 ng/J, which meets the requirements of California air districts that restrict standard low NOx furnaces.
What is the cooling capacity of this system?
The system provides 3 tons with an AHRI-rated 34,200 BTU/h of cooling.
Is the furnace single-stage or two-stage?
The Goodman GR9S800604BU is a single-stage gas furnace.
What does 80% AFUE mean?
It means approximately 80% of the furnace's fuel is converted into usable heating energy.
Does this system use R-32 refrigerant?
Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
