Goodman 3 Ton 16 SEER2 92% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3610 GR9S920805CN CHPTA4830C3

Designed for horizontal installation, the system features a single-stage gas furnace and a multi-speed ECM blower motor for consistent airflow and efficient operation. Its horizontal configuration makes it suitable for attics, crawl spaces, and other limited-height areas where approved high-efficiency venting and condensate drainage can be provided.

Key Features

• 3 Ton Cooling Capacity – Delivers 36,000 BTU of residential cooling
• 16 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable single-stage heating
• 92% AFUE Efficiency – Converts approximately 92% of fuel into usable heat
• Multi-Speed ECM Blower – Promotes consistent airflow and efficient operation
• Horizontal Configuration – Suitable for attics, crawl spaces, and limited-height areas
• 4 Ton Evaporator Coil – Paired with the 3-ton condenser to support the matched-system efficiency
• R-32 Refrigerant System – Uses next-generation refrigerant technology

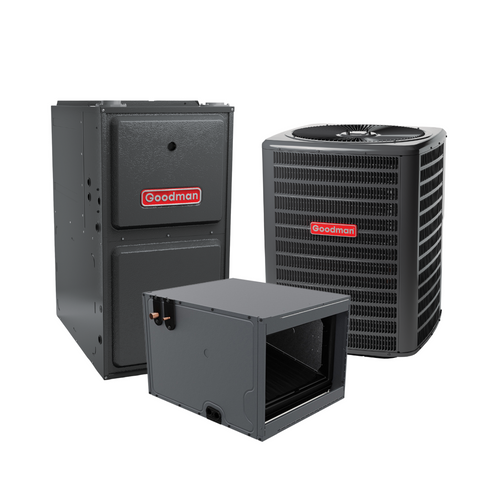

System Components Included

• Goodman GLXS5BA3610 3 Ton 16 SEER2 R-32 Air Conditioner
• Goodman GR9S920805CN 80,000 BTU 92% AFUE Single-Stage Gas Furnace
• Goodman CHPTA4830C3 4 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3610 / GR9S920805CN / CHPTA4830C3 system is configured for residential horizontal applications. The 4-ton evaporator coil is paired with the 3-ton air conditioner as part of the complete system configuration. The equipment combination and claimed efficiency should be verified using the applicable AHRI certification.

Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, approved high-efficiency furnace venting, and condensate drainage must be confirmed before installation.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 3 Ton / 36,000 BTU
• Evaporator Coil Capacity: 4 Ton
• Heating Input: 80,000 BTU
• Heating Output: Approximately 73,600 BTU
• Cooling Efficiency: 16 SEER2
• Furnace Efficiency: 92% AFUE
• Furnace Stages: Single Stage
• Blower Motor: Multi-Speed ECM
• Refrigerant: R-32
• Installation Orientation: Horizontal

Installation Notes

• Verify compatibility with the existing horizontal ductwork
• Confirm the complete equipment combination and AHRI-rated efficiency
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved high-efficiency furnace venting
• Provide proper furnace and evaporator-coil condensate drainage
• Maintain the required equipment clearances and service access
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3610 air conditioner, GR9S920805CN gas furnace, and CHPTA4830C3 horizontal evaporator coil.

What is the cooling capacity of this system?

The air conditioner provides 3 tons or 36,000 BTU of cooling capacity.

Why is a 4-ton evaporator coil paired with a 3-ton air conditioner?

A larger evaporator coil may be used in an approved equipment combination to help achieve the specified 16 SEER2 efficiency. The complete system match should be confirmed through its applicable AHRI certification.

Is the furnace single-stage or two-stage?

The Goodman GR9S920805CN is a single-stage gas furnace that provides consistent heating output.

What does 92% AFUE mean?

It means approximately 92% of the furnace’s fuel is converted into usable heating energy, providing an estimated heating output of 73,600 BTU.

Does this furnace require condensate drainage?

Yes. As a high-efficiency condensing furnace, it requires approved furnace condensate drainage in addition to drainage for the evaporator coil.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
