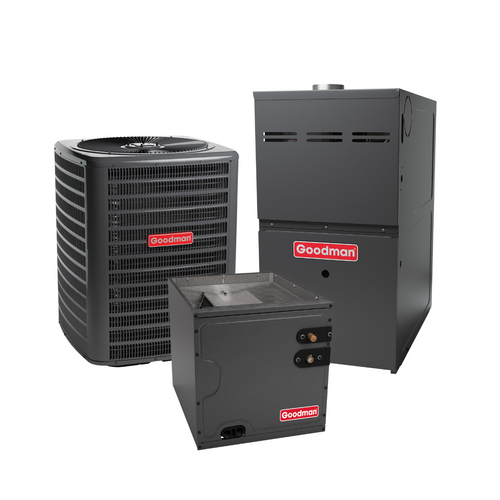

Goodman 4 Ton 14.5 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA4810 GR9T800804CX CAPTA6030C3

The Goodman GLXS4BA4810 split system delivers 4 tons of cooling capacity with a 14.5 SEER2 efficiency rating for dependable residential comfort. Its 80,000 BTU gas furnace provides reliable heating with an 80% AFUE rating.

Designed for upflow installation, this matched system includes an R-32 air conditioner, a two-stage gas furnace, and a cased evaporator coil. The furnace features a nine-speed ECM blower motor for consistent airflow and improved temperature control.

Key Features

• 4-ton cooling capacity
• 14.5 SEER2 cooling efficiency
• 80,000 BTU two-stage gas furnace
• Nine-speed ECM blower motor
• Upflow design with R-32 refrigerant

System Specifications

• Cooling Capacity: 48,000 BTU
• Heating Input Capacity: 80,000 BTU
• Cooling Efficiency: 14.5 SEER2
• Furnace Efficiency: 80% AFUE
• Refrigerant Type: R-32
• Installation Orientation: Upflow

Compatibility & Installation Notes

This system requires compatible upflow ductwork, gas and electrical connections, refrigerant lines, drainage, and approved furnace venting. Professional installation and a proper HVAC load calculation are recommended.

Frequently Asked Questions

Does this system provide heating and cooling?

Yes. It includes an air conditioner for cooling and a gas furnace for heating.

Is the furnace single-stage or two-stage?

The GR9T800804CX is a two-stage gas furnace that adjusts its heating output according to comfort needs.

What does upflow installation mean?

Return air enters through the bottom of the furnace, while conditioned air is discharged from the top.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

Is the evaporator coil included?

Yes. The Goodman CAPTA6030C3 cased evaporator coil is included.
