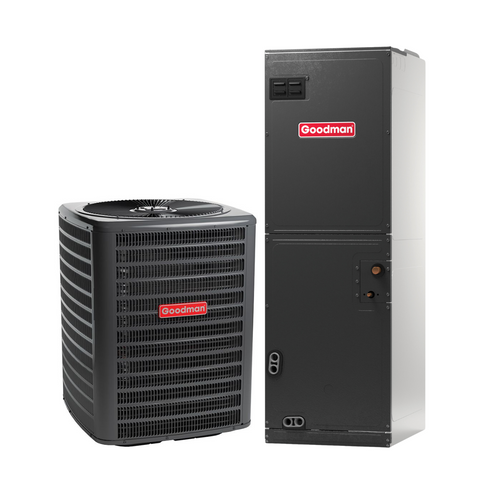

Goodman 4 Ton 15.2 SEER2 Heat Pump Air Conditioner Split System with R32 Refrigerant | GLZS4BA4810-AMST48CU1300

Goodman

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
GLZS4BA4810-AMST48CU1300
Your Price $0.00

Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Condition:
New
Width:
48.00 (in)
Height:
64.00 (in)
Depth:
40.00 (in)

Questions about Goodman 4 Ton 15.2 SEER2 Heat Pump Air Conditioner Split System with R32 Refrigerant | GLZS4BA4810-AMST48CU1300?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$5,673.00

20 in stock • Ships in 2-3 Business Days
Overview

Goodman 4 Ton 15.2 SEER2 Heat Pump Air Conditioner Split System with R32 Refrigerant | GLZS4BA4810-AMST48CU1300

Goodman 4 Ton 15.2 SEER2 Heat Pump Air Conditioner Split System with R32 Refrigerant | GLZS4BA4810-AMST48CU1300
Product details

Description

The Goodman GLZS4BA4810-AMST48CU1300 is a 4-ton (48,000 BTU) split system heat pump designed to deliver efficient and reliable comfort for larger homes and commercial spaces. Featuring up to 15.2 SEER2 cooling efficiency and 7.8 HSPF2 heating performance, this system pairs the GLZS4B outdoor unit with the AMST48 multi-speed air handler, providing strong airflow capacity. It utilizes R-32 refrigerant for environmentally responsible operation.

Performance
Powered by a durable scroll compressor and an all-aluminum coil, the GLZS4BA4810-AMST48CU1300 offers efficient heat transfer and long-lasting performance. The AMST48 air handler provides robust multi-speed airflow suited for larger duct systems, ensuring even temperature distribution and improved humidity control.

Smart Features
Compatible with a wide range of programmable and smart thermostats, this system supports energy-efficient comfort management. Its zoning compatibility allows for flexible temperature control across multiple rooms or zones, ideal for multi-family or commercial applications.

Comfort & Noise
Designed for quiet operation, this model incorporates noise-reduction features in the compressor and cabinet. The AMST48 blower delivers smooth, consistent airflow, reducing hot and cold spots and improving overall comfort.

Use Case Fit
This 4-ton system is ideal for large residential homes, multi-family units, and light commercial buildings, particularly in regions with high cooling loads. Its increased airflow capacity supports properties with extensive ductwork and complex zoning needs.

Value & Reliability
Constructed with heavy-gauge steel and proven scroll compressor technology, the GLZS4BA4810-AMST48CU1300 offers durability and long-term reliability. It balances high capacity with energy-efficient operation to provide excellent value for contractors and property managers.

Summary Wrap-Up
The Goodman GLZS4BA4810-AMST48CU1300 delivers powerful, efficient 4-ton performance with flexible airflow control and smart thermostat compatibility, making it a dependable choice for larger residential and commercial applications.

Key Features

  • 15.2 SEER2 Cooling Efficiency: Efficient operation to reduce energy consumption.

  • 7.8 HSPF2 Heating: Consistent heating performance for cooler months.

  • AMST48 Multi-Speed Air Handler: Provides high airflow for larger spaces.

  • Scroll Compressor Reliability: Ensures smooth and long-lasting operation.

  • Quiet System Design: Minimizes noise for indoor and outdoor environments.

  • R-32 Refrigerant: Environmentally friendly refrigerant.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Goodman
Width:
48.00 (in)
Height:
64.00 (in)
Depth:
40.00 (in)
Weight:
487.00 LBS
Airflow (CFM):
1,600
Capacity (Tons):
4
Electrical Frequency:
60 Hz
Cooling Capacity (BTU):
48,000
Color:
Gray
Configuration:
Multi-Position
Electrical Phase:
1-Phase
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Heating Output (BTU):
40,000 - 69,000 BTU
Product Category:
Heat Pump Split System
AHRI Certified:
Yes
AHRI Reference Number:
215213861
Energy Star Listed:
Yes
EER2:
13+ EER2
ETL Listed:
Yes
Max Sound (dB):
74
Liquid Line Size:
3/8 in
HSPF2:
7 HSPF2
ISO Certified:
Yes
Unit Weight:
407 lb
Minimum Circuit Ampacity (MCA):
25.5
Maximum Overcurrent Protection (MOP):
40
Refrigerant Type:
R-32
Suction Line Size:
7/8 in
Shipping Weight:
437 lb
SEER2:
15 SEER2
Prop 65 Warning:
Yes
DOE Regional Compliance:
Nationwide
Compressor Stages:
Single Stage
Discharge:
Top
Matched Indoor Type:
Air Handler
Voltage / Phase:
208/230V 1-Phase
Heat Pump GLZS4BA4810 - Nominal Capacity (Tons):
4
Heat Pump GLZS4BA4810 - Cooling Capacity (BTU/h):
48,000
Heat Pump GLZS4BA4810 - Heating Capacity (BTU/h):
48,000
Heat Pump GLZS4BA4810 - Refrigerant:
R-32
Heat Pump GLZS4BA4810 - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Heat Pump GLZS4BA4810 - Minimum Circuit Ampacity (MCA):
25.5 A
Heat Pump GLZS4BA4810 - Maximum Overcurrent Protection (MOP):
40 A
Heat Pump GLZS4BA4810 - Compressor Type:
Scroll
Heat Pump GLZS4BA4810 - Compressor Stages:
Single Stage
Heat Pump GLZS4BA4810 - Liquid Line Size:
3/8 in
Heat Pump GLZS4BA4810 - Suction Line Size:
1-1/8 in
Heat Pump GLZS4BA4810 - Sound Level (dB):
74
Heat Pump GLZS4BA4810 - Unit Dimensions (W x D x H):
35.5 in x 35.5 in x 36.5 in
Heat Pump GLZS4BA4810 - Unit Weight:
269 lb
Heat Pump GLZS4BA4810 - Shipping Weight:
284 lb
Air Handler AMST48CU1300 - Nominal Capacity (Tons):
4
Air Handler AMST48CU1300 - Blower Motor Type:
ECM Constant Torque
Air Handler AMST48CU1300 - Configuration:
Multi-Position
Air Handler AMST48CU1300 - Metering Device:
TXV
Air Handler AMST48CU1300 - Refrigerant:
R-32
Air Handler AMST48CU1300 - Voltage/Phase/Hz:
208-230 V / 1 Ph
Air Handler AMST48CU1300 - Minimum Circuit Ampacity (MCA):
7.1 A
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos5 videos
Goodman Air Conditioning & Heating: Built in America
Frequently asked questions
What size is the ?
The is a 4 ton unit.
How much cooling does the provide?
It is rated for 48,000 BTU of cooling.
Is the AHRI certified?
Yes. The AHRI reference number is 215213861.
What is the HSPF2 heating efficiency of the ?
It is rated at 7 HSPF2 HSPF2.
What refrigerant does the use?
It uses R-32 refrigerant.
What is the SEER2 rating of the ?
The is rated at 15 SEER2 SEER2.
What power supply does the need?
It requires 208/230V 1-Phase power.
What warranty comes with the GLZS4BA4810-AMST48CU1300?
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the GLZS4BA4810-AMST48CU1300?
The GLZS4BA4810-AMST48CU1300 is made by Goodman.
