Description

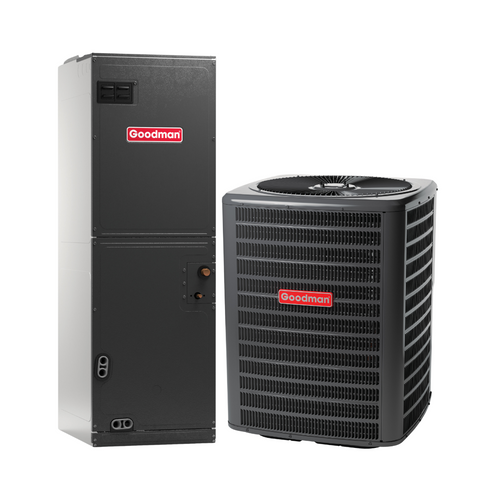

The Goodman GLXS5BA4810-AMST48CU1300 split system is a 4-ton cooling solution designed for large residential and light commercial environments. Combining the GLXS5BA4810 condenser and the AMST48CU1300 air handler, this system delivers 48,000 BTU of cooling power with a 15.2 SEER2 efficiency rating. The R-32 refrigerant enhances sustainability and performance, while the air handler offers flexible, multi-positional installation.
Performance
This system’s single-stage scroll compressor delivers powerful, steady cooling performance. The outdoor coil is constructed with copper tubes and enhanced aluminum fins for efficient heat transfer. The AMST48CU1300 features a direct-drive ECM blower motor, and a factory-installed TXV ensures optimized refrigerant flow for precise, energy-efficient operation.
Smart Features
Compatible with most programmable thermostats and smart control systems, this setup supports zoning applications and remote comfort management. The variable-speed ECM blower allows adaptive airflow control, which balances comfort and efficiency across changing load conditions.
Comfort & Noise
Engineered for quiet performance, the condenser operates near 68 dBA, while the air handler is insulated with foil-faced fiberglass and features a thermoplastic drain pan to dampen operational noise. High airflow capacity and tight air control ensure year-round comfort.
Use Case Fit
The 4-ton capacity makes this system an excellent choice for large homes, multi-family buildings, or light commercial facilities. The AMST48CU1300’s multi-position cabinet supports installation in upflow, downflow, horizontal left, or horizontal right configurations, making it a flexible solution for varying building designs and regional climate demands.
Value & Reliability
With a powder-coated galvanized steel condenser cabinet and factory-installed safety features, this system is built to withstand harsh conditions. The filter drier, TXV, and high-pressure switch all contribute to long-lasting, low-maintenance operation trusted by contractors and property managers alike.
Summary Wrap-Up
With 15.2 SEER2 performance, R-32 refrigerant, and robust build quality, the Goodman GLXS5BA4810-AMST48CU1300 delivers a high-efficiency, quiet, and adaptable cooling solution. It’s ideal for buyers seeking long-term value, energy savings, and versatile indoor comfort.
- 15.2 SEER2 Efficiency: Provides high-performance cooling with long-term energy savings.
- R-32 Refrigerant: Low-GWP refrigerant delivers efficient heat transfer with reduced environmental impact.
- Multi-Positional Design: Flexible indoor installation for upflow, downflow, or horizontal configurations.
- ECM Blower Motor: Enables quiet, variable-speed airflow for optimal indoor comfort.
- Scroll Compressor: Delivers consistent, reliable single-stage cooling across seasons.
- Galvanized Steel Cabinet: Powder-coated for long-lasting outdoor durability.
- Factory-Installed TXV & Filter Drier: Increases system protection, efficiency, and refrigerant control.
About the Condenser (GLXS5BA4810)
The GLXS5BA4810 is a 4-ton condenser using eco-friendly R-32 refrigerant to achieve 15.2 SEER2 efficiency. It features a single-stage scroll compressor and a coil assembly built from copper tubing with aluminum fins for superior heat transfer. The cabinet is made of galvanized steel with a baked-on powder coat finish for rust resistance, and includes a factory-installed filter drier and pressure safety switch.
About the Air Handler (AMST48CU1300)
The AMST48CU1300 air handler supports 48,000 BTU cooling capacity and is engineered with a direct-drive ECM blower motor for efficient airflow and quiet performance. It features a factory-installed TXV for precise refrigerant control and an all-aluminum coil compatible with R-32 refrigerant. The cabinet supports multi-positional configurations, allowing flexible indoor installation in a wide range of residential and light commercial applications.
