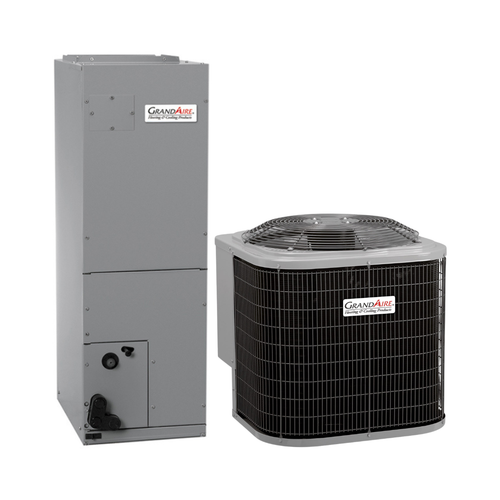

Grandaire 1.5 Ton Air Conditioner Split System: W5A5S18AKAWA + WCHL185AA
This system pairs the Grandaire W5A5S18AKAWA air conditioner with the WCHL185AA multi-position air handler. It is an AHRI-matched combination (AHRI reference 214877377), so the efficiency numbers below were certified for these two exact models working together. Both units are built for R-454B refrigerant and ship with factory TXV metering at the indoor coil.
Certified system performance
- AHRI reference number: 214877377
- Nominal capacity: 1.5 ton (18,000 BTU/h); 17,700 BTU/h certified cooling
- Cooling efficiency: 15.5 SEER2 / 13.5 EER2
- Refrigerant: R-454B
- Power supply: 208/230V 1-phase, 60 Hz
Outdoor unit: Grandaire W5A5S18AKAWA
The W5A5S18AKAWA is a single-stage, 1.5-ton air conditioner with a scroll compressor, internal pressure relief valve, internal thermal overload and front-seating service valves. It is long-line capable to 250 ft total equivalent length and can cool down to 0°F with the low-ambient kit.
- Minimum circuit ampacity: 10.9 A | Max breaker: 15 A
- Line connections: 3/8 in. liquid, 5/8 in. rated vapor
- Factory charge: 4.2 lb R-454B | Sound power: 72 dBA

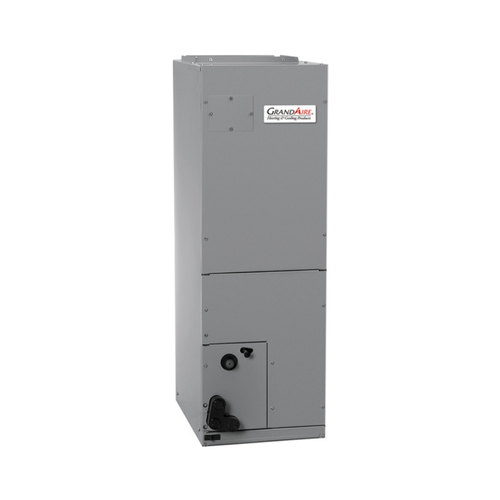

Air handler: Grandaire WCHL185AA
The WCHL185AA is a multi-position fan coil that installs upflow, downflow or horizontal, so it works in a closet, attic, crawlspace or garage. Its multi-tap ECM blower (1/3 HP, about 525 CFM nominal) holds airflow better than a PSC motor as duct static rises, and a 90-second blower off-delay pulls extra cooling from the coil after each cycle. The cabinet is insulated to R-4.2 with a vapor barrier, leaks less than 2% at 1.0 in. W.C., and includes the refrigerant leak detection and dissipation system required for R-454B. Cabinet size: 42-11/16 x 14-5/16 x 22-1/16 in. (H x W x D), 120 lb.
Electric heat
Heat strips are not included. If you want electric heat with this cooling system, choose a heater kit from the "Add an Electric Heat Strip" option above. Approved kits for this air handler: 5 kW (EHC05CKB), 8 kW (EHC07CKB), 10 kW (EHC10CKB). Ratings are at 240V; output is about 75% of that on a 208V supply.
Sizing and installation
Size the system from a Manual J load calculation rather than the size of the old unit. Line sets over 15 ft need a charge adjustment (0.60 oz per foot on 3/8 in. liquid line), and the installer should evacuate, leak test and commission the system to the manufacturer's procedures, which also keeps the warranty in force.
Common questions
Is this a matched system?
Yes. AHRI certificate 214877377 covers the W5A5S18AKAWA with the WCHL185AA.
Does it come with a heat strip?
No. Heat strips are sold separately and can be added from the option above.
What is the warranty?
Both units carry a 5-year parts limited warranty, extended to 10 years with registration within 90 days of installation, and the outdoor unit adds a 1-year unit replacement limited warranty.
