Description
Product Summary

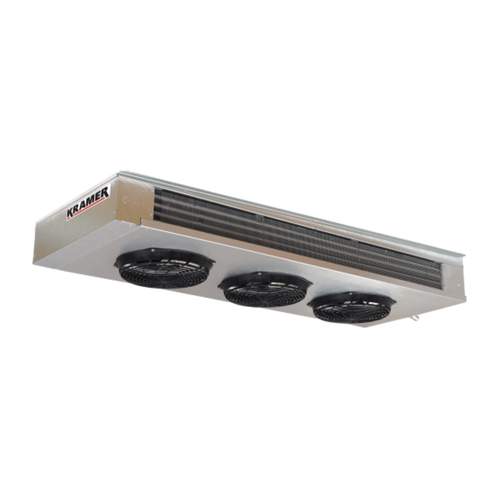

The Kramer KE6E108DDA is a Center Mount (Low Height) unit cooler with 10,800 BTU/h of capacity at 10°F TD, R-404A. It uses electric defrost and runs on 208/230V 1-phase power.
The unit has 3 fans, 1,806 CFM of airflow, EC 2-Speed fan motors, and is approved for R-404A, R-448A and R-449A.
It is intended for walk-in coolers and medium-temperature boxes, and is a good fit for contractors replacing or specifying matched walk-in systems.
Key Features
- Center Mount Design: ceiling center-mount design with dual-direction air throw
- Rated Capacity: 10,800 BTU/h at 10°F TD, R-404A
- Dual-Speed EC Fan Motors: lower energy use and reduced fan speed during off-cycle
- Electric Defrost: factory electric heaters for reliable defrost in low-temperature boxes
- Multiple Refrigerants: approved for R-404A, R-448A and R-449A
Specifications
| Brand | Kramer |
|---|---|
| Model | KE6E108DDA |
| Series | Center Mount (Low Height) |
| Product Type | Center Mount Unit Cooler |
| Profile | Center Mount |
| Refrigeration Capacity | 10,800 BTU/h (10°F TD, R-404A) |
| Defrost Type | Electric Defrost |
| Number of Fans | 3 |
| Airflow | 1,806 CFM |
| Fins Per Inch | 6 |
| Fan Motor | EC 2-Speed |
| Fan Motor Amps | 1.5 A (208/230V) |
| Defrost Heater | 2,250 W (9.8 A at 208/230V) |
| Liquid / Suction Connection | 3/8 in / 7/8 in |
| Refrigerants | R-404A, R-448A, R-449A |
| Voltage / Phase | 208/230V / 1-Phase / 60 Hz |
| Warranty | 1 Year Parts from Installation or 18 Months from Shipment, Whichever Comes First (Manufacturer Warranty) |
Ideal Applications
- Walk-in coolers
- Restaurants and commercial kitchens
- Convenience stores and grocery coolers
- Floral, beverage and produce storage
- Schools, hospitals and institutional foodservice
Frequently Asked Questions
What is the capacity of the KE6E108DDA?
It is rated at 10,800 BTU/h at 10°F TD, R-404A.
What voltage does the KE6E108DDA use?
It runs on 208/230V 1-phase 60 Hz power. Electric defrost heaters are powered from the same supply.
Which refrigerants is it approved for?
It is approved for R-404A, R-448A and R-449A.
Is it for a cooler or a freezer?
This electric-defrost unit is designed for low-temperature applications such as walk-in freezers, and can also be used in coolers.
What condensing unit matches this evaporator?
Pick a condensing unit rated for the same refrigerant and temperature, with capacity matched at your design suction temperature. HVAC365 can recommend a matching Kramer condensing unit.
