Description
Product Summary

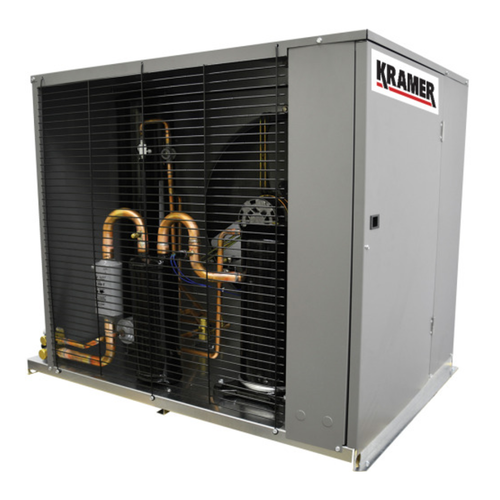

The Kramer KFON450E4AEA is a 4-1/2 HP extended medium temp scroll air-cooled condensing unit from the Kramer Next-Gen MiniCon A2L line rated at 38,710 BTU/h (+25°F SST, 90°F ambient, R-454A). It is wired for 208/230V 3-phase 60 Hz power.
It is built for refrigeration contractors, walk-in manufacturers and facility owners who need a compact, weather-resistant air-cooled unit for indoor or outdoor installation.
Approved refrigerants: R-454A, R-454C and R-455A. Pair it with a matching evaporator sized to the box load; contact HVAC365 for a system match.
Key Features
- 4-1/2 HP Scroll Compressor: sized for extended medium temp walk-in duty
- Published Capacity: 38,710 BTU/h at +25°F SST, 90°F ambient, R-454A for accurate load matching
- Refrigerant Flexibility: approved for R-454A, R-454C and R-455A
- Low-GWP A2L Platform: built for lower-GWP A2L refrigerants R-454A, R-454C and R-455A
- Integral Liquid Subcooling: factory subcooling circuit improves capacity and expansion valve feed
- Service-Friendly Cabinet: galvanized painted housing, large hinged electrical panel and base-mounted shut-off valves
- Rated to 110°F Ambient: standard units are rated for operation up to 110°F outdoor air
Specifications
| Brand | Kramer |
|---|---|
| Model | KFON450E4AEA |
| Series | Next-Gen MiniCon (A2L) |
| Product Type | Condensing Unit |
| Horsepower | 4-1/2 HP |
| Temperature Application | Extended Medium Temp |
| Compressor Type | Scroll |
| Condenser Type | Air-Cooled |
| Installation | Indoor/Outdoor |
| Refrigeration Capacity | 38,710 BTU/h (+25°F SST, 90°F ambient, R-454A) |
| Unit Dimensions (D x W x H) | 33 x 43-7/8 x 35 in |
| Liquid / Suction Connection | 5/8 in / 1-1/8 in |
| Condenser Fans | 1 |
| DOE AWEF | 7.60 (medium temp) |
| Refrigerants | R-454A, R-454C, R-455A |
| Voltage / Phase | 208/230V / 3-Phase / 60 Hz |
| MCA / MOP | 31.2 A / 50 A |
| Shipping Weight | 375 lb |
| Warranty | 1 Year Parts from Installation or 18 Months from Shipment, Whichever Comes First (Manufacturer Warranty) |
Ideal Applications
- Walk-in coolers and medium-temperature boxes
- Restaurants, bars and commercial kitchens
- Convenience stores, grocery and beverage rooms
- Floral and produce storage
- Schools, hospitals and institutional foodservice
Frequently Asked Questions
What refrigerant does the KFON450E4AEA use?
The KFON450E4AEA is approved for R-454A, R-454C and R-455A.
What power supply does the KFON450E4AEA need?
It requires 208/230V 3-phase 60 Hz power, with a minimum circuit ampacity of 31.2 A and maximum overcurrent protection of 50 A.
How much refrigeration capacity does the KFON450E4AEA provide?
It is rated at 38,710 BTU/h at +25°F SST, 90°F ambient, R-454A. Actual capacity depends on box temperature, ambient temperature and line length, so size the system to the calculated box load.
Is the KFON450E4AEA for a walk-in cooler or freezer?
It is an extended medium-temperature unit for walk-in coolers and medium-temperature boxes, with a wider suction temperature range than standard medium-temp units.
What evaporator should I pair with it?
Choose an evaporator rated for the same refrigerant and temperature application with capacity matched to the condensing unit at your design suction temperature. HVAC365 can help match the right evaporator to this unit.
