Product Summary

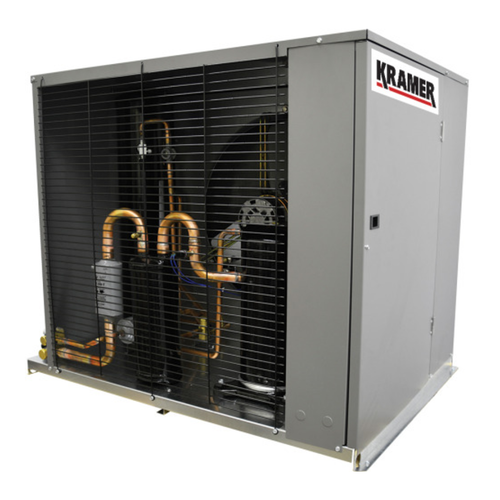

The Kramer KFON400E4ADA is a 4 HP extended medium temp scroll air-cooled condensing unit from the Kramer Next-Gen MiniCon A2L line rated at 34,940 BTU/h (+25°F SST, 90°F ambient, R-454A). It is wired for 208/230V 1-phase 60 Hz power.
It is built for refrigeration contractors, walk-in manufacturers and facility owners who need a compact, weather-resistant air-cooled unit for indoor or outdoor installation.
Approved refrigerants: R-454A, R-454C and R-455A. Pair it with a matching evaporator sized to the box load; contact HVAC365 for a system match.
Key Features
- 4 HP Scroll Compressor: sized for extended medium temp walk-in duty
- Published Capacity: 34,940 BTU/h at +25°F SST, 90°F ambient, R-454A for accurate load matching
- Refrigerant Flexibility: approved for R-454A, R-454C and R-455A
- Low-GWP A2L Platform: built for lower-GWP A2L refrigerants R-454A, R-454C and R-455A
- Integral Liquid Subcooling: factory subcooling circuit improves capacity and expansion valve feed
- Service-Friendly Cabinet: galvanized painted housing, large hinged electrical panel and base-mounted shut-off valves
- Rated to 110°F Ambient: standard units are rated for operation up to 110°F outdoor air
Ideal Applications
- Walk-in coolers and medium-temperature boxes
- Restaurants, bars and commercial kitchens
- Convenience stores, grocery and beverage rooms
- Floral and produce storage
- Schools, hospitals and institutional foodservice
Frequently Asked Questions
What refrigerant does the KFON400E4ADA use?
The KFON400E4ADA is approved for R-454A, R-454C and R-455A.
What power supply does the KFON400E4ADA need?
It requires 208/230V 1-phase 60 Hz power, with a minimum circuit ampacity of 35.5 A and maximum overcurrent protection of 50 A.
How much refrigeration capacity does the KFON400E4ADA provide?
It is rated at 34,940 BTU/h at +25°F SST, 90°F ambient, R-454A. Actual capacity depends on box temperature, ambient temperature and line length, so size the system to the calculated box load.
Is the KFON400E4ADA for a walk-in cooler or freezer?
It is an extended medium-temperature unit for walk-in coolers and medium-temperature boxes, with a wider suction temperature range than standard medium-temp units.
What evaporator should I pair with it?
Choose an evaporator rated for the same refrigerant and temperature application with capacity matched to the condensing unit at your design suction temperature. HVAC365 can help match the right evaporator to this unit.
