Description
Product Summary

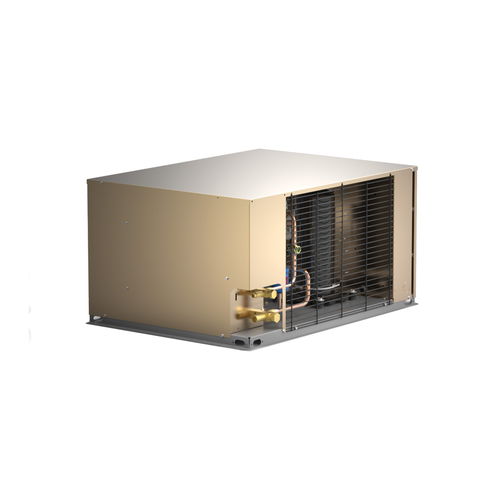

The Larkin LCH0015MCACHA0200 is a 1.5 HP medium temp outdoor air-cooled condensing unit from the Larkin LCH 1/2-6 HP horizontal air discharge line by Heatcraft Refrigeration Products. It uses a hermetic reciprocating compressor and a microchannel condenser coil, and it is wired for 208/230V 3-Phase.
This is a hermetic (H) compressor version with limited availability. It ships with the A0200 package: Timer-Elec preferred option package (factory defrost timer for electric defrost systems).
The LCH is sized for walk-in coolers in restaurants, convenience stores and institutional kitchens, and pairs with Larkin LEL low profile or LEC center mount unit coolers.
Key Features
- Microchannel Condenser Coil: compact, lower-charge air-cooled coil
- Hermetic Reciprocating Compressor: Copeland compressor
- Service-Friendly Cabinet: painted steel cabinet on a heavy-duty raised steel base with a hinged, removable electrical box door
- Factory Controls: fixed head pressure valve, adjustable low pressure and fixed high pressure controls (auto reset)
- Refrigeration Circuit: receiver with fusible plug, sealed liquid line drier and sight glass, liquid and suction base valves
- Factory Tested: helium leak test, bump test and cycling on pressure controls with run data shipped in the panel
- Electric Defrost Timer: Timer-Elec preferred option package (factory defrost timer for electric defrost systems)
Specifications
| Model | LCH0015MCACHA0200 |
|---|---|
| Brand / Series | Larkin LCH 1/2-6 HP Outdoor Air-Cooled Condensing Unit |
| Horsepower Class | 1.5 HP (model code 0015) |
| Temperature Application | Medium Temp |
| Electrical | 208/230V 3-Phase 60 Hz |
| Condenser Coil | Microchannel, air-cooled |
| Refrigerants | Not verified |
| Factory Option Package | A0200: Timer-Elec preferred option package (factory defrost timer for electric defrost systems) |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery coolers
- Beverage and floral coolers
- Schools and institutional food service
Frequently Asked Questions
What refrigerant does the Larkin LCH0015MCACHA0200 use?
Confirm the refrigerant with the unit nameplate; hermetic LCH data was not published online.
Is it for a cooler or a freezer?
It is a medium temp unit, intended for walk-in coolers.
What power supply is required?
208/230V 3-Phase 60 Hz. Size the circuit from the unit nameplate MCA and MOP.
What is included in the option package?
Package A0200: Timer-Elec preferred option package (factory defrost timer for electric defrost systems).
Which evaporator matches this condensing unit?
Choose a unit cooler whose capacity at your box temperature and design suction matches this unit, such as a Larkin LEL low profile model. HVAC365 can help size a matched system.
