Description
Product Summary

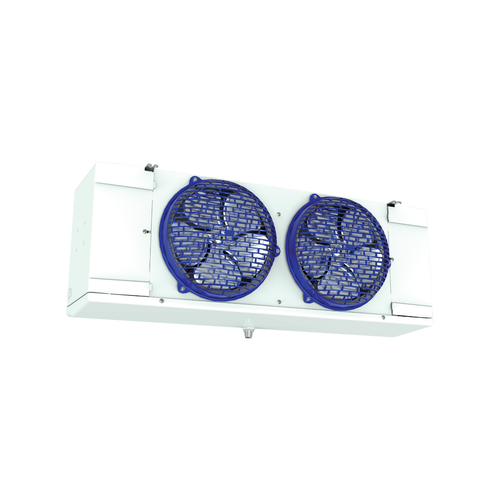

The Larkin LEL0100BS6EEAB0400 is a 10,000 BTU/h nominal low profile walk-in unit cooler from the Larkin LEL series by Heatcraft Refrigeration Products. It is a electric defrost model with 1-speed ec motors and a 6 FPI coil, built for walk-in freezers, with dual ratings that also allow cooler use.
Published ratings for this size include 9,900 BTU/h on R-448A at 10°F TD / -20°F SST. The unit runs on 208/230V 1-Phase power, moves 1,281 CFM through 2 fans.
This HFC (S) version is rated for R-404A, R-448A, R-449A and the R-407 series. It ships with the B0400 package: option package B0400.
Key Features
- Low Profile Cabinet: about 16-7/16 in. tall housing saves headroom in low-ceiling walk-in boxes
- 1-Speed EC Motor: electronically commutated fan motors cut fan energy versus PSC motors
- Electric Defrost: factory electric defrost heaters (2,100 W) for freezer duty
- Multi-Refrigerant Ratings: published capacities for R-404A, R-448A, R-449A
- 6 FPI Coil: fin spacing sized for frost-tolerant walk-in operation
- DOE AWEF Compliant Platform: part of the Larkin low profile line documented as meeting DOE minimum AWEF requirements
- Option Package B0400: option package B0400
Specifications
| Model | LEL0100BS6EEAB0400 |
|---|---|
| Brand / Series | Larkin LEL Low Profile Unit Cooler |
| Nominal Capacity | 10,000 BTU/h (model code) |
| Capacity R-404A (10°F TD / -20°F SST) | 9,000 BTU/h |
| Capacity R-448A/R-449A (10°F TD / -20°F SST) | 9,900 BTU/h |
| Defrost | Electric Defrost |
| Application | Freezer (low temperature), dual rated for cooler use |
| Fan Motors | EC 1-Speed |
| Number of Fans | 2 |
| Airflow | 1,281 CFM |
| Fins Per Inch | 6 |
| Fan Motor HP (each) | 1/20 |
| Defrost Heaters | 2,100 W (9.1 A at 208/230V 1-phase) |
| Electrical | 208/230V 1-Phase 60 Hz |
| Coil Inlet Connection | 1/2 in. OD |
| Suction Connection | 7/8 in. OD |
| Drain Connection | 3/4 MPT in. |
| Dimensions (L x D x H) | 45-1/2 x 13-1/4 x 16-7/16 in. |
| Net Weight (est.) | 59 lb |
| Refrigerants | R-404A, R-448A, R-449A (HFC) |
| Factory Option Package | B0400: option package B0400 |
Ideal Applications
- Walk-in freezers for restaurants and commercial kitchens
- Convenience store and grocery freezers
- Ice cream and frozen food storage
- School, hospital and institutional frozen storage
Frequently Asked Questions
What refrigerants can the Larkin LEL0100BS6EEAB0400 use?
It is rated for R-404A, R-448A, R-449A. Confirm the refrigerant matches your condensing unit and expansion valve before installation.
Is the LEL0100BS6EEAB0400 for a cooler or a freezer?
It is an electric defrost unit intended for freezers and is dual rated, so it can also be applied to coolers.
What power supply does it need?
The unit is wired for 208/230V 1-Phase 60 Hz. Electric defrost heaters draw significant current, so size the circuit per the nameplate.
What condensing unit should I pair with it?
Match the condensing unit capacity to the evaporator capacity at your design suction temperature, such as a Larkin LCH low temperature condensing unit. HVAC365 can help you size a matched system.
What does the option package include?
Package B0400 is the option package B0400.
