Description
Product Summary

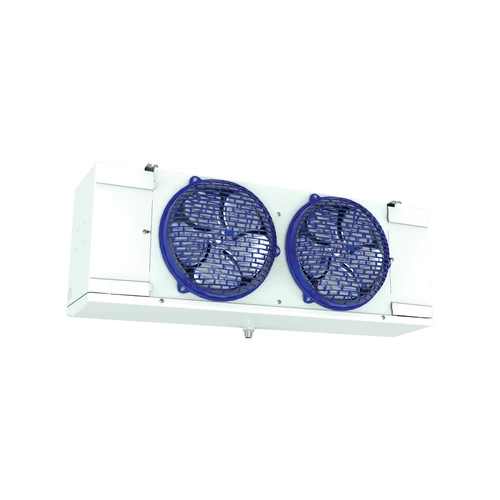

The Larkin LEL0105AS6AMAB0000 is a 10,500 BTU/h nominal low profile walk-in unit cooler from the Larkin LEL series by Heatcraft Refrigeration Products. It is a air defrost model with 2-speed ec motors and a 6 FPI coil, built for walk-in coolers held at 34°F and above.
Published ratings for this size include 12,500 BTU/h on R-448A at 10°F TD / 25°F SST. The unit runs on 115V 1-Phase power, moves 1,305 CFM through 2 fans.
This HFC (S) version is rated for R-404A, R-448A, R-449A and the R-407 series. It ships with the B0000 package: standard base model.
Key Features
- Low Profile Cabinet: about 16-7/16 in. tall housing saves headroom in low-ceiling walk-in boxes
- 2-Speed EC Motor: electronically commutated fan motors cut fan energy versus PSC motors and can run at reduced speed when the system is satisfied
- Air Defrost: off-cycle air defrost for rooms above freezing
- Multi-Refrigerant Ratings: published capacities for R-404A, R-448A, R-449A
- 6 FPI Coil: fin spacing sized for frost-tolerant walk-in operation
- DOE AWEF Compliant Platform: part of the Larkin low profile line documented as meeting DOE minimum AWEF requirements
Specifications
| Model | LEL0105AS6AMAB0000 |
|---|---|
| Brand / Series | Larkin LEL Low Profile Unit Cooler |
| Nominal Capacity | 10,500 BTU/h (model code) |
| Capacity R-404A (10°F TD / 25°F SST) | 9,200 BTU/h |
| Capacity R-448A/R-449A (10°F TD / 25°F SST) | 12,500 BTU/h |
| Defrost | Air Defrost |
| Application | Cooler (medium temperature) |
| Fan Motors | EC 2-Speed |
| Number of Fans | 2 |
| Airflow | 1,305 CFM |
| Fins Per Inch | 6 |
| Fan Motor HP (each) | 1/20 |
| Electrical | 115V 1-Phase 60 Hz |
| Coil Inlet Connection | 1/2 in. OD |
| Suction Connection | 5/8 in. OD |
| Drain Connection | 3/4 MPT in. |
| Dimensions (L x D x H) | 45-1/2 x 13-1/4 x 16-7/16 in. |
| Net Weight (est.) | 52 lb |
| Refrigerants | R-404A, R-448A, R-449A (HFC) |
| Factory Option Package | B0000: standard base model |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery walk-ins
- Floral, produce and beverage coolers
- School, hospital and institutional food storage
Frequently Asked Questions
What refrigerants can the Larkin LEL0105AS6AMAB0000 use?
It is rated for R-404A, R-448A, R-449A. Confirm the refrigerant matches your condensing unit and expansion valve before installation.
Is the LEL0105AS6AMAB0000 for a cooler or a freezer?
It is an air defrost unit for medium temperature coolers (room temperature above freezing).
What power supply does it need?
The unit is wired for 115V 1-Phase 60 Hz.
What condensing unit should I pair with it?
Match the condensing unit capacity to the evaporator capacity at your design suction temperature, such as a Larkin LCH medium temperature condensing unit. HVAC365 can help you size a matched system.
What does the option package include?
Package B0000 is the standard base model.
