Description
Product Summary

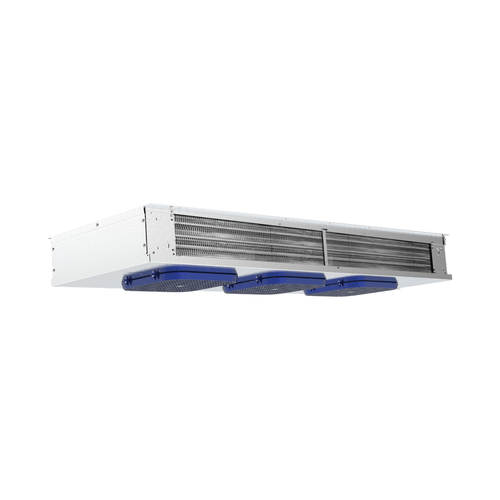

The Larkin LEC0135BS6EMAB0000 is a 13,500 BTU/h nominal center mount unit cooler from the Larkin LEC Center Mount series by Heatcraft Refrigeration Products. It mounts flush to the walk-in ceiling and discharges air in two directions, which suits small boxes where a wall-mounted unit cooler would crowd the door or shelving.
This electric defrost model uses 2-speed ec motors, 3 fans and 1,830 CFM with a 6 FPI coil and a published 15,700 BTU/h R-448A rating (dual-rated). It is wired for 208/230V 1-Phase.
Center mount units are a common choice for convenience store, restaurant and floral walk-ins.
Key Features
- Ceiling Flush Mount: installs tight to the ceiling with bi-directional airflow
- 2-Speed EC Motor: energy-saving EC fan motors with two-speed operation
- Electric Defrost: electric defrost heaters for freezer duty
- 6 FPI Coil: fin spacing matched to the application
- Multi-Refrigerant: rated for R-404A, R-448A, R-449A and R-407 series HFC refrigerants
Specifications
| Model | LEC0135BS6EMAB0000 |
|---|---|
| Brand / Series | Larkin LEC Center Mount |
| Nominal Capacity | 13,500 BTU/h (model code) |
| Published Capacity R-448A (dual-rated unit) | 15,700 BTU/h (Heatcraft model page; verify rating point) |
| Defrost | Electric Defrost |
| Fan Motors | EC 2-Speed |
| Number of Fans | 3 |
| Airflow | 1,830 CFM |
| Fins Per Inch | 6 |
| Defrost Heaters | 3,600 W |
| Electrical | 208/230V 1-Phase 60 Hz |
| Coil Inlet Connection | 3/8 in. OD |
| Suction Connection | 1-1/8 in. OD |
| Drain Connection | 3/4 MPT in. |
| Dimensions (L x D x H) | 75-3/8 x 28-11/16 x 10-9/16 in. |
| Net Weight (est.) | 209 lb |
| Refrigerants | R-404A, R-448A, R-449A and R-407 series (HFC) |
| Factory Option Package | B0000: standard base model |
Ideal Applications
- Walk-in freezers in restaurants and convenience stores
- Frozen food storage
- Small low-ceiling freezer boxes
- Institutional kitchens
Frequently Asked Questions
Where does the Larkin LEC0135BS6EMAB0000 mount?
It mounts in the center of the walk-in ceiling and blows air out of both sides of the unit.
Is it for a cooler or a freezer?
This is an electric defrost model for freezers; electric defrost units are dual rated and can also serve coolers.
What voltage does it require?
It is wired for 208/230V 1-Phase 60 Hz.
Which refrigerants are approved?
R-404A, R-448A, R-449A and R-407 series refrigerants. Confirm the expansion valve matches your refrigerant.
What condensing unit matches it?
Select a condensing unit whose capacity at your design suction temperature matches this evaporator, such as a Larkin LCH unit. HVAC365 can help size the system.
