Description
Product Summary

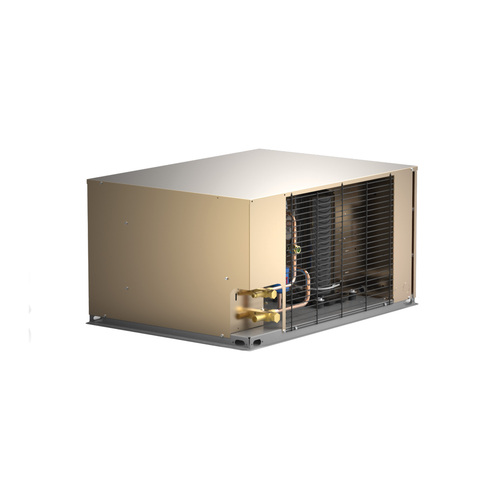

The Larkin LCH0025LCACZA0000 is a 2.5 HP low temp outdoor air-cooled condensing unit from the Larkin LCH 1/2-6 HP horizontal air discharge line by Heatcraft Refrigeration Products. It uses a Copeland ZF08K4E-TF5 scroll compressor and a microchannel condenser coil, and it is wired for 208/230V 3-Phase. It is rated at 8,290 BTU/h on R-448A at 95°F ambient, -20°F SST.
This is the A1 scroll (Z) version for R-448A, R-449A, R-404A and the R-407 series. It ships with the A0000 package: standard base unit (no factory defrost timer package).
The LCH is sized for walk-in freezers in restaurants, convenience stores and institutional kitchens, and pairs with Larkin LEL low profile or LEC center mount unit coolers.
Key Features
- Microchannel Condenser Coil: compact, lower-charge air-cooled coil
- Scroll Compressor: Copeland ZF08K4E-TF5
- Service-Friendly Cabinet: painted steel cabinet on a heavy-duty raised steel base with a hinged, removable electrical box door
- Factory Controls: fixed head pressure valve, adjustable low pressure and fixed high pressure controls (auto reset)
- Refrigeration Circuit: receiver with fusible plug, sealed liquid line drier and sight glass, liquid and suction base valves
- Factory Tested: helium leak test, bump test and cycling on pressure controls with run data shipped in the panel
Specifications
| Model | LCH0025LCACZA0000 |
|---|---|
| Brand / Series | Larkin LCH 1/2-6 HP Outdoor Air-Cooled Condensing Unit |
| Horsepower Class | 2.5 HP (model code 0025) |
| Temperature Application | Low Temp |
| Compressor | Copeland ZF08K4E-TF5 scroll |
| Capacity R-404A (95°F ambient, -20°F SST) | 9,690 BTU/h |
| Capacity R-448A (95°F ambient, -20°F SST) | 8,290 BTU/h |
| Electrical | 208/230V 3-Phase 60 Hz |
| Minimum Circuit Ampacity (MCA) | 28.8 A |
| Maximum Overcurrent Protection (MOPD) | 30 A |
| Liquid / Suction Connections | 1/2 in. / 7/8 in. |
| Dimensions (D x W x H) | 28-1/4 x 39-1/8 x 19-3/4 in. |
| Net Weight | 230 lb |
| Condenser Coil | Microchannel, air-cooled |
| Refrigerants | R-404A, R-448A, R-449A plus R-407A/R-407C (A1) |
| Factory Option Package | A0000: standard base unit (no factory defrost timer package) |
Ideal Applications
- Walk-in freezers for restaurants and commercial kitchens
- Convenience store and grocery freezers
- Ice cream and frozen food storage
- Schools and institutional food service
Frequently Asked Questions
What refrigerant does the Larkin LCH0025LCACZA0000 use?
It is rated for R-404A, R-448A, R-449A and the R-407 series.
Is it for a cooler or a freezer?
It is a low temp unit, intended for walk-in freezers.
What power supply is required?
208/230V 3-Phase 60 Hz. MCA is 28.8 A and maximum overcurrent protection is 30 A for the base unit.
What is included in the option package?
Package A0000: standard base unit (no factory defrost timer package).
Which evaporator matches this condensing unit?
Choose a unit cooler whose capacity at your box temperature and design suction matches this unit, such as a Larkin LEL low profile model. HVAC365 can help size a matched system.
